MX-M700N TRAY PAPER FEED SECTION F – 14

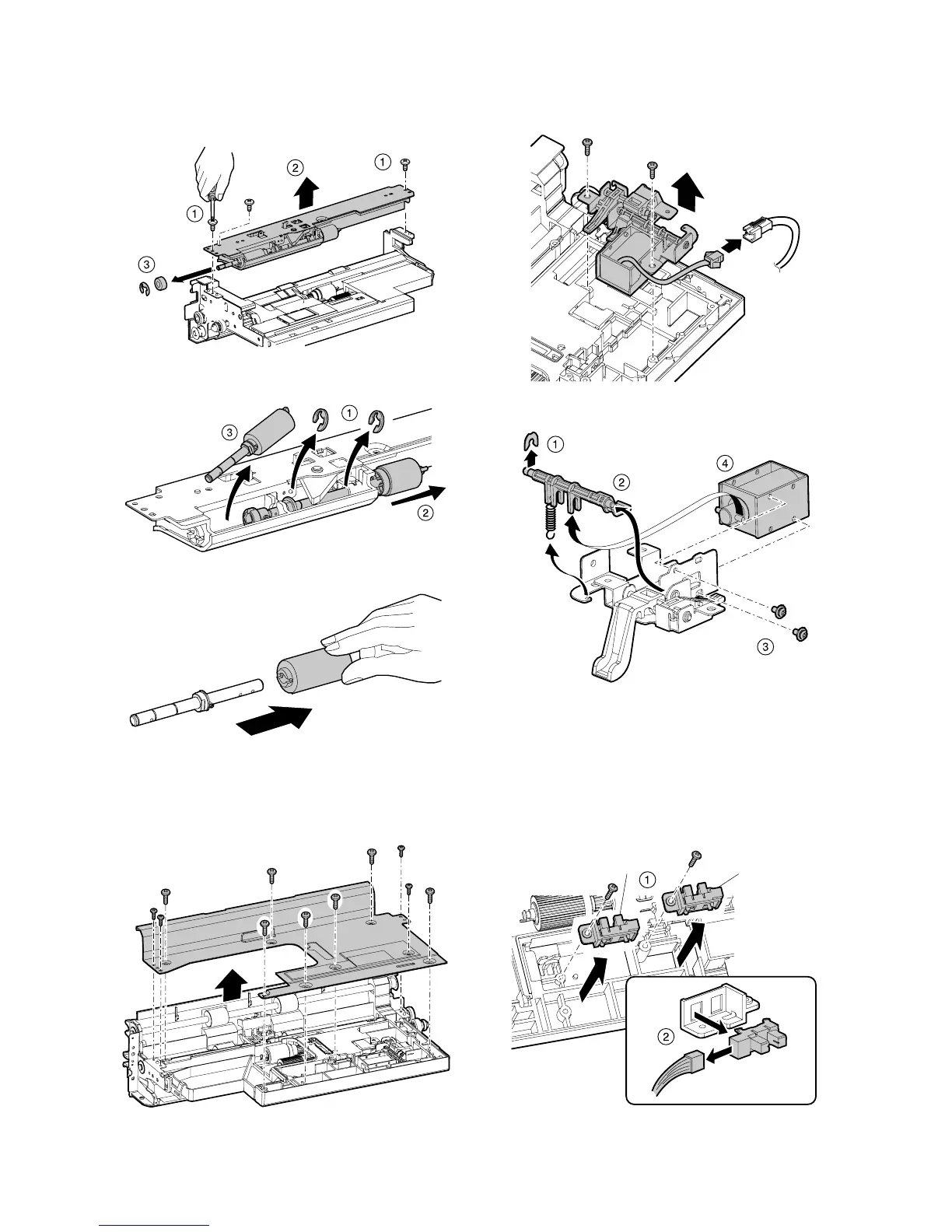

4) Remove the separation roller unit.
5) Remove the E-ring, and one-way clutch.
6) Remove the E-ring, and move the separation roller shaft.
7) Remove the shaft unit.
8) Remove the torque limiter.
e. Paper pickup solenoid
1) Remove the paper feed tray 3, 4.
(See “(1)Paper feed unit (Paper feed tray 3, 4)”)
2) Remove the cover.
3) Remove the solenoid unit.
4) Remove the paper pickup solenoid.
f. Paper feed tray upper limit detector
g. Paper feed tray empty detector
1) Remove the paper feed tray 3, 4.
(See “(1)Paper feed unit (Paper feed tray 3, 4)”)
2) Remove the cover. (See “e. Paper pickup solenoid”)
3) Remove the paper feed tray upper detector unit (a) and the
paper feed tray empty detector unit (b).
4) Remove the detector.
a
b
