Sharp MX-M620N

MX-M700N DSPF SECTION C – 18

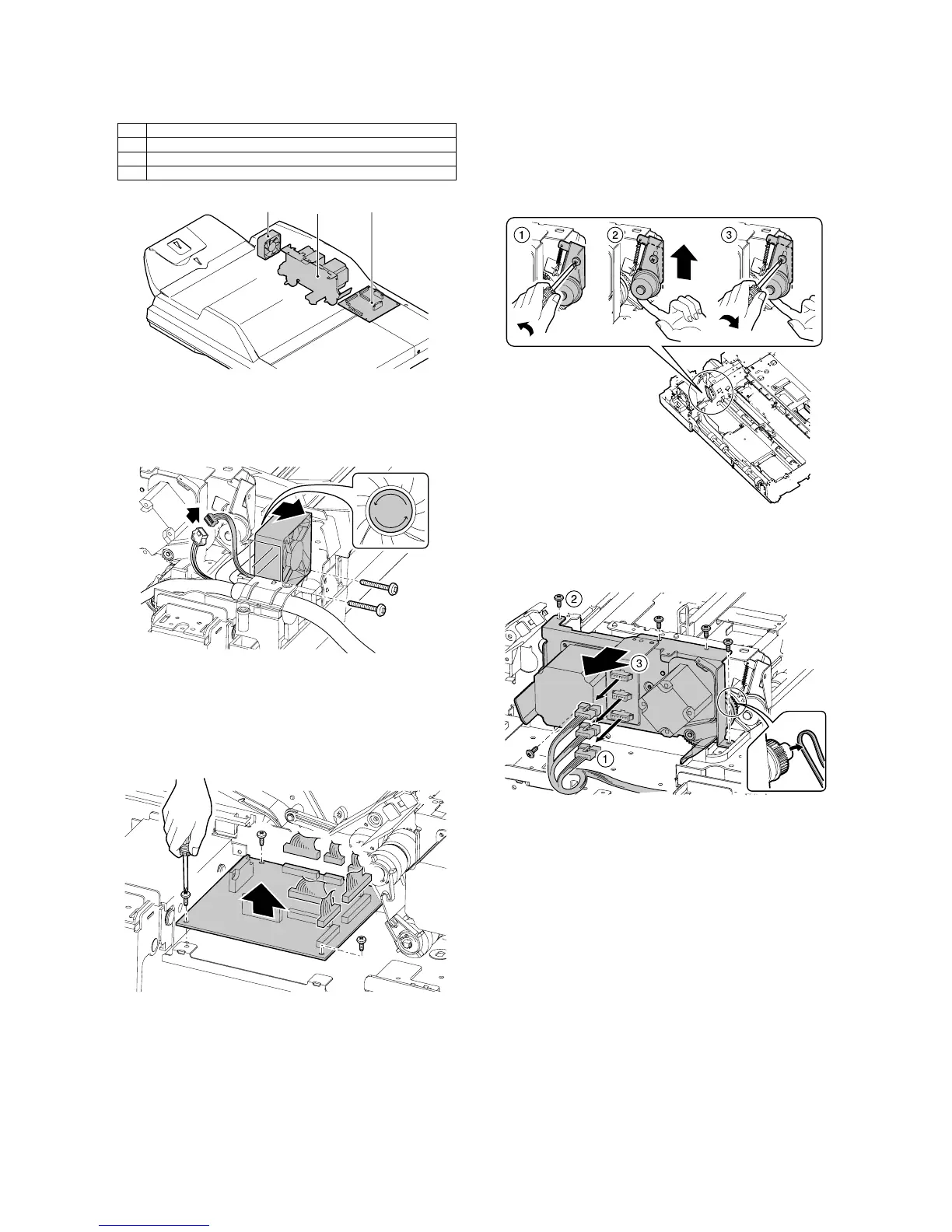

F. Oth e r s
(1) DSPF fan motor
1) Remove the rear cover. (See “A-(1)-a. Cabinet”)
2) Disconnect the connecter, and remove the DSPF fan motor.
(2) DSPF PWB
1) Remove the rear cover.
(See “A-(1)-a. Cabinet”)
2) Disconnect the connecter, and remove the DSPF PWB.
(3) Drive unit
1) Remove the rear cover. (See “A-(1)-a. Cabinet”)
2) Remove the electromagnetic clutch.
3) Loosen the screw, and lift the belt tension roller, and fix them
with the screws.
* When fixing, apply a tension to the spring.
4) Remove the drive unit.
No. Parts
(1) DSPF fan motor
(2) DSPF PWB
(3) Drive unit
(1) (2)
(3)
REVERSE
