MX-M700N TRAY PAPER FEED SECTION F – 11
(2) Others

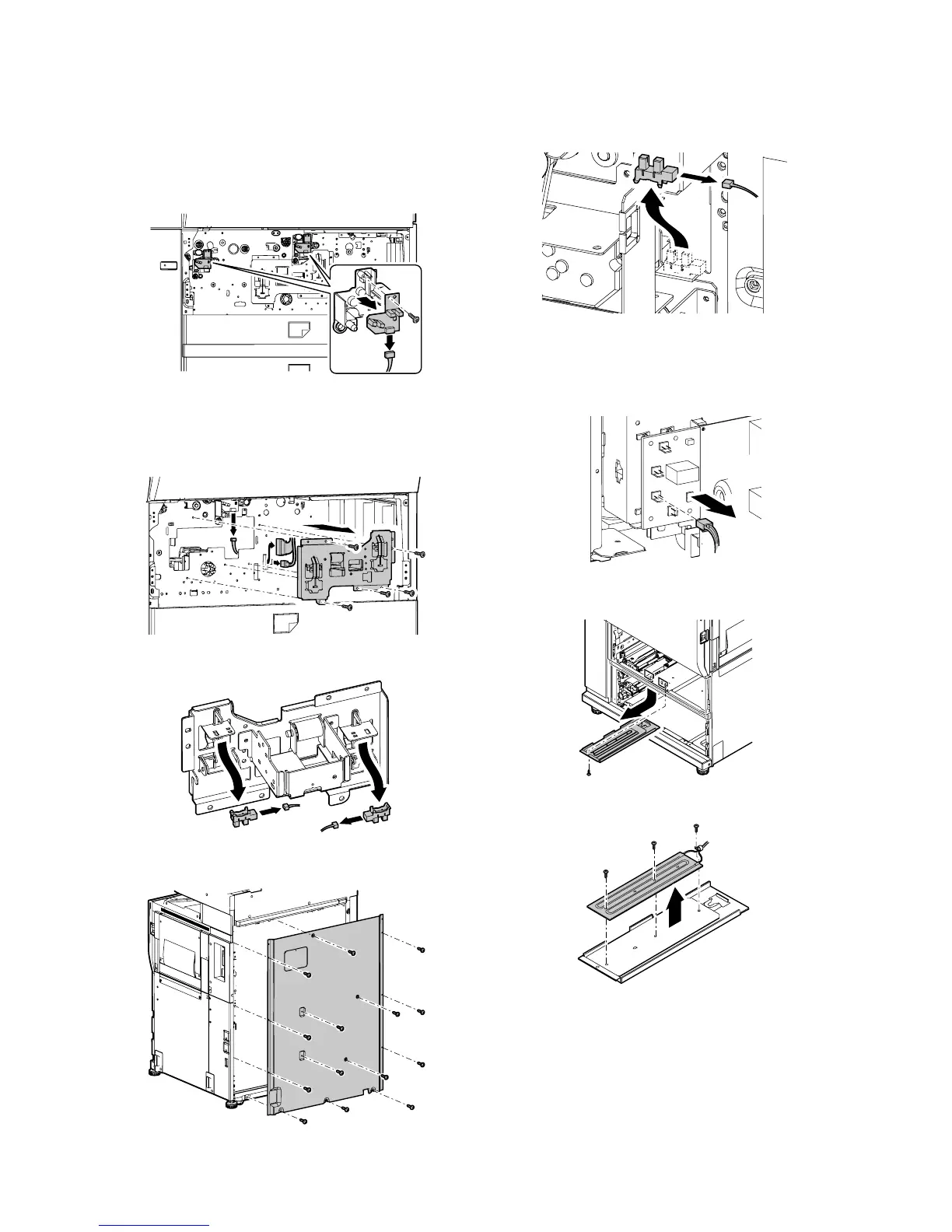

a. Paper remaining quantity sensor PWB
1) Remove the paper feed tray units 1, 2.
(See “(1) Paper feed unit (Paper feed tray 1, 2)”)
2) Disconnect the connector, and remove the paper remaining
quantity sensor PWB.
b. Paper remaining quantity detector
1) Remove the paper feed tray units 1, 2. (See “(1) Paper feed
unit (Paper feed tray 1, 2)”)
2) Disconnect the connecter, and remove the paper feed tray lock
arm unit.
3) Disconnect the connecter, and remove the paper remaining
quantity detector.
c. Paper feed tray 1, 2 detection sensor
1) Remove the rear cabinet.
2) Disconnect the connecter, and remove the Paper feed trays 1,
2 detection sensor.
d. Dry heater
1) Remove the rear cabinet.
(See “c. Paper feed trays 1, 2 sensor”)
2) Disconnect the connector from dehumidifier heater relay PWB.
3) Remove the band, and remove the dry heater unit.
4) Remove the dry heater.
