MX-M700N TRAY PAPER FEED SECTION F – 12

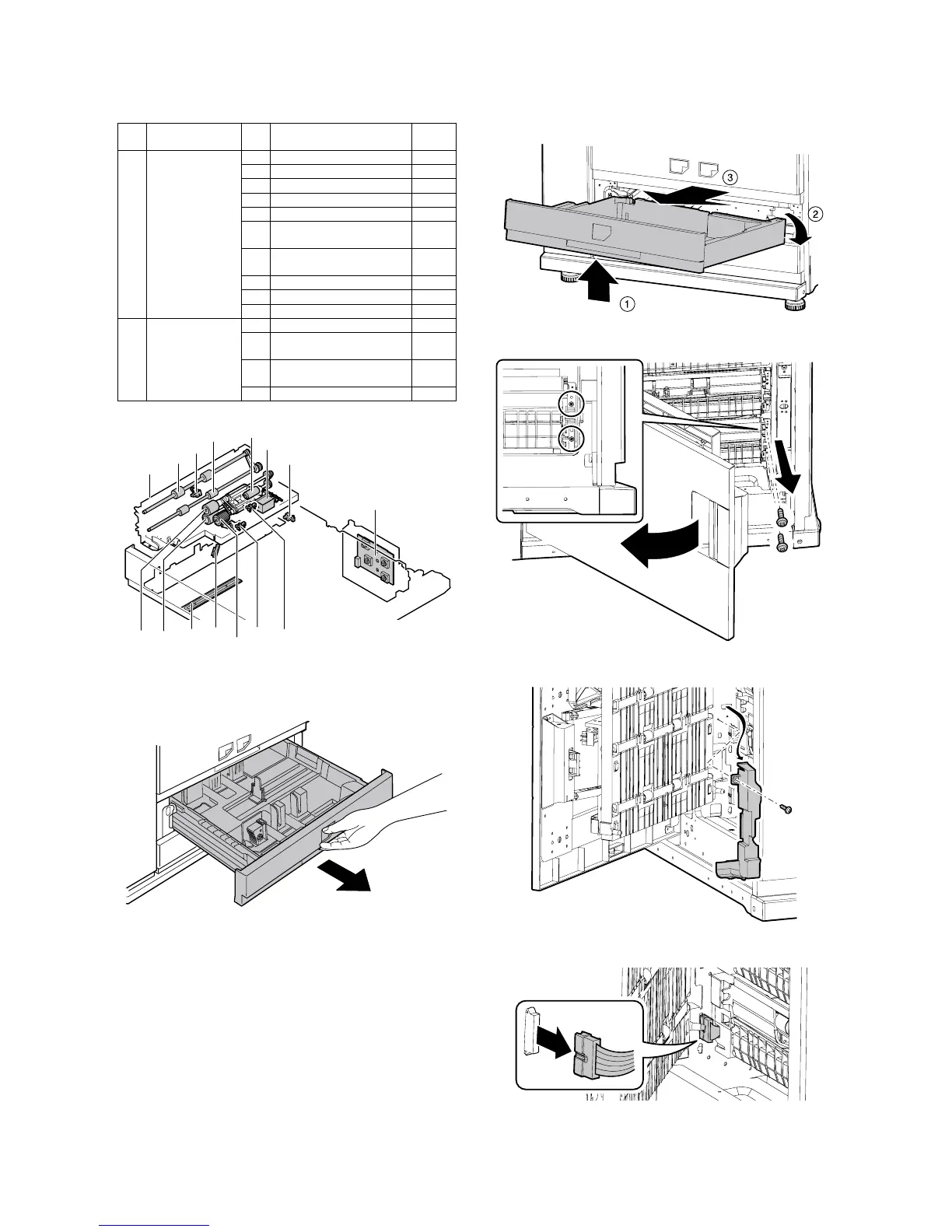

B. Paper feed tray 3, 4 section
(1) Paper feed unit (Paper feed tray 3, 4)
1) Pull out gently the paper feed tray it stops.
2) Lifting up the paper feed tray unit slightly, remove it at an angle
from the right side.
3) Open the bottom left cabinet.
4) Remove the connector cover.
5) Disconnect the connectors.
No. Unit No. Parts
Mainte
nance
(1) Paper feed unit
(Paper feed tray
3, 4)
a Pickup roller ✕ {
b Paper feed roller ✕ {
c Separation roller ✕ {
d Torque limiter ✕
e Paper pickup solenoid
f Paper feed tray upper limit
detector
g Paper feed tray empty
detector
h transport roller 8, 10 ✕ {
I Transport roller 5, 7 ✕ {
j Paper pass detector
(2) Others a Paper size detection PWB
b Paper remaining quantity
detector
c Paper feed tray paper width
detector
d Dry heater
(1)-i
(1)-d
(1)-e
(1)-j
(1)-h
(1)
(2)-c
(2)-b
(2)-d
(2)-a
(1)-g (1)-f
(1)-a
(1)-b (1)-c
