73

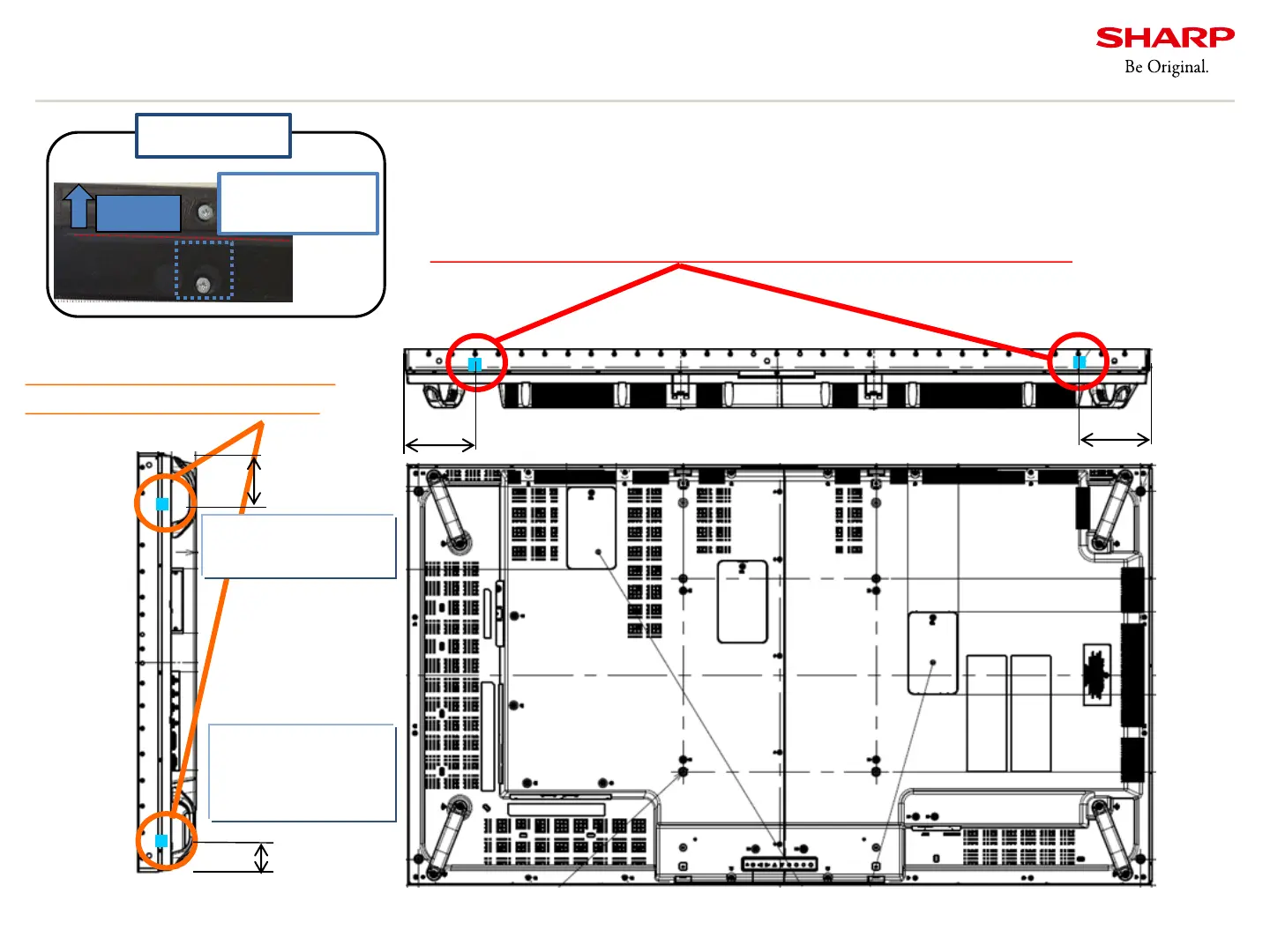

5.5.Installation tool 3（Position of Protecting spacer）
LCD
surface
Do not attach the
spacer over the
difference in level
LCD
Precautions
Approx. 204mm from
the bottom on the rear
side
(The LCD surface is
on the front).
Approx.205mm
Approx. 204mm
●Two points of protecting spacer for horizontal bezels
●Two points of protecting
spacer for vertical bezels
Approx.146mm
Approx.147mm
On the service hall
of the rear. (The LCD
surface is on the front.)
On the service hall
(The LCD surface is the front).
To Next Page
