31
GENERAL INFORMATION
PART NAMES AND FUNCTIONS

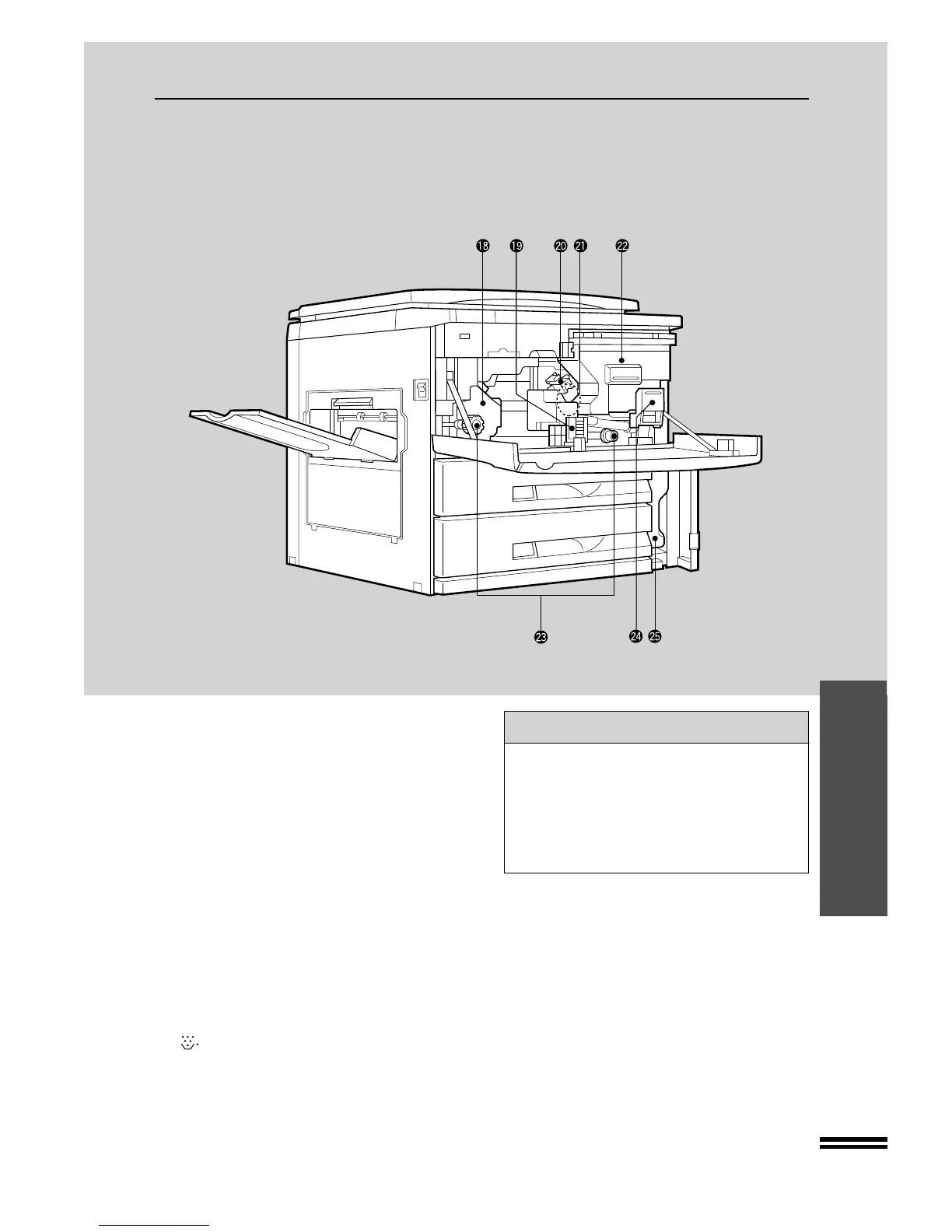

Interior
!8 Fusing unit
The fusing unit is hot. Exercise care in this area.
!9 Transport lever
Turn to open the transport section.
@0 Corona unit
The unit is used to charge the photoconductive
drum.
@1 Photoconductive drum
Copy images are formed on the photoconductive
drum.
@2 Toner hopper
Contains toner.
@3 Roller rotating knobs
Turn to remove misfed paper.
@4 Toner hopper lock lever
Pull down to release the toner hopper.
@5 Toner collecting container
Used toner is collected here. Replace when the
indicator blinks.
Accessories
Inner cassette
(installed in the lower paper tray)................... 1
Exit tray ..........................................................1
Operation manual ..........................................1
Document tray................................................1
Toner collecting containers
(including 1 pre-installed at the factory) .........4
Part names and functions
GENERAL INFORMATION
