ADF (SF-A17)/RADF (SF-A56)
OPTIONAL EQUIPMENT
ADF (SF-A17)/RADF (SF-A56)
Misfeed removal
Location C
Location B
Location A

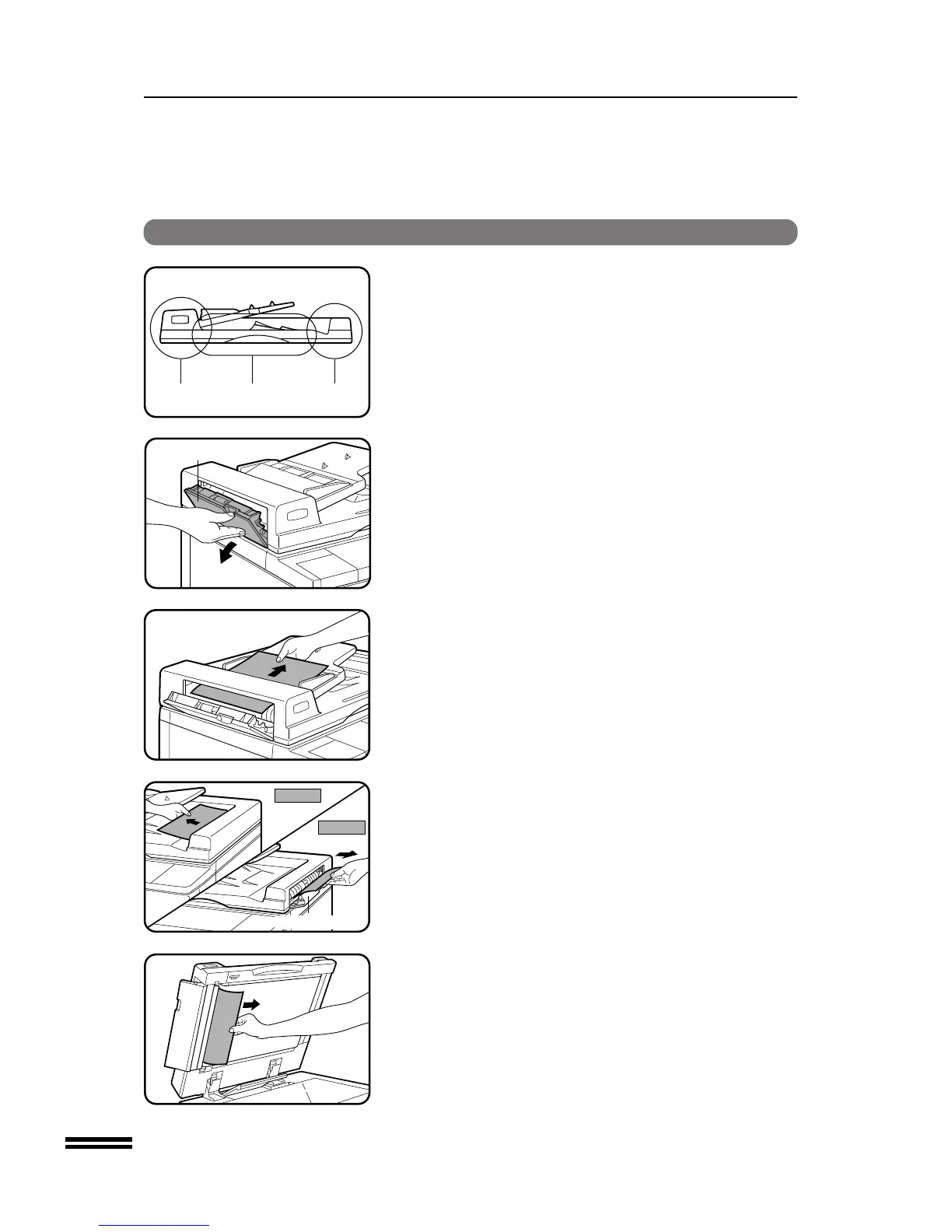

An original misfeed may occur at one of three locations:
(A) in the feed section, (B) in the exit roller, or (C) under
the transport belt.
(A) Open the feeding roller cover and pull the original gently
to the right and out from the document feeder tray.
●
Be sure to open and close the document feeder cover to cancel
the misfeed location indicator.
(B) SF-A17: Gently pull the original out.
SF-A56: Open the exit roller cover and gently pull the
original out.
●
Be sure to open and close the document feeder cover to cancel
the misfeed location indicator.
(C) Open the feeding roller cover, open the document feeder
cover, and remove the original.
NOTE:
After misfed originals are removed from locations A, B, and/or C,
a number may appear in the copy quantity display, indicating the
number of originals which must be returned to the document feeder
tray. Return the originals and press the START key to resume
copying.
AC B
Feeding roller cover
Exit roller cover
SF-A17
SF-A56
