Sharp XV-Z2000 Service Manual

19
XV-Z2000
DT-400

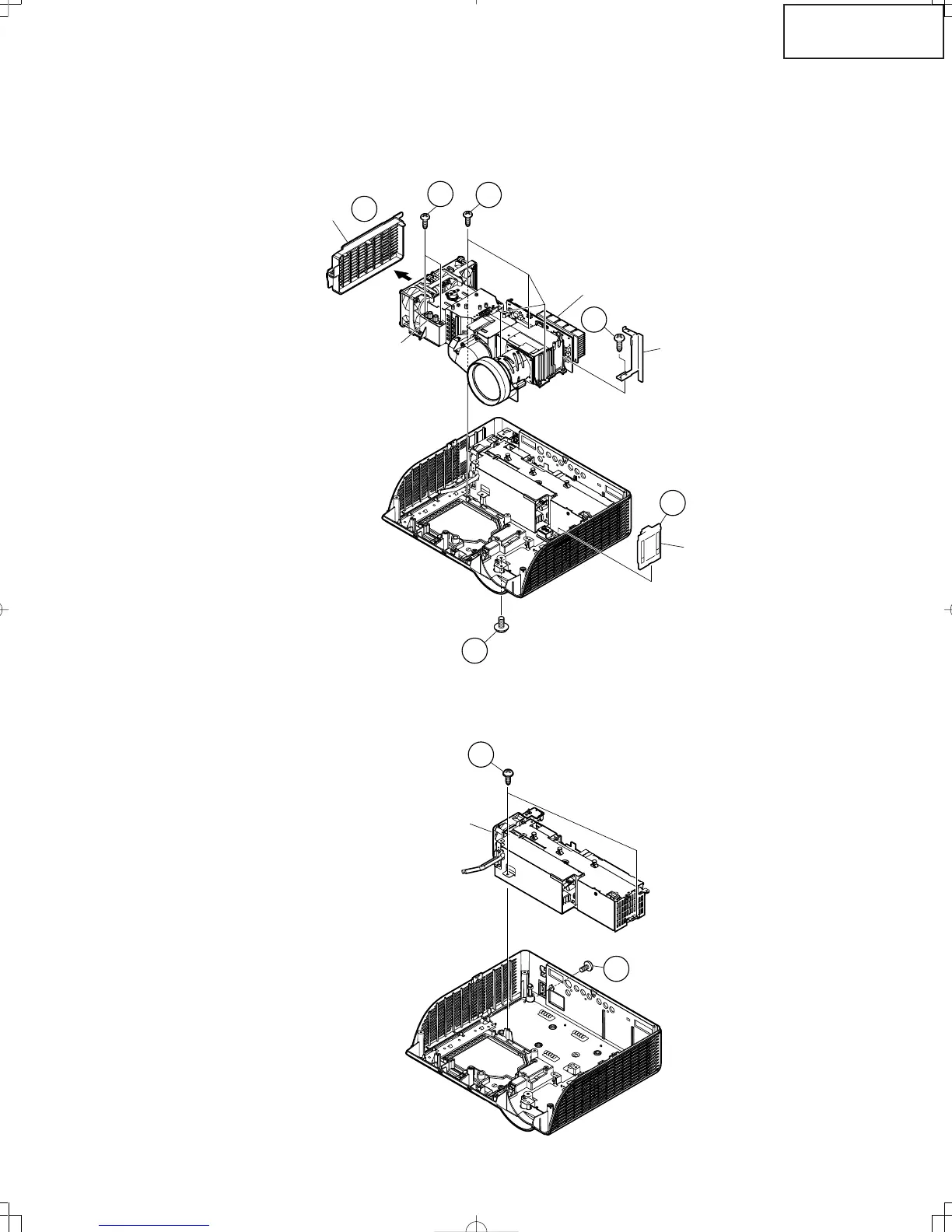

6. Removing the power/ballast unit
6-1. Remove 3 fixing screws for the power/ballast unit.
Power/Ballast Unit
6-1
6-1
5. Removing the optical mechanism unit
5-1. Remove the fixing screw from the PWB bracket.
5-2. Remove 2 fixing screws for the ballast output socket, and remove the ballast output socket.
5-3. Remove 5 fixing screws for the optical mechanism unit, and remove the optical mechanism unit.
5-4. Remove the duct, pulling up the optical mechanism unit.
5-5. Remove the speaker cover.
Duct
Optical Mechanism Unit
5-3
5-3
5-2
5-4
Ballast Output Socket
5-1
PWB Bracket
Speaker Cover
5-5

Sharp XV-Z2000 Specifications

General

Projection distance	2.6 - 3.9 m
Contrast ratio (typical)	2500:1
Screen size compatibility	40 - 200 \
Projector native resolution	SXGA (1280x1024)
Lamp type	SHP
Lamp power	275 W
Light source type	Lamp
Service life of light source	3000 h
Video in	XGA, Mac 19” (in intelligent compression), SVGA/VGA, Mac 16”/13”
I/O ports	2x component, 1x RCA video, 1x S-video, DVI-I (analogue component, digital & analogue RGB) x 1
Dimensions (WxDxH)	310 x 287 x 104 mm
Power requirements	100-240V AC, 50/60Hz
Power consumption (typical)	360 W
Market positioning	Home cinema

Weight and Dimensions

Weight	4300 g
