3. About the Device
The Device is a small form factor smart switch with potential-free contacts (dry contact). It
controls the on/off function for one electrical appliance (with a load of up to 8 A AC or 5 A DC),
such as a bulb, ceiling fan, IR heater, electrical lock, garage doors, irrigation system. It is
compatible with switches (default) and push-buttons.
SW1: If the SW (SW1) is configured as a switch (default), each toggle of the switch will change
the output O (O1) state to the opposite state - on, off, on, etc. If the SW (SW1) is configured as
a push-button in the Device settings, each press of the push-button will change the output O
(O1) state to the opposite state - on, off, on, etc.

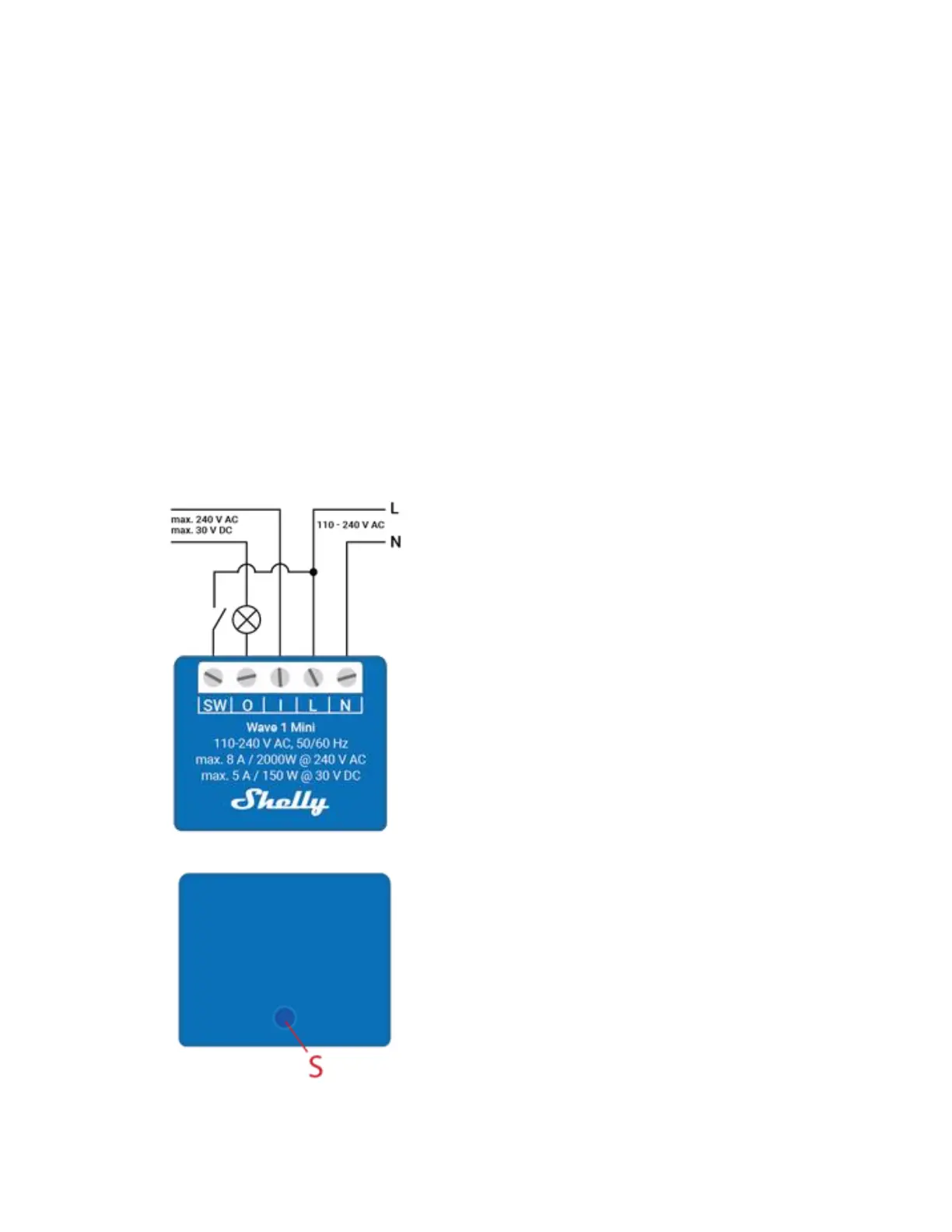

4. Electrical diagrams 110-240 V AC
Connecting to the power grid with power supply 110-240 V AC (Fig. 1).
Fig.1
Fig. 2
