Sherwood RD-6502 User Manual

13
Operations
ENGLISH

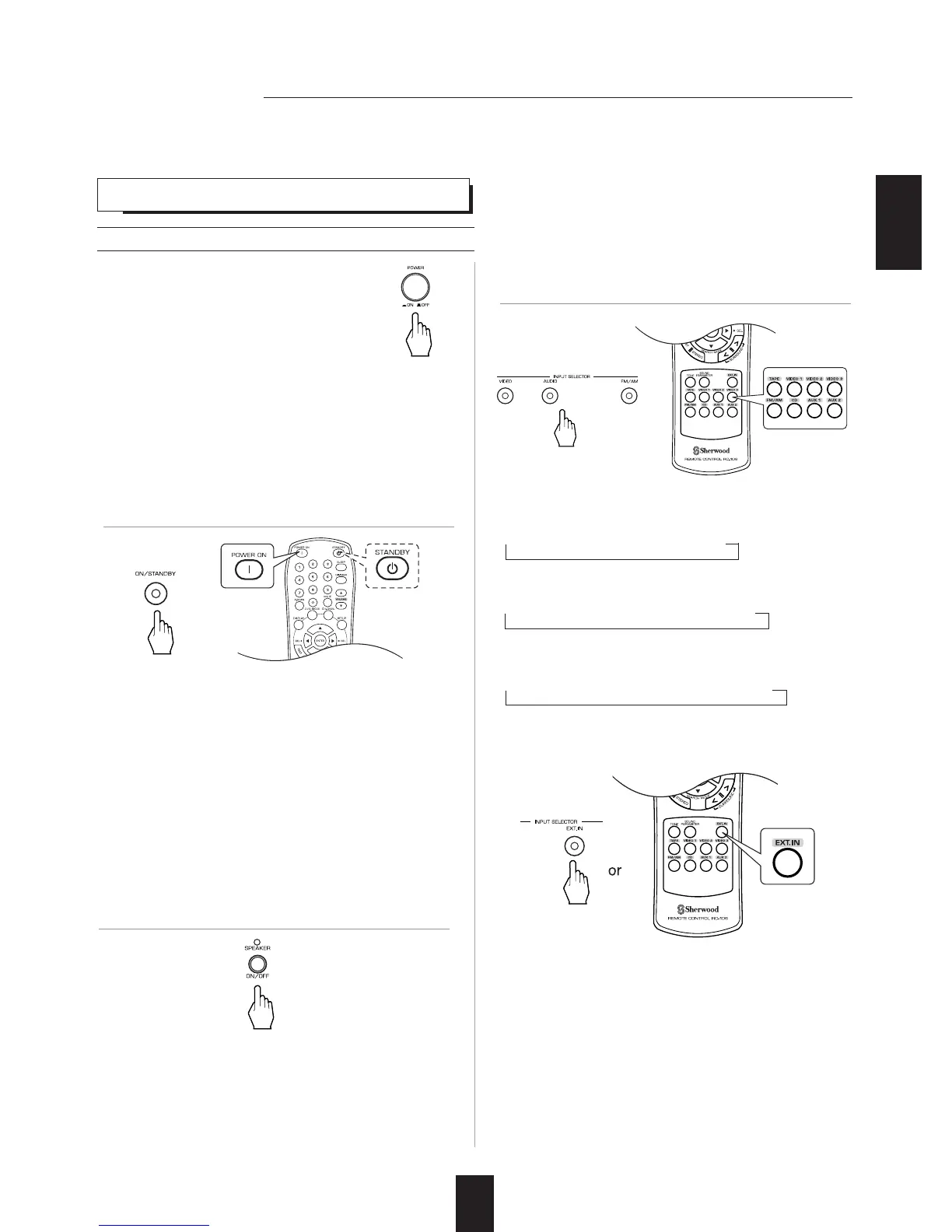

LISTENING TO A PROGRAM SOURCE
Before operation
• Enter the standby mode.
• The POWER ON/STANDBY button
lights up.
This means that the receiver is not
disconnected from the AC mains and
a small amount of current is retained to support the
operation readiness.
• To switch the power off, push the POWER switch
again.
• Then the power is cut off and the POWER ON/
STANDBY button goes off.
• Each time the POWER ON/STANDBY button on the
front panel is pressed, the receiver is turned on to
enter the operating mode or off to enter the standby
mode.
• On the remote control, press the POWER ON
button to enter the operating mode or press the
STANDBY button to enter the standby mode.
• In the standby mode, if the INPUT SELECTOR
button is pressed, the receiver is turned on
automatically and the desired input is selected.
• Then the SPEAKER indicator lights up and the
sound can be heard from the speakers connected
to the speaker terminals.
• When using the headphone for private listening,
press the SPEAKER button again to switch the
speakers off.
• Each time the “VIDEO” button on the front panel is
pressed, the input source changes as follows:
 VIDEO 1  VIDEO 2  VIDEO 3
• Each time the “AUDIO” button on the front panel is
pressed, the input source changes as follows:
 CD  AUX1  AUX 2  TAPE
• Each time the “FM/AM” button is pressed, the band
changes as follows:
 FM ST  FM MONO  AM MONO

When selecting the EXTERNAL IN as desired,
• "EXT IN" is displayed and 6 separate analog
signals from the component connected to this input
pass through the tone and volume circuits only and
can be heard from your speakers.
• Select the desired input source to cancel the
external in function.
• These analog signals can be heard only, not
recorded.
or
or
POWER
1. In the standby mode, turn the power on.
2
. Switch the speakers on.
3. Select the desired input source.

Note :
• Before operating this receiver, first set this unit as desired for optimum performance, doing the system setup
precedures. (For details, refer to "System Setup" on page 29.)

Sherwood RD-6502 Specifications

Amplifier Section

power output in stereo mode	2×100 W
total harmonic distortion	0.09 %
intermodulation distortion	0.1 %
input sensitivity	280 mV
signal to noise ratio	92 dB
frequency response	+0 dB, -3 dB
output level TAPE REC	280 mV
output level PRE OUT (Subwoofer)	1.0 V
bass/treble control	±10 dB
surround mode front power output	125 W / 125 W
surround mode center power output	125 W
surround mode surround power output	125 W / 125 W

Digital Audio Section

sampling frequency	32, 44.1, 48, 96 kHz
digital input level coaxial	0.5 Vp-p
digital input level optical	-15~-21 dBm

Video Section

video format	PAL
input sensitivity (output level) video	1 Vp-p

FM Tuner Section

tuning frequency range	87.5~108 MHz
usable sensitivity	12.8 dBf
46 dB quieting sensitivity mono/stereo	20.2 / 45.3 dBf
signal to noise ratio mono/stereo	55 / 50 dB
total harmonic distortion mono/stereo	0.5 / 1.0 %
frequency response	±3.0 dB
stereo separation	30 dB
capture ratio	4 dB
IF rejection ratio	80 dB

AM Tuner Section

tuning frequency range	522~1611 kHz
usable sensitivity	500 µV/m
signal to noise ratio	40 dB
selectivity	25 dB

General

power supply	230 V ~ 50 Hz
power consumption	330 W
switched AC outlet	Total 100 W (0.43A) max.
dimensions	440×141×365 mm (17-3/8×5-1/2×14-3/8 inches)
weight	9.5 kg (20.9 lbs)
