Sherwood RD-6502 User Manual

System Setup
29
• The setup menu is displayed on the fluorescent display and allows you to perform the setup procedures easily. In
most situations, you will only need to set this once during the installation and layout of your home theater, and it
rarely needs to be changed later.
The setup menu consists of 5 main menus ; system, input, speaker setup, CH level and parameter. These menus
are then divided up into various sub-menus.

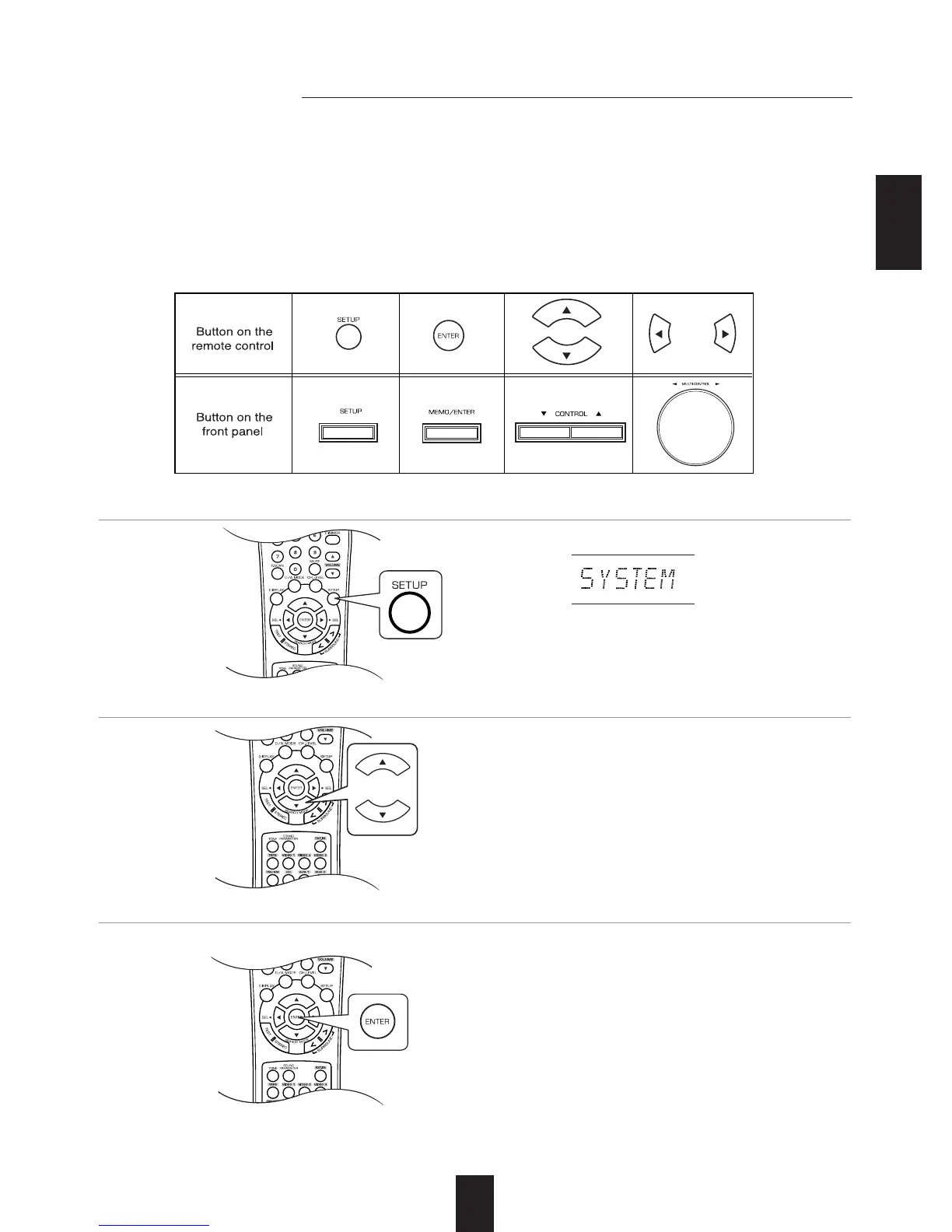

Navigating through the setup menu
• The explanations here assume you are using the buttons on the remote control when performing the setup menu
operation. However, you can use the buttons on the front panel as well.
The buttons on the front panel correspond to those on the remote control as shown below.
• The setup menu will be shown.
• To turn the menu off, press this button again.
• When selecting "SYSTEM", see "SETTING THE
SYSTEM" on page 31.
• When selecting "INPUT", see "SETTING THE
INPUT" on page 32.
• When selecting "SPK SET", see "SETTING THE
SPEAKER SETUP" on page 34.
• When selecting "CH LEVEL", see "SETTING THE
CH LEVEL" on page 38.
• When selecting "PARAMTR", see "SETTING THE
PARAMETER" on page 40.
• When selecting "EXIT", the setup menu will be
turned off.
1. Turn the setup menu on.
3. Confirm your selection.
2
. Select the desired menu using the CURSOR UP()/DOWN() buttons.
ENGLISH

Sherwood RD-6502 Specifications

Amplifier Section

power output in stereo mode	2×100 W
total harmonic distortion	0.09 %
intermodulation distortion	0.1 %
input sensitivity	280 mV
signal to noise ratio	92 dB
frequency response	+0 dB, -3 dB
output level TAPE REC	280 mV
output level PRE OUT (Subwoofer)	1.0 V
bass/treble control	±10 dB
surround mode front power output	125 W / 125 W
surround mode center power output	125 W
surround mode surround power output	125 W / 125 W

Digital Audio Section

sampling frequency	32, 44.1, 48, 96 kHz
digital input level coaxial	0.5 Vp-p
digital input level optical	-15~-21 dBm

Video Section

video format	PAL
input sensitivity (output level) video	1 Vp-p

FM Tuner Section

tuning frequency range	87.5~108 MHz
usable sensitivity	12.8 dBf
46 dB quieting sensitivity mono/stereo	20.2 / 45.3 dBf
signal to noise ratio mono/stereo	55 / 50 dB
total harmonic distortion mono/stereo	0.5 / 1.0 %
frequency response	±3.0 dB
stereo separation	30 dB
capture ratio	4 dB
IF rejection ratio	80 dB

AM Tuner Section

tuning frequency range	522~1611 kHz
usable sensitivity	500 µV/m
signal to noise ratio	40 dB
selectivity	25 dB

General

power supply	230 V ~ 50 Hz
power consumption	330 W
switched AC outlet	Total 100 W (0.43A) max.
dimensions	440×141×365 mm (17-3/8×5-1/2×14-3/8 inches)
weight	9.5 kg (20.9 lbs)
