Sherwood RD-6502 User Manual

ENGLISH
3
CONTENTS
ACCESSORIES
Introduction
• READ THIS BEFORE OPERATING YOUR UNIT ................................................................................................................. 2
• ACCESSORIES .................................................................................................................................................................... 3
System Connections ......................................................................................................................................................... 4
Front Panel Controls ......................................................................................................................................................... 9
Remote Controls ............................................................................................................................................................... 11
• REMOTE CONTROL OPERATION RANGE ....................................................................................................................... 12
• LOADING BATTERIES ....................................................................................................................................................... 12
Operations
• LISTENING TO A PROGRAM SOURCE ............................................................................................................................ 13
• SURROUND SOUND .......................................................................................................................................................... 16
• ENJOYING SURROUND SOUND ...................................................................................................................................... 17
• LISTENING TO RADIO BROADCASTS ............................................................................................................................. 22
• LISTENING TO RDS BROADCASTS (FM ONLY) .............................................................................................................. 24
( RDS Tuner (Regional Option for some countries in Europe, etc))
• RECORDING ....................................................................................................................................................................... 26
• OTHER FUNCTIONS .......................................................................................................................................................... 28
System Setup ..................................................................................................................................................................... 29
• SETTING THE SYSTEM .................................................................................................................................................... 31
• SETTING THE INPUT ......................................................................................................................................................... 32
• SETTING THE SPEAKER SETUP ...................................................................................................................................... 34
• SETTING THE CH LEVEL .................................................................................................................................................. 38
• SETTING THE PARAMETER ............................................................................................................................................. 40
Troubleshooting Guide ................................................................................................................................................... 42
Specifications ................................................................................................................................................................... 43

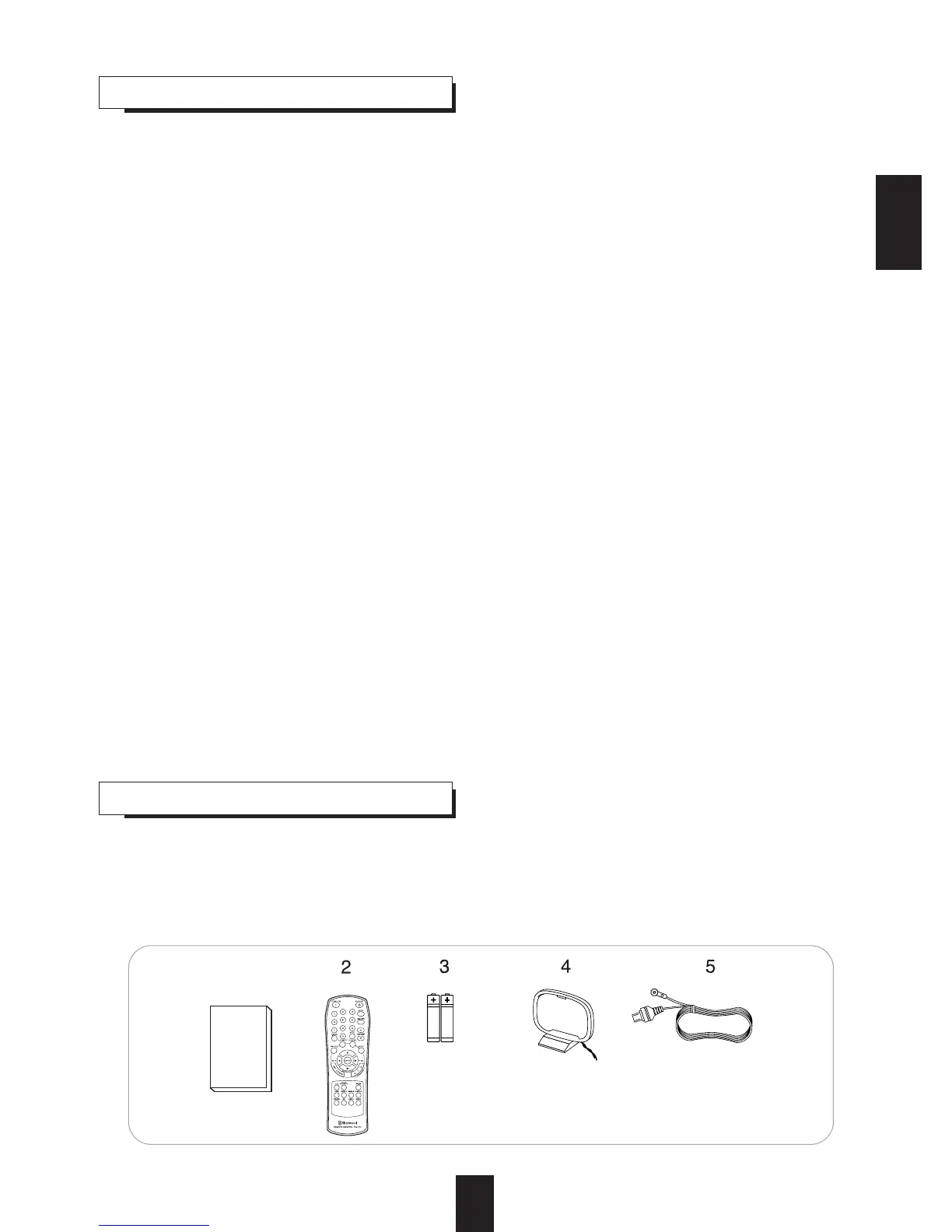

• 1. Operating Instructions .................................................................................................................................................. 1 ea
• 2. Remote Control unit ...................................................................................................................................................... 1 ea
• 3. Batteries (AAA) ............................................................................................................................................................. 2 ea
• 4. AM Loop Antenna ......................................................................................................................................................... 1 ea
• 5. FM Indoor Antenna ...................................................................................................................................................... 1 ea
1

Sherwood RD-6502 Specifications

Amplifier Section

power output in stereo mode	2×100 W
total harmonic distortion	0.09 %
intermodulation distortion	0.1 %
input sensitivity	280 mV
signal to noise ratio	92 dB
frequency response	+0 dB, -3 dB
output level TAPE REC	280 mV
output level PRE OUT (Subwoofer)	1.0 V
bass/treble control	±10 dB
surround mode front power output	125 W / 125 W
surround mode center power output	125 W
surround mode surround power output	125 W / 125 W

Digital Audio Section

sampling frequency	32, 44.1, 48, 96 kHz
digital input level coaxial	0.5 Vp-p
digital input level optical	-15~-21 dBm

Video Section

video format	PAL
input sensitivity (output level) video	1 Vp-p

FM Tuner Section

tuning frequency range	87.5~108 MHz
usable sensitivity	12.8 dBf
46 dB quieting sensitivity mono/stereo	20.2 / 45.3 dBf
signal to noise ratio mono/stereo	55 / 50 dB
total harmonic distortion mono/stereo	0.5 / 1.0 %
frequency response	±3.0 dB
stereo separation	30 dB
capture ratio	4 dB
IF rejection ratio	80 dB

AM Tuner Section

tuning frequency range	522~1611 kHz
usable sensitivity	500 µV/m
signal to noise ratio	40 dB
selectivity	25 dB

General

power supply	230 V ~ 50 Hz
power consumption	330 W
switched AC outlet	Total 100 W (0.43A) max.
dimensions	440×141×365 mm (17-3/8×5-1/2×14-3/8 inches)
weight	9.5 kg (20.9 lbs)
