Sherwood RD-6502 User Manual

ENGLISH
7
ENGLISH

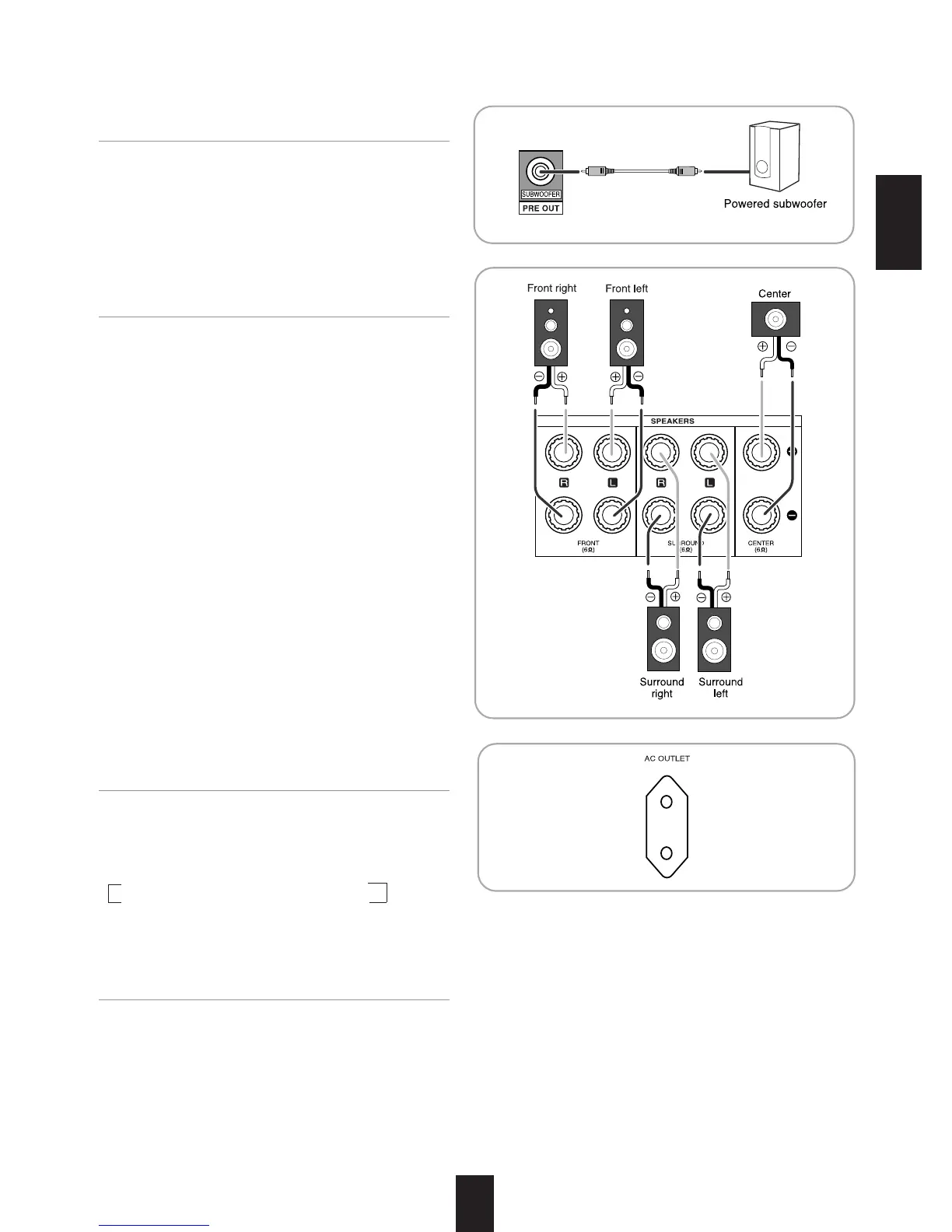

7. CONNECTING SUBWOOFER PRE OUT
• To emphasize the deep bass sounds, connect a powered
subwoofer.
8.
CONNECTING SPEAKERS
• Be sure to connect speakers firmly and correctly
according to the channel(left and right) and the polarity(+
and -). If the connections are faulty, no sound will be
heard from the speakers, and if the polarity of the speaker
connection is incorrect, the sound will be unnatural and
lack bass.
• For installing the speakers, refer to "Speaker placement"
on page 8.
• After installing the speakers, first adjust the speaker
settings according to your environment and speaker
layout.(For details, refer to "SETTING THE SPEAKER
SETUP" on page 34.)
Caution :
• Be sure to use the speakers with the impedance of 6
ohms or above.
• Do not let the bare speaker wires touch each other or any
metal part of this unit. This could damage this unit and/or
the speakers.
9. SWITCHED AC OUTLET
• This outlet is switched on (power-on mode) and off
(standby mode) according to power control as follows
(Maximum total capacity is 100 W (0.43A)).
Standby mode - Switched AC outlet off
Power-on mode - Switched AC outlet on
10
.
AC INPUT CORD
• Plug the cord into a wall AC outlet.

Sherwood RD-6502 Specifications

Amplifier Section

power output in stereo mode	2×100 W
total harmonic distortion	0.09 %
intermodulation distortion	0.1 %
input sensitivity	280 mV
signal to noise ratio	92 dB
frequency response	+0 dB, -3 dB
output level TAPE REC	280 mV
output level PRE OUT (Subwoofer)	1.0 V
bass/treble control	±10 dB
surround mode front power output	125 W / 125 W
surround mode center power output	125 W
surround mode surround power output	125 W / 125 W

Digital Audio Section

sampling frequency	32, 44.1, 48, 96 kHz
digital input level coaxial	0.5 Vp-p
digital input level optical	-15~-21 dBm

Video Section

video format	PAL
input sensitivity (output level) video	1 Vp-p

FM Tuner Section

tuning frequency range	87.5~108 MHz
usable sensitivity	12.8 dBf
46 dB quieting sensitivity mono/stereo	20.2 / 45.3 dBf
signal to noise ratio mono/stereo	55 / 50 dB
total harmonic distortion mono/stereo	0.5 / 1.0 %
frequency response	±3.0 dB
stereo separation	30 dB
capture ratio	4 dB
IF rejection ratio	80 dB

AM Tuner Section

tuning frequency range	522~1611 kHz
usable sensitivity	500 µV/m
signal to noise ratio	40 dB
selectivity	25 dB

General

power supply	230 V ~ 50 Hz
power consumption	330 W
switched AC outlet	Total 100 W (0.43A) max.
dimensions	440×141×365 mm (17-3/8×5-1/2×14-3/8 inches)
weight	9.5 kg (20.9 lbs)
