Overview 2
Shield Fire, Safety and Security Ltd.
Shield A-XT Releasing Fire Control Panel - Installation and Operation Manual SEXTCP-OM
Revision E01.00
14 of 127
Central Indicators

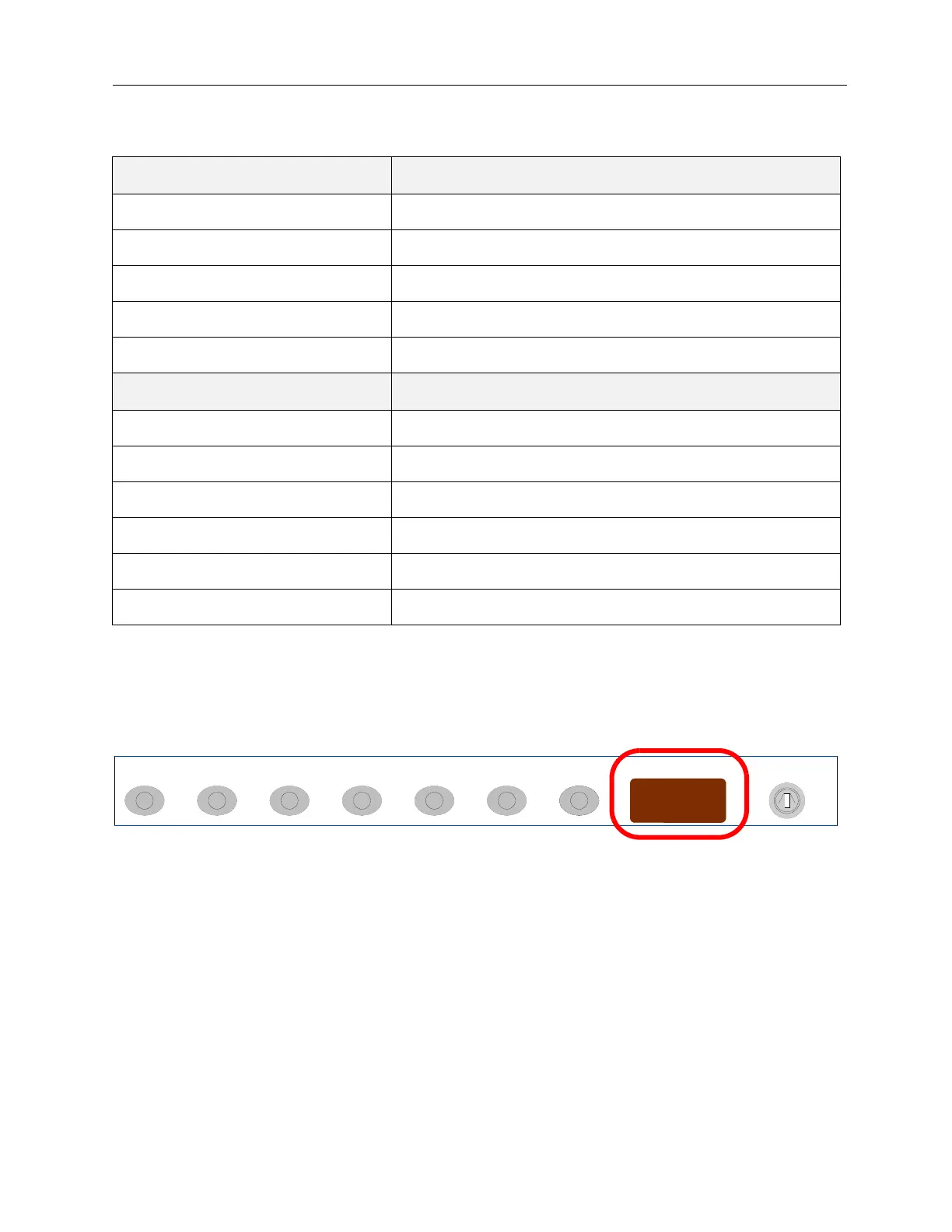

The figure below illustrates the central indicator of the Shield A-XT Releasing Fire Control Panel:
Figure 2-8
Central Indicators
The central indicator is the System Mode display of the Shield A-XT Releasing Fire Control Panel. The System
Mode display contains three seven segment LEDs. Use this indicator to identify status conditions and to program
configurations on the fire control panel.
Disablements / Supervisory LED Color
Extinguishant Yell ow
Manual Release Yell ow
1st Stage Output Yell ow
2nd Stage Output Yell ow
Extract Fan On Yell ow
Releasing Status LED Color
Extinguishant Released Red
Release Imminent Red
1st Stage Activated Red
Abort Activated Yell ow
Releasing Trouble Yell ow
Low Pressure Yellow
(+1)(+10)
Enter System ModeSelectModeReset Lamp Test
(+100)
Silence/Sound
Alarm
Silence
Buzzer
Enable Access
