- 16 -
(3) Setting Time Signal

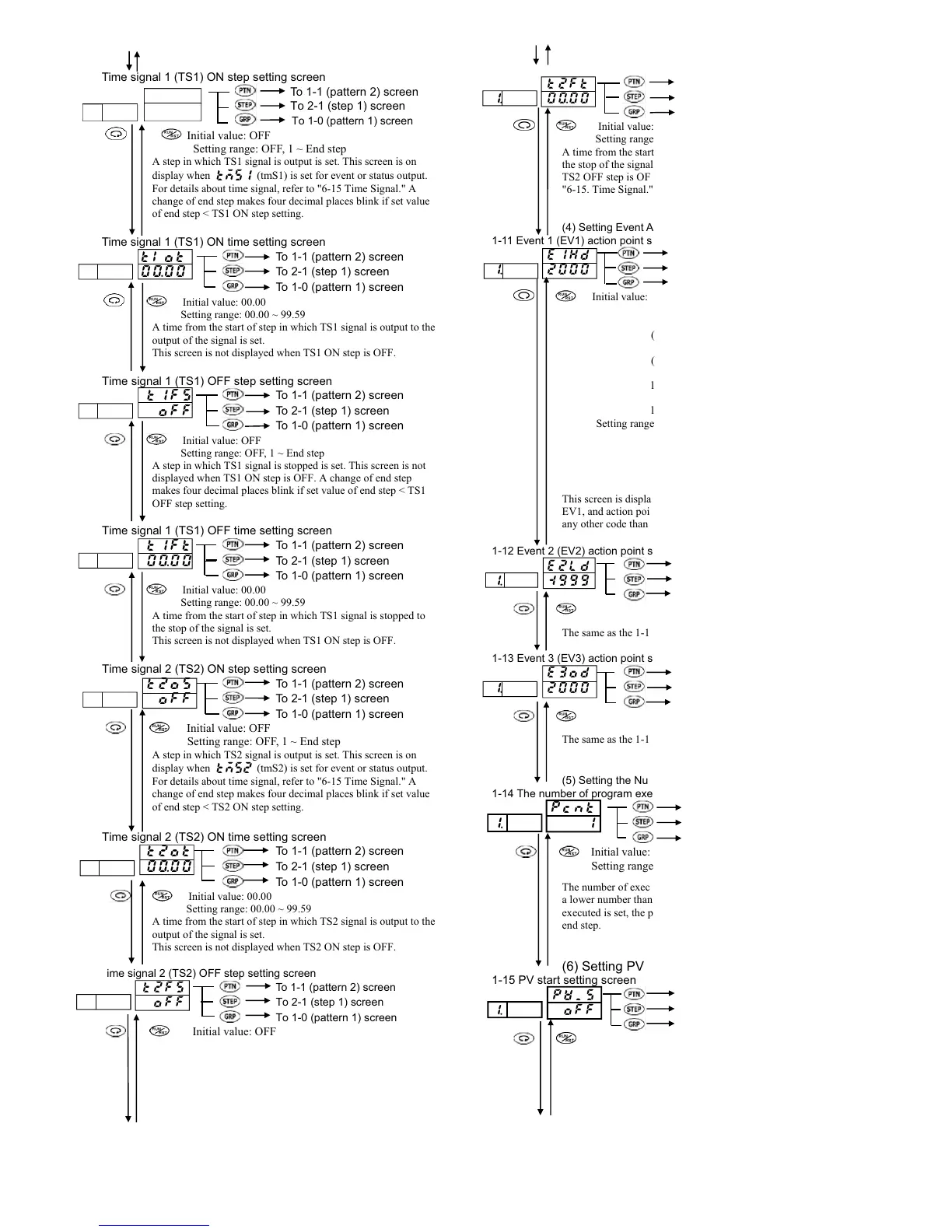

1-3 Time signal 1 (TS1) ON step setting screen
To 1-1 (pattern 2) screen
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: OFF, 1 ~ End step
A step in which TS1 signal is output is set. This screen is on
display when
i
(tmS1) is set for event or status output.
For details about time signal, refer to "6-15 Time Signal." A
change of end step makes four decimal places blink if set value
of end step < TS1 ON step setting.
1-4 Time signal 1 (TS1) ON time setting screen
To 1-1 (pattern 2) screen
s
hrhh
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: 00.00
Setting range: 00.00 ~ 99.59
A time from the start of step in which TS1 signal is output to the
output of the signal is set.
This screen is not displayed when TS1 ON step is OFF.
1-5 Time signal 1 (TS1) OFF step setting screen
i
To 1-1 (pattern 2) screen
s
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: OFF, 1 ~ End step
A step in which TS1 signal is stopped is set. This screen is not
displayed when TS1 ON step is OFF. A change of end step
makes four decimal places blink if set value of end step < TS1
OFF step setting.
1-6 Time signal 1 (TS1) OFF time setting screen
i
To 1-1 (pattern 2) screen
s
hrhh
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: 00.00
Setting range: 00.00 ~ 99.59
A time from the start of step in which TS1 signal is stopped to
the stop of the signal is set.
This screen is not displayed when TS1 ON step is OFF.
1-7 Time signal 2 (TS2) ON step setting screen
j
To 1-1 (pattern 2) screen
s
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: OFF, 1 ~ End step
A step in which TS2 signal is output is set. This screen is on
display when
j
(tmS2) is set for event or status output.
For details about time signal, refer to "6-15 Time Signal." A
change of end step makes four decimal places blink if set value
of end step < TS2 ON step setting.
1-8 Time signal 2 (TS2) ON time setting screen
j
To 1-1 (pattern 2) screen
s
hrhh
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: 00.00
Setting range: 00.00 ~ 99.59
A time from the start of step in which TS2 signal is output to the
output of the signal is set.
This screen is not displayed when TS2 ON step is OFF.
1-9 Time signal 2 (TS2) OFF step setting screen
j
To 1-1 (pattern 2) screen
s
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: OFF, 1 ~ End step
A step in which TS2 signal is stopped is set. This screen is not
displayed when TS2 ON step is OFF. A change of end step
makes four decimal places blink if set value of end step < TS1
ON step setting.
To 1-10 screen
1-10 Time signal 2 (TS2) OFF time setting screen
j
To 1-1 (pattern 2) screen
s
hrhh
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: 00.00
Setting range: 00.00 ~ 99.59
A time from the start of step in which TS2 signal is stopped to
the stop of the signal is set. This screen is not displayed when
TS2 OFF step is OFF. For details about time signal, refer to
"6-15. Time Signal."
(4) Setting Event Action Point
1-11 Event 1 (EV1) action point setting screen
~i
To 1-1 (pattern 2) screen
sjhhh To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: Higher limit deviation value (Hd) 2000
Lower limit deviation value (Ld) –1999
Outside higher/lower limit deviation values
(od) 2000
Within higher/lower limit deviation values
(id) 2000
Higher limit absolute value (HA) Higher
limit value of measuring range
Lower limit absolute value (LA) Lower
limit value of measuring range
Setting range: Higher limit deviation value or lower limit
deviation value 1999 ~ 2000 digits
Within or outside higher/lower limit
deviations 0 ~ 2000 digits
Higher limit absolute value or lower limit
absolute value Within measuring range
This screen is displayed when action code Hd ~ LA is set for
EV1, and action point of set event in PROG mode is set. When
any other code than Hd ~ LA is set, the screen is not displayed.
1-12 Event 2 (EV2) action point setting screen
~j To 1-1 (pattern 2) screen
sqqq To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
The same as the 1-11 screen except EV1 changed to EV2.
1-13 Event 3 (EV3) action point setting screen
~k To 1-1 (pattern 2) screen
sjhhh To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
The same as the 1-11 screen except EV1 changed to EV3.
(5) Setting the Number of Program Executions
1-14 The number of program executions setting screen
To 1-1 (pattern 2) screen
s
i
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: 1
Setting range: 1 ~ 9999
The number of executions of a presently set pattern is set. In case
a lower number than the number of pattern currently being
executed is set, the program is terminated upon execution to the
end step.
(6) Setting PV Start
1-15 PV start setting screen
¦ To 1-1 (pattern 2) screen
s To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: ON/OFF
Wasteful time is eliminated in case PV value is closer to the
setting point of step 1 than start SV.
To 1-16 screen
s
To Next Page
