- 17 -

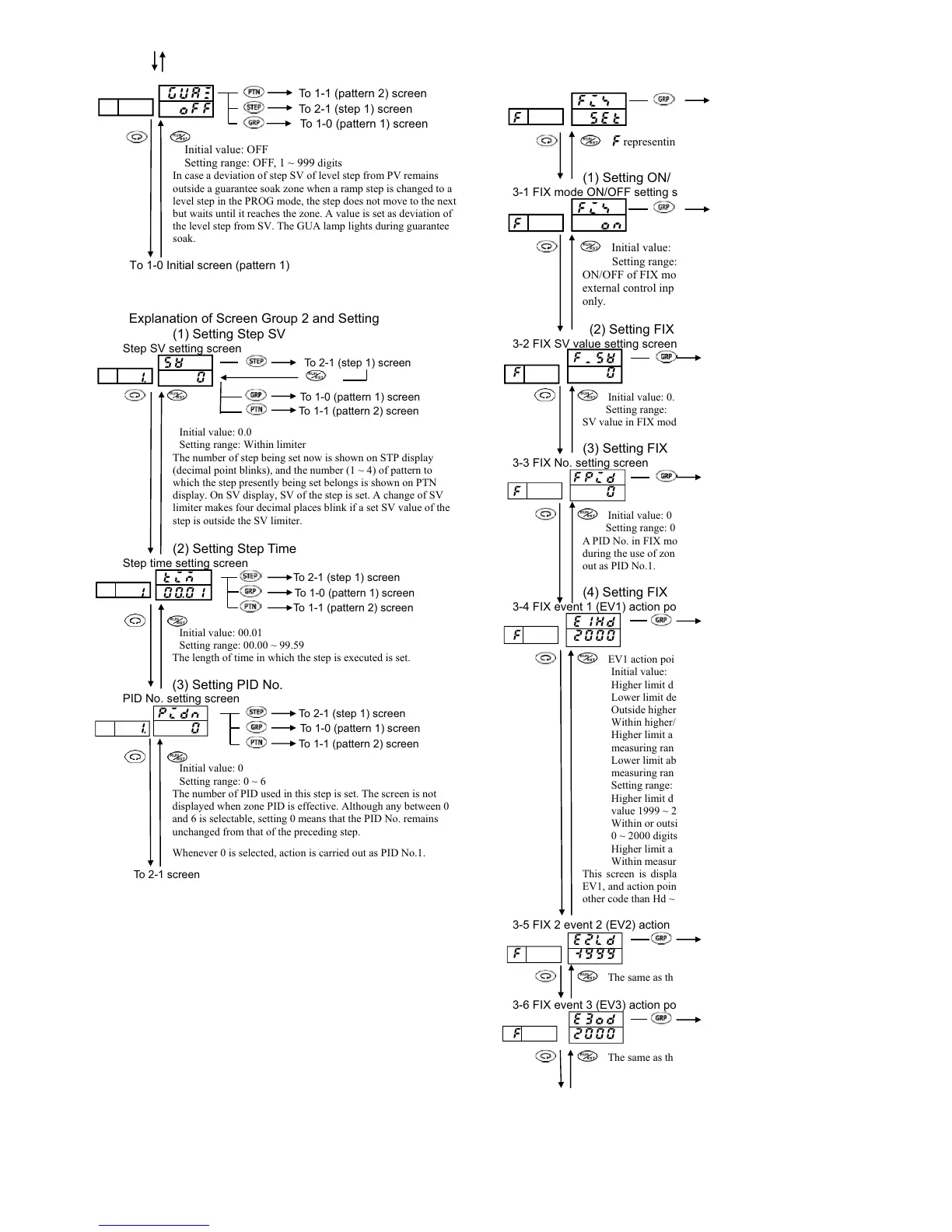

(7) Setting Guarantee Soak Zone
1-16 Guarantee soak zone setting screen
|
To 1-1 (pattern 2) screen
s
To 2-1 (step 1) screen
To 1-0 (pattern 1) screen
Initial value: OFF
Setting range: OFF, 1 ~ 999
digits
In case a deviation of step SV of level step from PV remains
outside a guarantee soak zone when a ramp step is changed to a
level step in the PROG mode, the step does not move to the next
but waits until it reaches the zone. A value is set as deviation of
the level step from SV. The GUA lamp lights during guarantee
soak.
To 1-0 Initial screen (pattern 1)
5-7. Explanation of Screen Group 2 and Setting
(1) Setting Step SV
2-1 Step SV setting screen
To 2-1 (step 1) screen
ish
To 1-0 (pattern 1) screen
To 1-1 (pattern 2) screen
Initial value: 0.0
Setting range: Within limiter
The number of step being set now is shown on STP display
(decimal point blinks), and the number (1 ~ 4) of pattern to
which the step presently being set belongs is shown on PTN
display. On SV display, SV of the step is set. A change of SV
limiter makes four decimal places blink if a set SV value of the
step is outside the SV limiter.
(2) Setting Step Time
2-2 Step time setting screen
To 2-1 (step 1) screen
ishrhi To 1-0 (pattern 1) screen
To 1-1 (pattern 2) screen
Initial value: 00.01
Setting range: 00.00 ~ 99.59
The length of time in which the step is executed is set.
(3) Setting PID No.
2-3 PID No. setting screen
To 2-1 (step 1) screen
ish To 1-0 (pattern 1) screen
To 1-1 (pattern 2) screen
Initial value: 0
Setting range: 0 ~ 6
The number of PID used in this step is set. The screen is not
displayed when zone PID is effective. Although any between 0
and 6 is selectable, setting 0 means that the PID No. remains
unchanged from that of the preceding step.
Whenever 0 is selected, action is carried out as PID No.1.
To 2-1 screen
5-8. Explanation of screen Group 3 and Setting
3-0 Initial screen
To 4-0 screen
~
representing FIX mode is shown on PTN display.
(1) Setting ON/OFF of FIX Mode
3-1 FIX mode ON/OFF setting screen
To 3-0 screen
Initial value: OFF
Setting range: OFF/ON
ON/OFF of FIX mode is set. When FIX is selected in setting
external control input (DI), this screen is for monitoring
only.
(2) Setting FIX SV Value
3-2 FIX SV value setting screen
¦ To 3-0 screen
h
Initial value: 0.0
Setting range: Within limiter
SV value in FIX mode is set.
(3) Setting FIX No.
3-3 FIX No. setting screen
To 3-0 screen
h
Initial value: 0
Setting range: 0 ~ 6
A PID No. in FIX mode is selected. This screen is not displayed
during the use of zone PID. When 0 is selected, action is carried
out as PID No.1.
(4) Setting FIX Event Action Point
3-4 FIX event 1 (EV1) action point setting screen
~i To 3-0 screen
jhhh
EV1 action point in FIX mode is set.
Initial value:
Higher limit deviation value (Hd) 2000
Lower limit deviation value (Ld) –1999
Outside higher/lower limit deviation values (od) 2000
Within higher/lower limit deviation values (id) 2000
Higher limit absolute value (HA) Higher limit value of
measuring range
Lower limit absolute value (LA) Lower limit value of
measuring range
Setting range:
Higher limit deviation value or lower limit deviation
value 1999 ~ 2000 digits
Within or outside of higher/lower limit deviations
0 ~ 2000 digits
Higher limit absolute value or lower limit absolute value
Within measuring range
This screen is displayed when action code Hd ~ LA is set for
EV1, and action point of set event in FIX mode is set. When any
other code than Hd ~ LA is set, the screen is not displayed.
3-5 FIX 2 event 2 (EV2) action point setting screen
~j To 3-0 screen
qqq
The same as the 3-4 screen except EV1 changed to EV2.
3-6 FIX event 3 (EV3) action point setting screen
~k To 3-0 screen
jhhh
The same as the 3-4 screen except that EV1 is changed to
EV3.
To 3-0 initial screen
