4 Key Operations
4.1 Key operation of FPD
40 FPD-2010
4.1.1.5 Checking the detector setting of line configuration

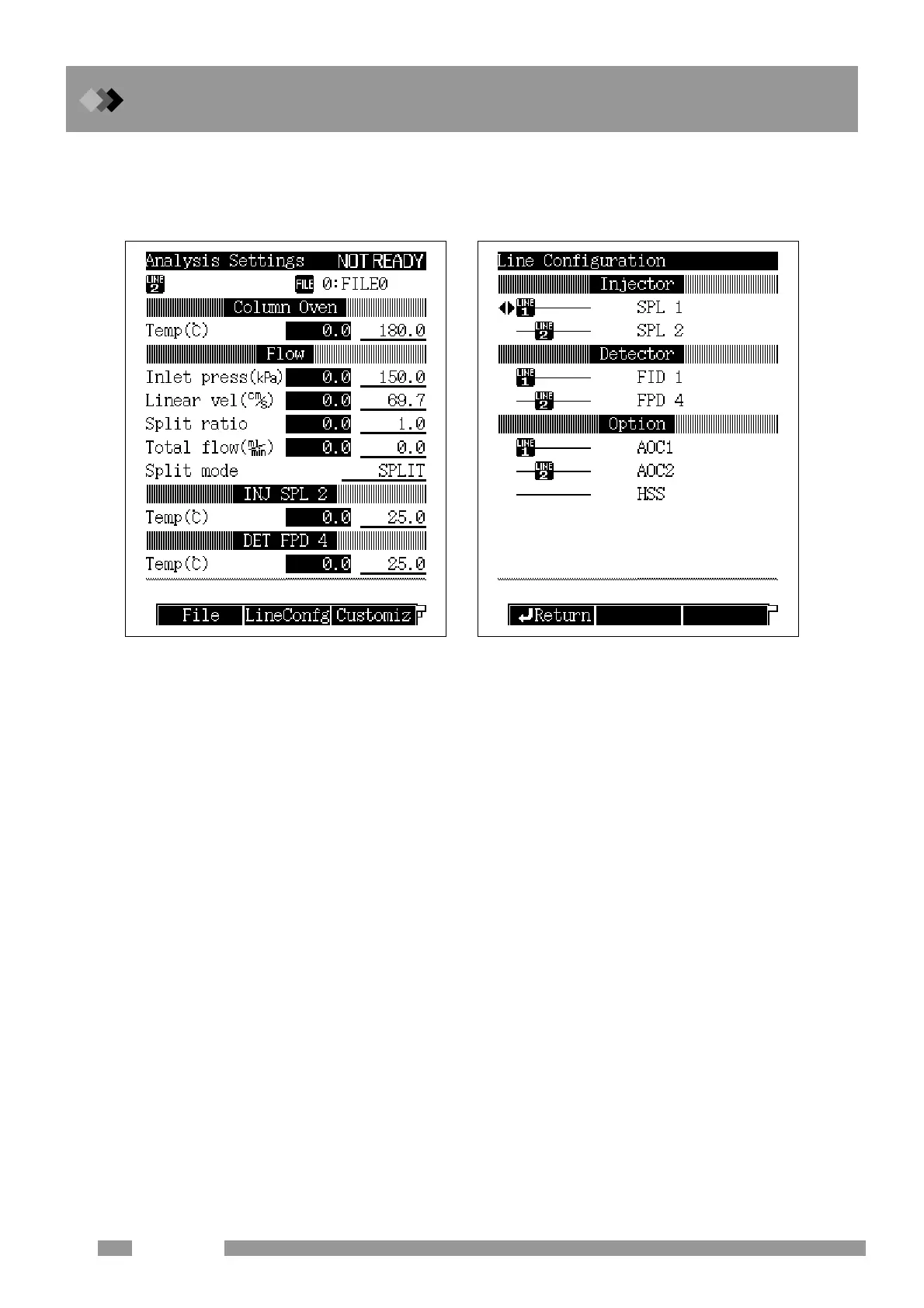

Press the [SET] key and display the SET key screen.
Press [Line Config] of the PF menu and display the sub-screen of the line configuration.
Fig. 4.1.5
Confirm that FPD in the detector column is set to an appropriate line.
When changing the line configuration, move the cursor to the FPD line using the cursor keys
(up/down), select the line, and determine the selection by pressing the [ENTER] key.
For the details, refer to “Chapter 8 Setting the Analitical Parameters and File Management” in
the GC-2010 Instruction Manual.
