2 Installation Conditions
LCMS-8045/8050
Pre-Installation Requirements
11
2.9.1 Nebulizer Gas Drying Gas and Heating Gas
Prepare resin tubing of O.D. 6 mm (I.D. 4 mm) for connecting these gases. This tube need not be prepared for the nitrogen
gas generator (GENIUS1051) since O.D. 6 mm tube is provided as standard. When using other nitrogen gas generators or
centralized piping, for example, replace the tubes seeing 2.9.1.2 to 2.9.1.4, and prepare O.D. 6 mm resin replacement tube.

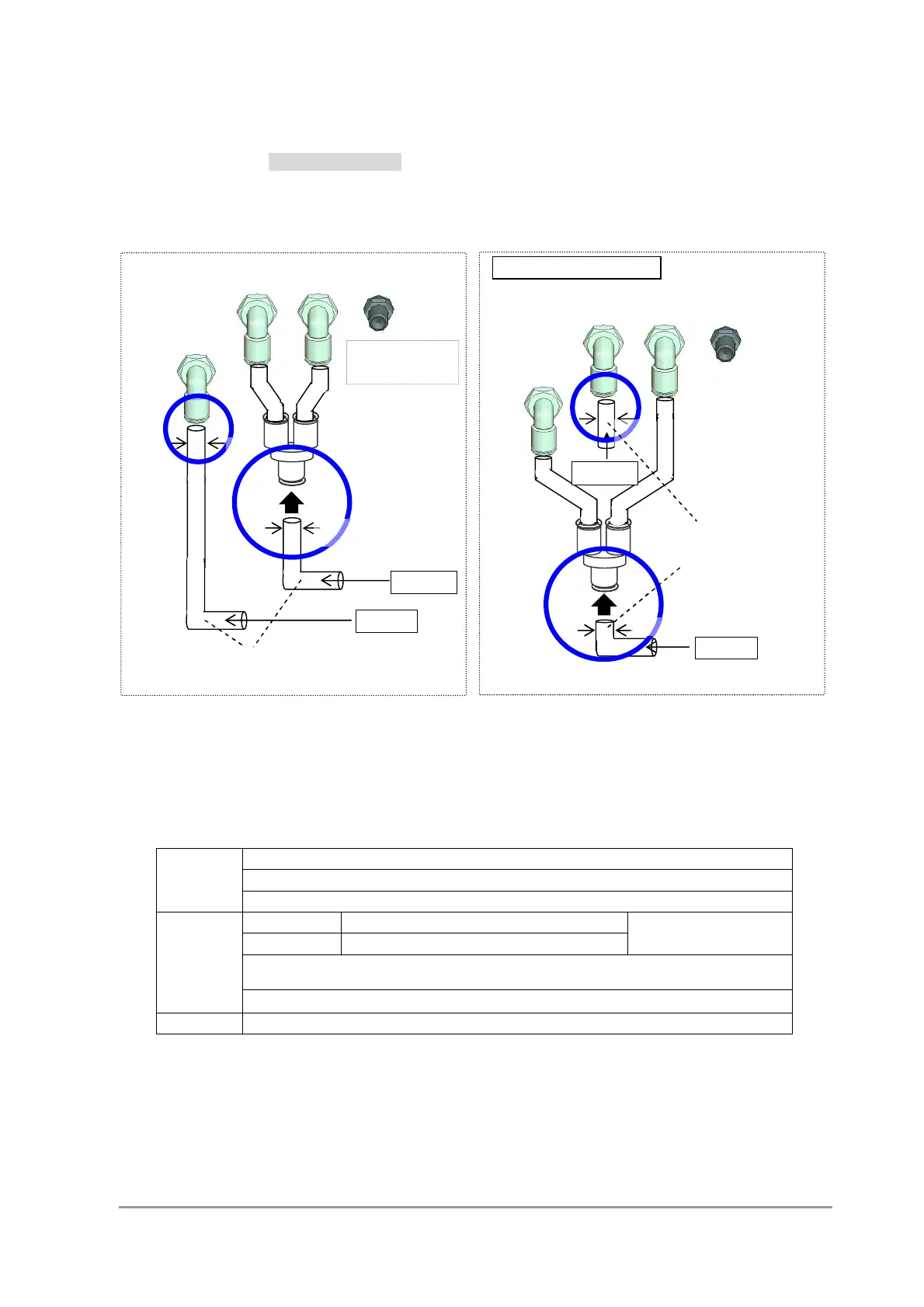

The following shows the connection to the instrument by a resin tube.
* When using the dry air as the nebulizer gas, heating/nebulizer gas have the same source.
2.9.1.1 Using a Nitrogen Gas Generator
The following model of nitrogen/dry air generator is available.
For details, refer the Pre-Installation Requirement of nitrogen generator. Various other models are available.
- PEAK Scientific : GENIUS 1051
Power
supply
Voltage : AC230V (50Hz / 60Hz)
Current : 7A
Calorific value (50Hz) 2.7 MJ/h (60Hz) 3.0 MJ/h
Gas
Nitrogen
25 L/min (max) Purity : >97%
Pressure : 690kPa
Dry Air
25 L/min (max) Oil / Water free
Note) Total flowrate : Nitrogen + Dry Air : 25 (L/min) (max)
Outlets tube : O.D.6mm x I.D.4 ㎜ x 10m
Size
W600 mm x D750 mm x H71.2 mm
Nitrogen
FEP tube (units: m /20m max)
P/N：S016-37623-06
6mm
Dry air
6mm
CID gas
* See 2.9.2.
Nebulizer
gas
Drying
gas
Heating
gas
When using dry air
6mm
6mm
Nebulizer
gas
Drying
gas
Heating
gas
FEP tube (units: m /20m max)
P/N：S016-37623-06
Dry air
Nitrogen
