2 Installation Conditions
LCMS-8045/8050 Pre-Installation Requirements
6
2.6 System Size (Dimensions and Weight)
Dimensions (mm)
Weight (kg)
W
D
H
LCMS-8050 / 8045
1180
540
610
140
Rotary pump E2M28
600
180
280
44
Rotary pump (with Oil mist filter)
650
200
600
45

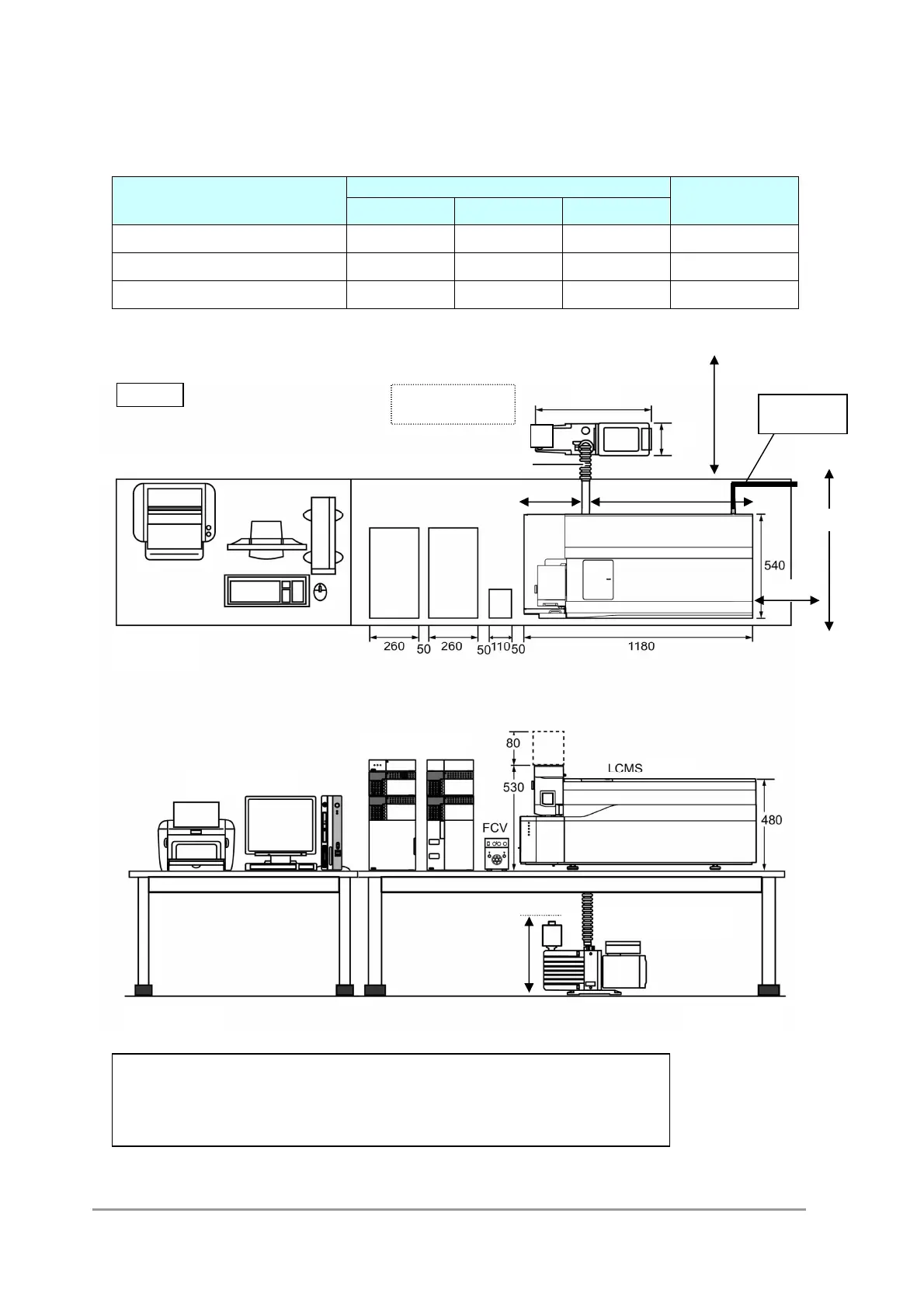

2.7 System Installation Example
z When using a nitrogen gas generator, prepare the space for it additionally.
(For details, please refer to the installation guide came with the generator.)
z When using an Ar gas cylinder, prepare the space for it additionally.
(Example: Ar cylinder (47L) → 30 (W) x 30 (D) x 150 (H))
Evacuation hose (length: 1.2 m from the back of the MS unit)
300
750
600
ca.850
ca.350
Power cable
2500
Unit: mm
650
600
200
[Front view]
Units: mm
PC system
LC system
Rotary pump
E2M28
(With oil mist filter)
[Top view]
