Shimadzu LCMS-8050 User Manual

2 Installation Conditions
LCMS-8045/8050
Pre-Installation Requirements
7
(Installation of Micro System / Micro ESI 8060)

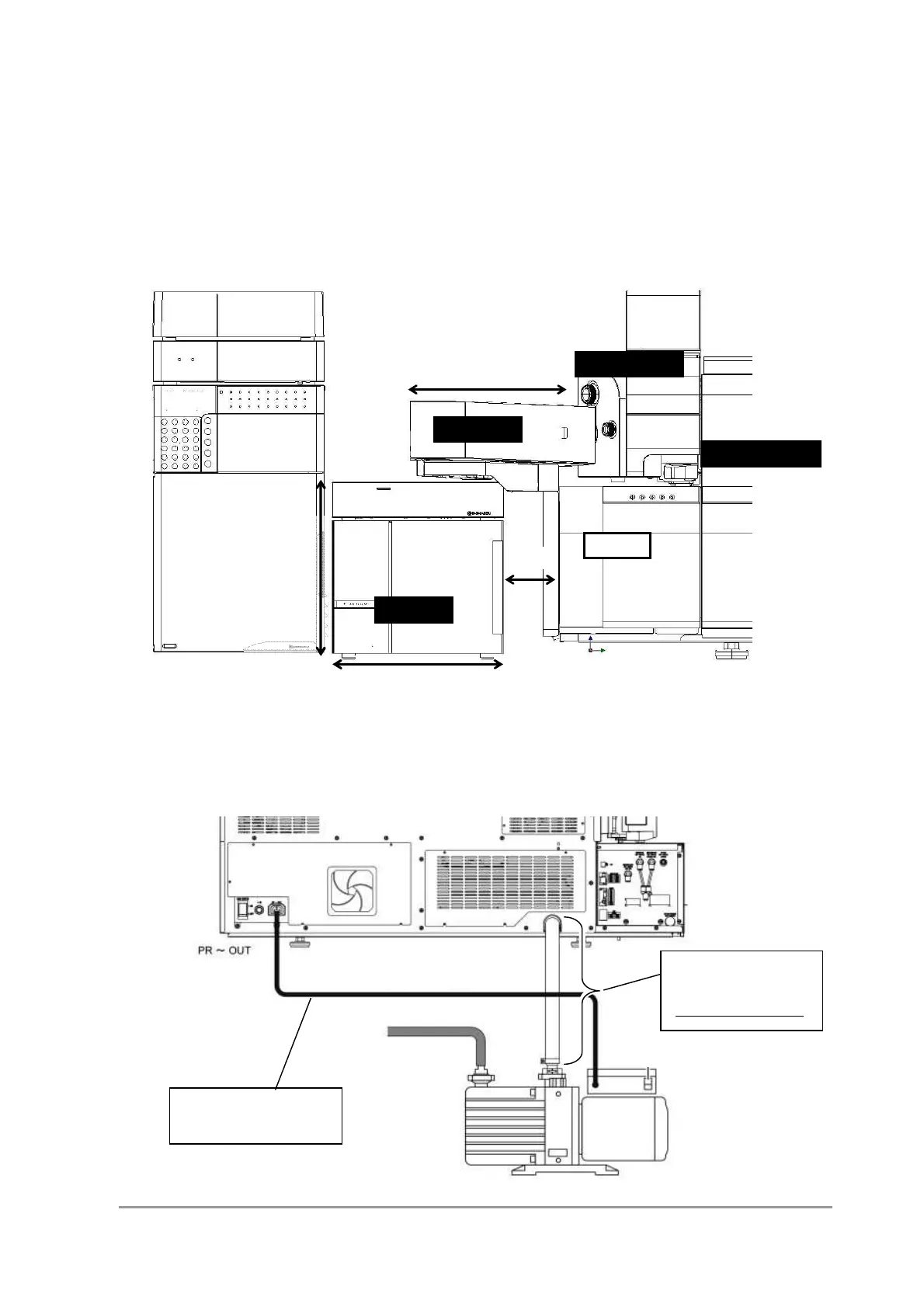

When installing the Micro LC unit (LC-Mikros, CTO-Mikros) on LCMS 8045/8050 / Micro ESI 8060, the following
space is required. A space of about 10 mm from the upper end of the SI door top of LCMS is necessary. A space of
75 mm is required from the left side of the LCMS main unit.
* For details of Micro LC system, refer to the installation manual of Micro LC unit.
* We are assuming a micro LC system including LC-Mikros and CTO-Mikros. Contact us for other LC system
configurations.
2.7.1 Connecting to the Rotary Pump
Use the rotary pump specified by Shimadzu. Using a different pump may impair the intended performance of the
instrument. It may also cause an accident
L: 1200 mm, OD: 41mm
Evacuation hose
Impossible to extend.
L: 1500 mm
Rotary pump power cable
LC-Mikros
100
Micro ESI 8060
10〜
CTO-Mikros
LCMS-8045/8050
SI Cover
260
270
300
