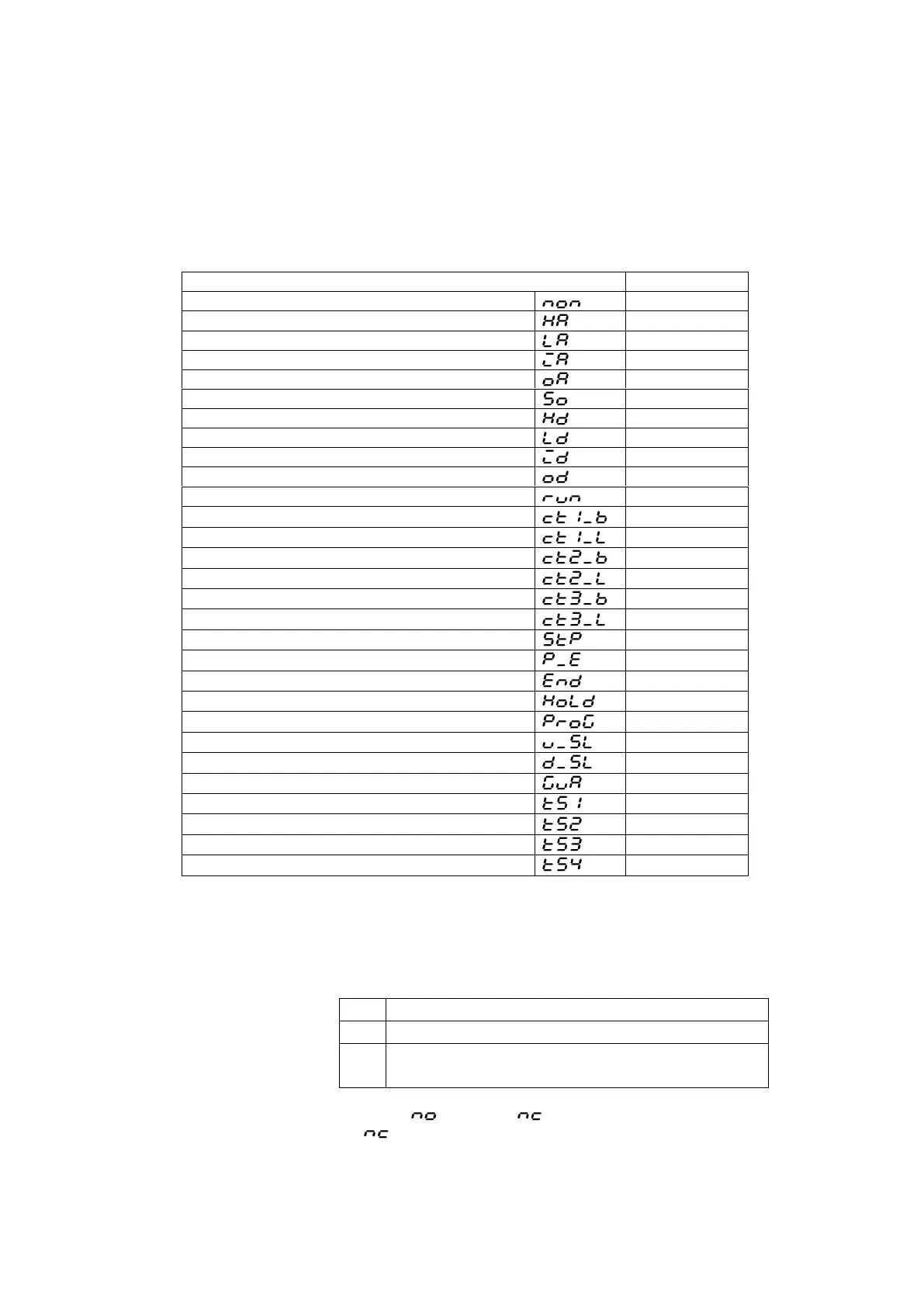

Event Output (ＥＶ１～３）(Option)
（1）Output rating
（2）Operation
（3）Differential gap
（4）Types of Event
Normal open (1a×3points ) 240V AC 1A(resistance load)
ON-OFF operation
1～10000 unit (At alarm function)
EV1 , EV2 and EV3
Function
Note
No allotment
Default
Upper limit absolute value alarm
Lower limit absolute value alarm
Within Absolute Value alarm
Without Absolute Value alarm
Scale over alarm
Upper limit deviation value alarm
Lower limit deviation value alarm
Within deviation alarm
Without deviation alarm
ＲＵＮ signal
ＣＴ１ Control loop alarm（heater braking）
ＣＴ１ Control loop alarm (loop)
ＣＴ２ Control loop alarm （Heater braking）
ＣＴ２ Control loop alarm （loop）
3 phases Control loop alarm（Heater braking）
3 phases Control loop alarm （loop）
Step signal
Pattern end signal
Program end
Step hold signal
Program signal
Up slope signal
Down slope signal
Guarantee signal
Time signal １
Time signal 2
Time signal 3
Time signal 4
(5) Setting range
(6) Stand by operation
(7) Output characteristic
(8) Latching
Upper limit absolute alarm ,Lower limit absolute alarm : Within measuring range
Deviation alarm : Upper limit -20000～30000､Lower limit -20000～30000 Unit
Without deviation : 0～30000 Unit
Within deviation : 0～30000 Unit
Control loop : 0.0～50.0A
:Normal open( )､Normal close( )
※If is chosen and power is turn on, relay become On about 1.5s and become
off.
Available
OFF
No standby operation
1
Only at the time of Power on, stand by operation
2
At the time of Power On+Execution SV､RUN/STBY､AUTO/MAN､
andEV are changed.
