Shimax MAC6A User Manual

90
(9) Latching release
(10) Output renewal period
Release is done by key operation ,DI or power OFF, In case of release by DI and power
OFF all the alarm are called off simultaneously
50,166.7,250,500m sec
Event Output 4(EV4)(Option)
(1) Output rating
(2)～(9)
(10) Additional condition
Normal open (1a) 240V AC 2A(resistance load)
Same as EV1～3
Exclusive selection option of Servo Output2

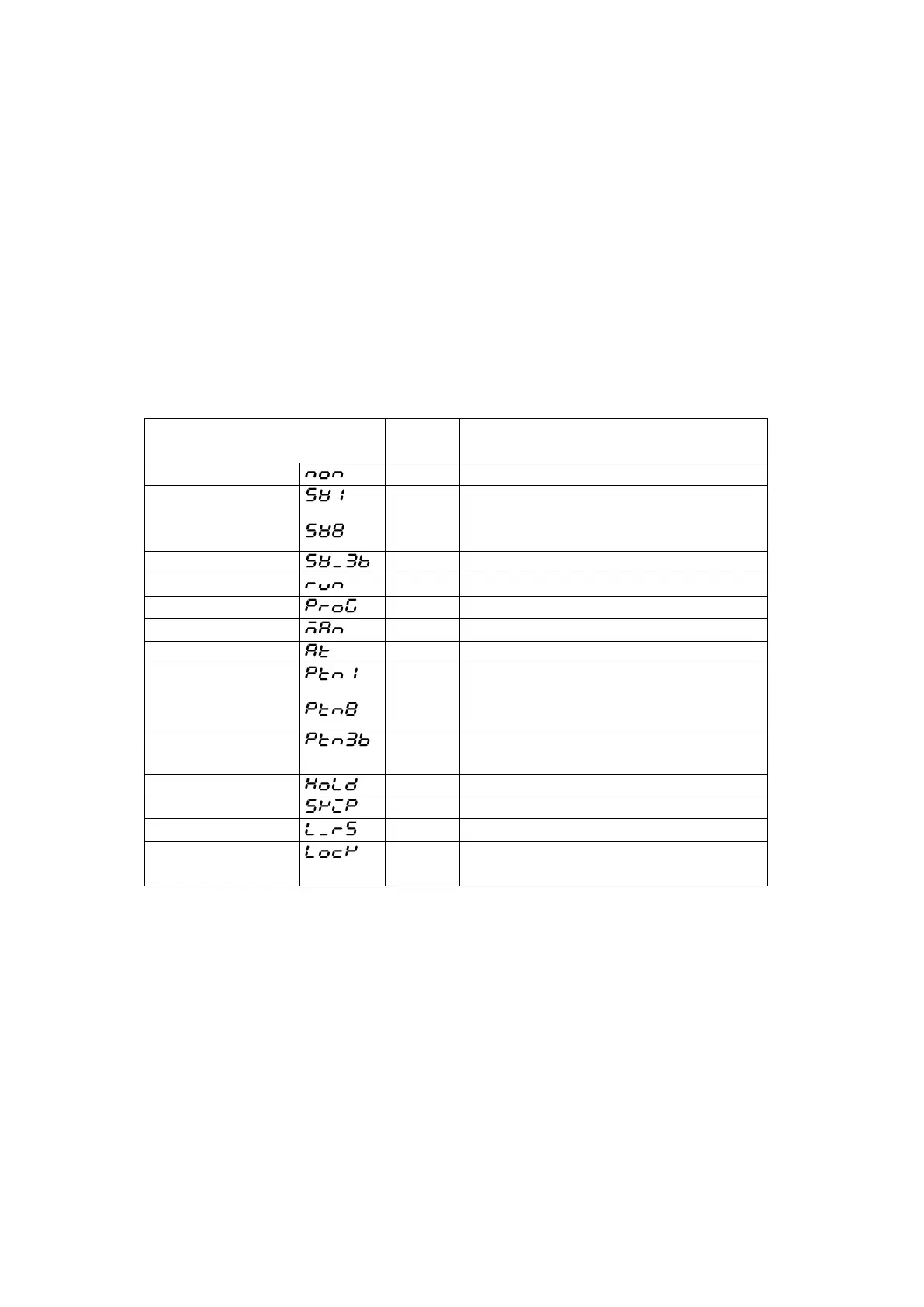

External operation input (DI) Option
（1） Number of input
（2） Input detections
7points
Edge and Level
Function
Input
detection
Contents
No allotment
Default setting
SV selection
SV1→SV8
↓
Level
Priority is given to younger number
SV 3bit selection
Level
Priority is given to younger number
RUN
Level
RUN/STBY(RST)
PRG
Level
PRG/FIX
MAN
Level
MANUAL/AUTO
AT
Edge
Auto tuning execution
PTN selection
PTN1→PTN8
↓
Level
Priority is given to younger number
PTN 3bit selection
Level
3 bits of continuation is occupied by the younger DI
allotment
HOLD
Level
Program time stop
SKIP
Edge
Shift to the following step of program,
Latching release
Edge
All latching release
Super Key lock
Level
Fixed only to the basic screen key operation
unacceptable
(3) Input rating
(4) Input signal time
(5) Operation input
Voltage 5V DC(0.5mA/1 input)
Min 50msec
Dry contact or Open collector (min 50msec)
External operation output（ＤＯ）(Option)
(1) Number of output
(2) Types of Output
(3) Output rating
(4) Output renewal time
(5) Installation condition
6 points
Same as EV1～3
Open collector Darlington output 24VDC (Max load 20mA)､ON saturated voltage1.2V
Same as sampling period (50,166.7, 250, 500m sec )
DO4～6 Exclusive selection option of Feedback input and CT input
