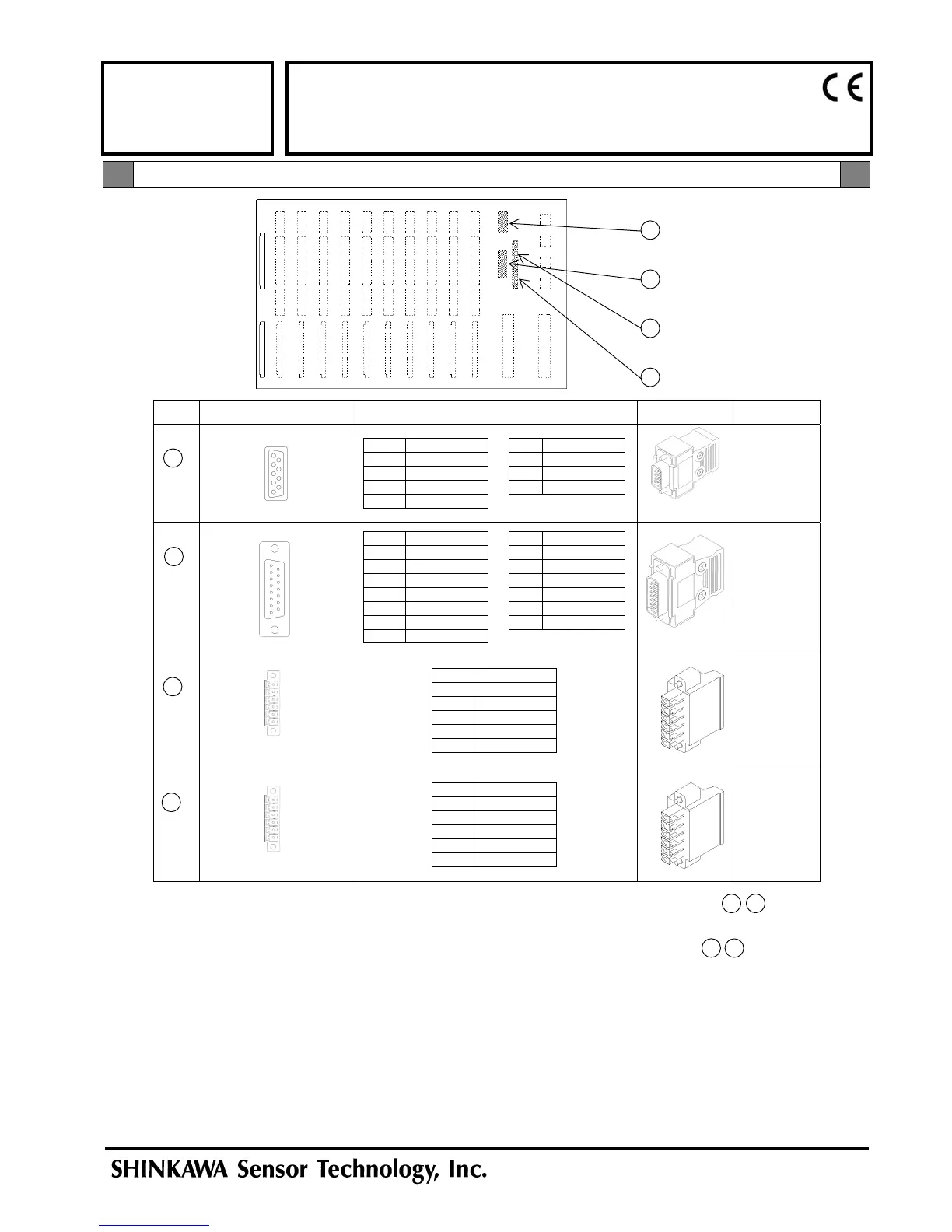

Shinkawa VM-7 Series User Manual

VM-741 LOCAL COMMUNICATION &
PHASE MARKER MODULE
Page 4 of 4
VM-7 SERIES
SPECIFICATIONS
30909E1.2
Issued Feb. 2009
Revised Mar. 2010
Back of Instrument Rack Plug/ Terminal Block (Connector) Pin Assignment Fitting Plug Part Code
1 CH1 MON 6 CH1 PUL
2 CH1 COM 7 CH1 COM
3 CH2 MON 8 CH2 PUL
4 CH2 COM 9 CH2 COM
5 N/A
Plug
7072NAD
Hood
7072NAG
1 CH1 IN 9 CH2 IN
2 CH1 COM 10 CH2 COM
3 N/A 11 N/A
4 CH1 POW 12 CH2 POW
5 CH1 SHIELD 13 CH2 SHIELD
6 N/A 14 N/A
7 N/A 15 N/A
8 N/A
Plug
7072NAE
Hood
7072NAH
A1 RES
A2 RES
A3 SEQ
A4 SEQ
A5 FILT
A6 FILT
7072NAC
A1 N/A
A2 N/A
A3 N/A
A4 N.O.
A5 SYSTEM-OK
A6 N.C.
7072NAC
4
3
2
1
Plug/ Terminal Block (Connector) Pin Assignment
1 Monitor Output Connector
2 Transducer Input Connector
3 Top Contact Signal Input Terminal Block
4 Bottom Contact Signal Input Terminal Block
Note) For the accessory specification code “/TB2”, the fitting terminal block plugs 3 4 are
included.
For the accessory specification code “/TB2”, the D-sub plugs and hoods 1 2 are not
included. If required, please make necessary arrangement separately referring to the part
code above.
