5.2.4. Starting the heat pump.
To start the heat pump, press . The heat pump starts within 3 minutes. The last
selected operating mode (heating or cooling
20
), see Figure 13. Figure 14 and
Paragraph 5.2.13.8, the last temperature set and the current pool water temperature
(heating or cooling) is immediately displayed.

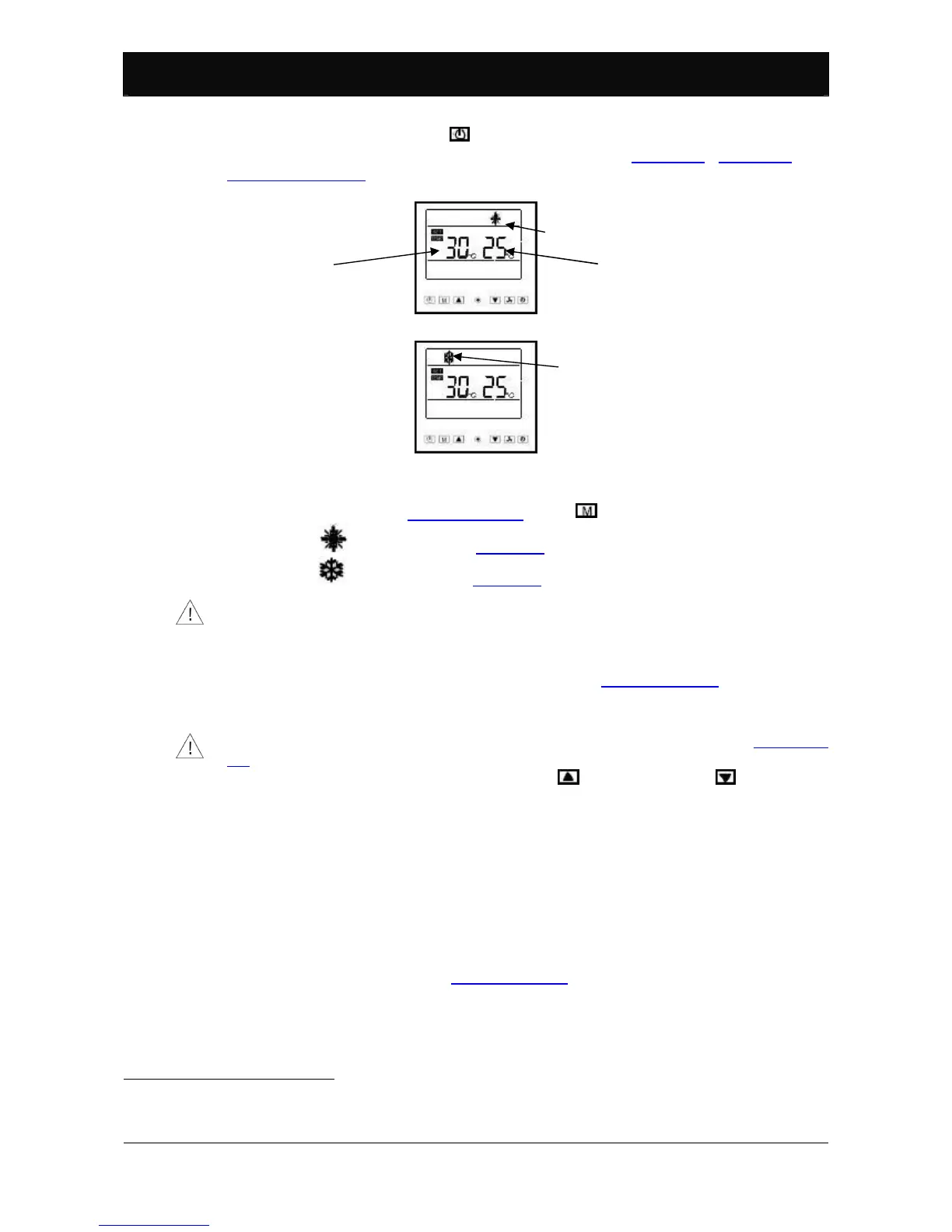

Figure 13: Heat pump display when turned on, heating mode.
Figure 14: Heat pump display when turned on, cooling mode.
5.2.5. Operating mode selection
21
.
Start the heat pump, see Paragraph 5.2.4, press to select the operating mode:
• Heating, is displayed, see Figure 13.
• Cooling, is displayed, see Figure 14.
Whenever the operating mode changes, the set temperature is switched to the
following default values:
• Heating mode, 40 [°C].
• Cooling mode, 30 [°C].
Thus, the set temperature must be regulated, see Paragraph 5.2.6, whenever the
operating mode changes.
5.2.6. Set temperature regulation.
Before regulating the set temperature, carefully read the instructions in Paragraph
1.4.
Set temperature can be regulated by pressing , to increase it and , to decrease
it. Set temperature can be selected in the interval 5÷45 [°C].
Parameter programming, upon heat pump assembly, guarantees that the difference
between pool water temperature and set temperature is never over 3 [°C] as
illustrated by the following examples:
• Heating mode, set temperature 30 [°C], pool water temperature is never under
27 [°C].
• Cooling mode, set temperature 15 [°C], pool water temperature is never over 18
[°C].
5.2.7. Minimum working temperature and restart temperature
22
.
Once the pump is started, see Paragraph 5.2.4. if the ambient temperature is lower
than the minimum working temperature, the heat pump stops, displaying error
message “EE C”, and only restarts if the ambient temperature exceeds the restart
temperature. When the pump is constructed, the minimum working temperature and
20
Operating mode not included in model BP-xxWS-B (xx=35, 50).
21
Not included in model BP-xxWS-B (xx=35, 50).
22
Not included in model BP-xxWS-B (xx=35, 50).
Heating mode
Current pool water temperature
Set temperature
Cooling mode
