Shott BP-85HS-A - Spare Parts and Replacement; Special Notes on Part Replacement

E N G L I S H
Nome file:
7500016 - ISTR.INSTALL. HEAT PUMP VERS. EN.doc Rev. 4 del/of 05/11/2009
Page 33-di/of 40
8. Spare parts.

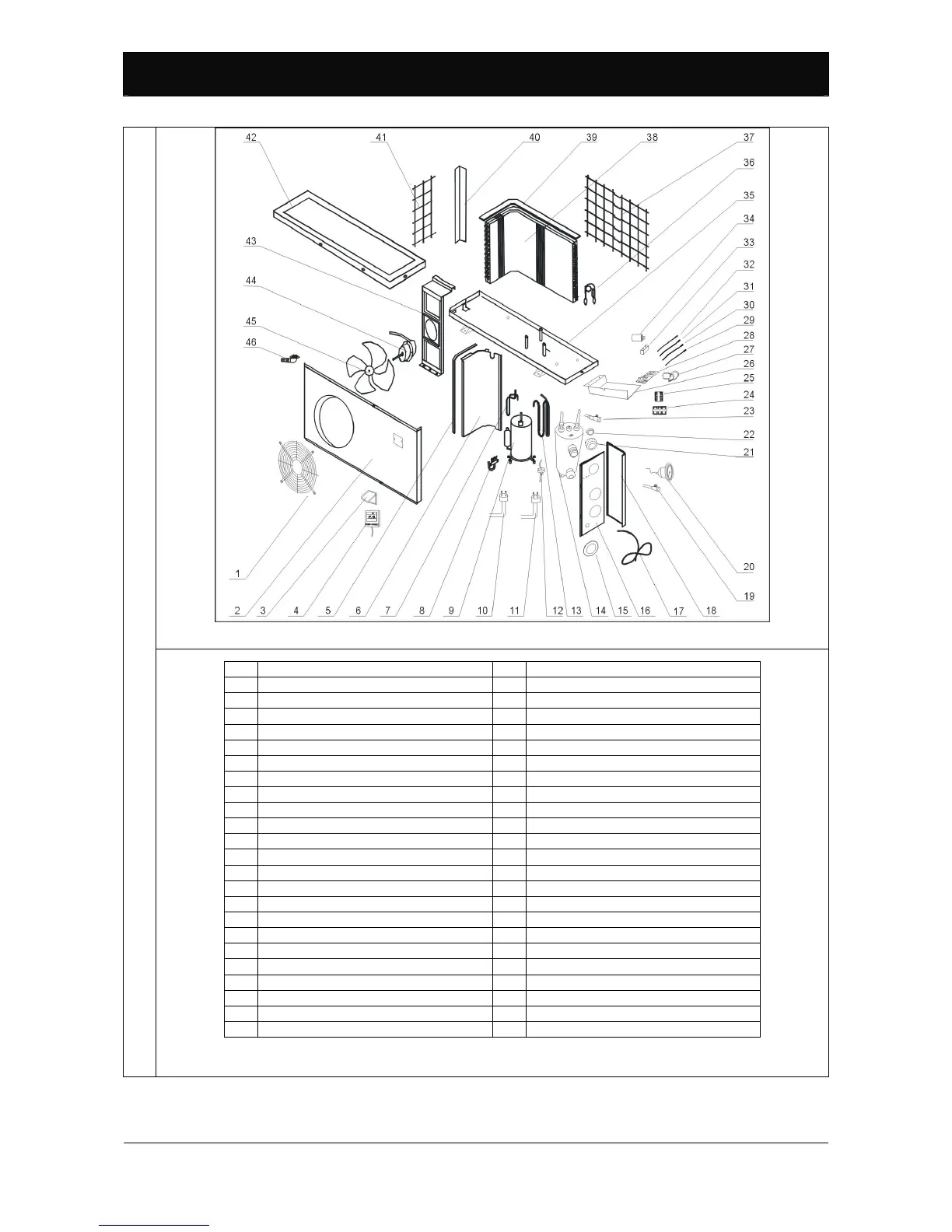

Figure 44: Spare parts details.
BP-xxHS-A (xx=50, 85, 100) models.
Nr.
Description. Nr.
Description.
1 Fan protection net 24 Public terminal
2 Front panel 25 Electrical box
3 Control panel cover 26 Transformer
4 Wire controller 27 Circuit board
5 Verge board polyfoam 28 Copper sensor
6 Verge board 29 Water sensor
7 Exhaust pipe 30 Ambient sensor
8 Four way valve 31 Compressor sensor
9 Compressor 32 Motor capacitor
10 High pressure sensor 33 Compressor capacitor
11 Low pressure sensor 34 Frame
12 Flow sensor 35 Capillary
13 Gas returning pipe 36 Condenser protection net
14 Heat exchanger 37 Condenser
15 Rubber water fender 38 Condenser top polyfoam
16 Right side board 39 Left carriage
17 Power cord 40 Left net
18 Right rear board 41 Top cover
19 Refrigerant charge valve 42 Motor bracket
20 Pressure manometer 43 Fan motor
21 Fast connection 44 Fan
22 Gasket 45 Drain tube
23 Terminal
Table 7 Table 5: Heat pump spare parts.
