E N G L I S H
Nome file:
7500016 - ISTR.INSTALL. HEAT PUMP VERS. EN.doc Rev. 4 del/of 05/11/2009
Page 34-di/of 40

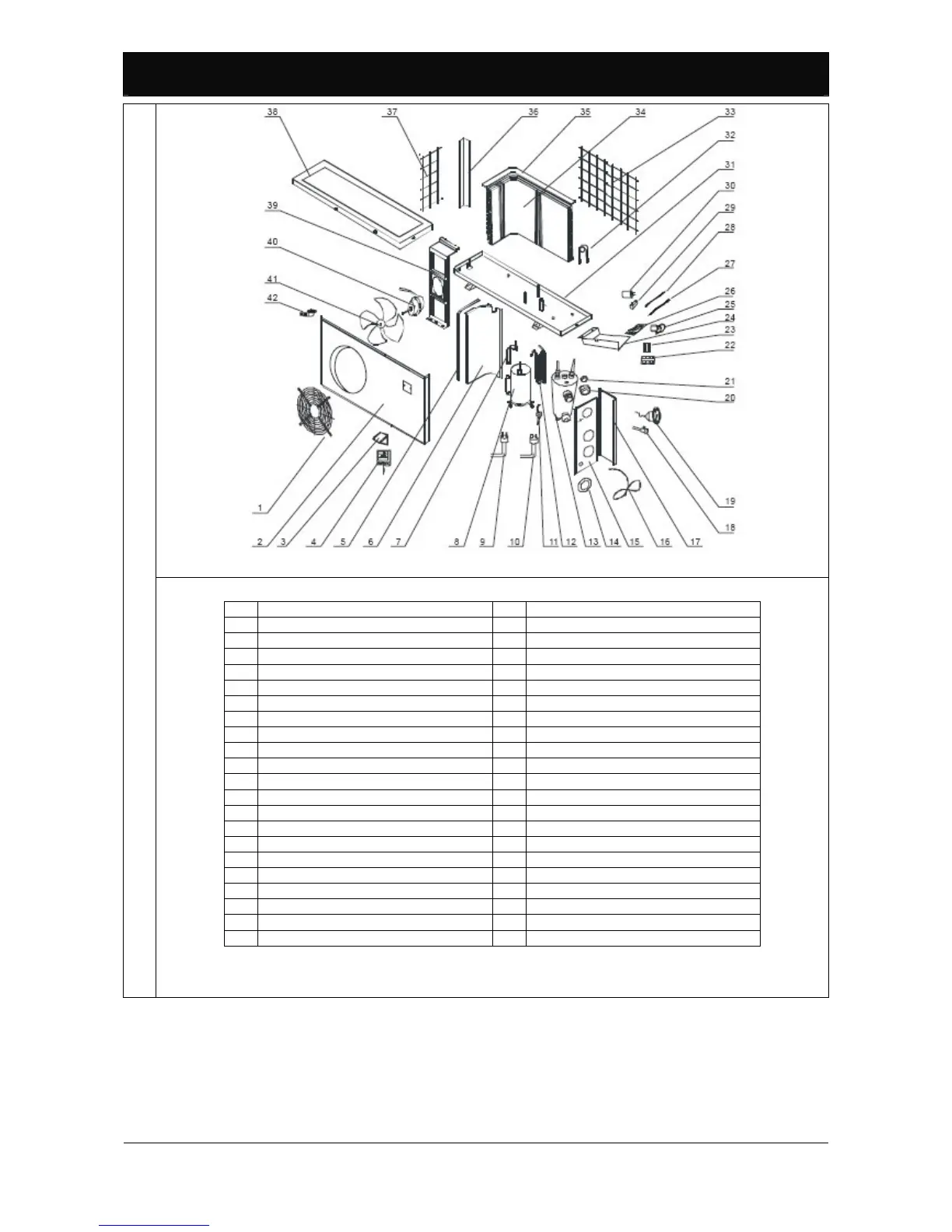

Figure 45: Spare parts details.
BP-xxWS-B (xx=35, 50) model.
Nr.
Description. Nr.
Description.
1 Fan protection net 22 Terminal
2 Front panel 23 Public terminal
3 Control panel cover 24 Electrical box
4 Control panel 25 Transformer
5 Verge board polyfoam 26 Circuit board
6 Verge board 27 Water sensor
7 Exhaust pipe 28 Compressor sensor
8 Compressor 29 Motor capacitor
9 High pressure sensorr 30 Compressor capacitor
10 Low pressure sensor 31 Frame
11 Flow sensor 32 Capillary
12 Gas returning pipe 33 Condenser protection net
13 Heat exchanger 34 Condenser
14 Rubber water fender 35 Condenser top polyfoam
15 Right side board 36 Left carriage
16 Power cord 37 Left net
17 Right rear board 38 Top cover
18 Refrigerant charge valve 39 Motor bracket
19 Pressure manometer 40 Fan motor
20 Fast connection 41 Fan
21 Gasket 42 Drain tube
Table 6: Heat pump spare parts.
