E N G L I S H
Nome file:
7500016 - ISTR.INSTALL. HEAT PUMP VERS. EN.doc Rev. 4 del/of 05/11/2009
Page 20-di/of 40
key is pressed within 10 seconds or if is pressed, usual standby mode
information is displayed, see Paragraph 5.2.2.
Each parameter is marked by an identification number. The following table lists for
each parameter:
• Identification number
• Description.
• Admissible value range.
• Default settings (set at heat pump assembly).

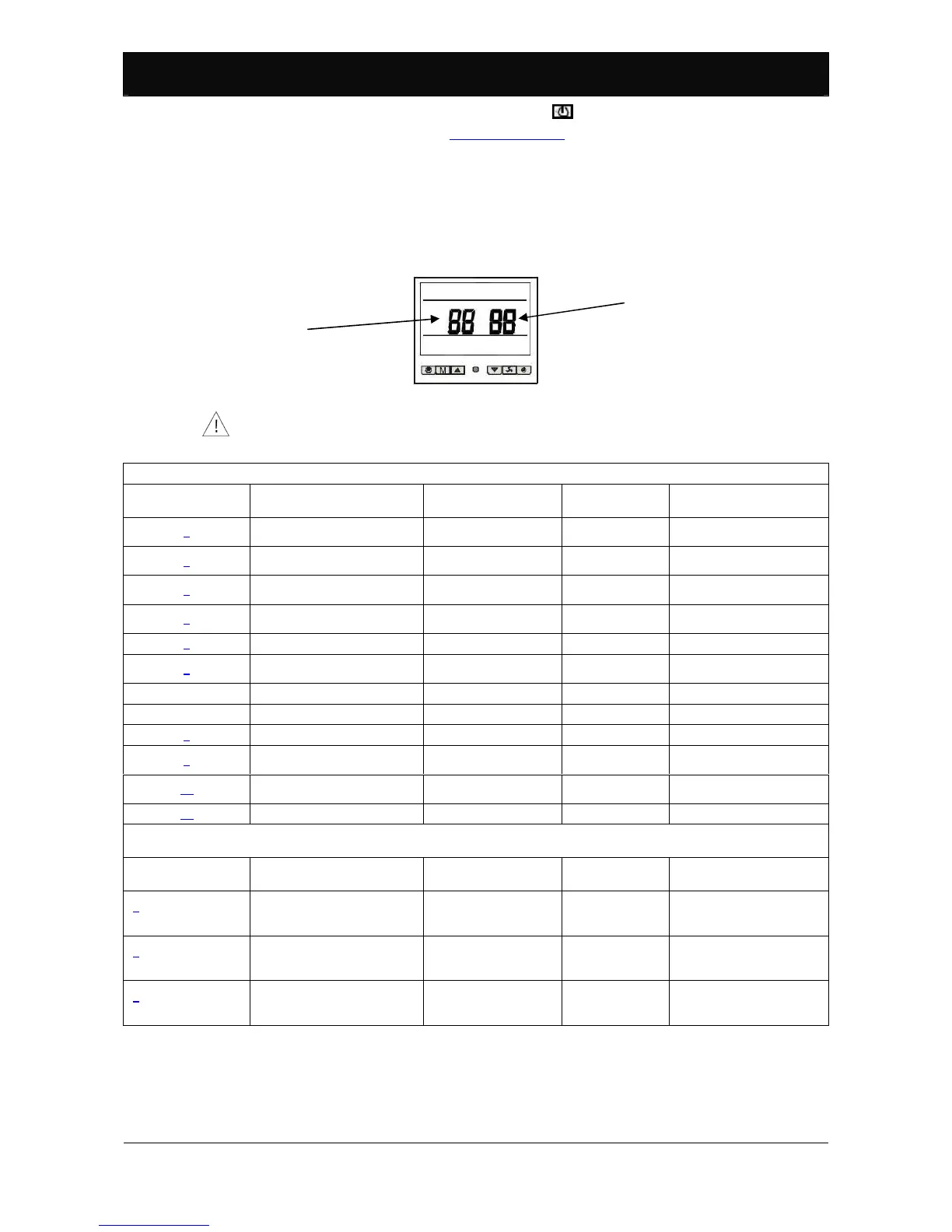

Figure 26: Parameter programming.
Some of the parameters listed in the following table may not be used for SERIES
BP heat pump control.
Table 2: Parameter description table.
BP-xxHS-A (xx=50, 85, 100) models.
Identification
number
Description.
Admissible value
range.
Editable Default value
0
Pool temperature regulation
range
0÷1
No
0
1
Automatic defrost start
temperature
-20÷10 [°C] Yes -7 [°C]
2
Automatic defrost stop
temperature
5÷45 [°C] Yes 12 [°C]
3
Automatic defrost repetition
time
30÷150 [min] Yes F0 (150 [min])
4 Defrost duration 1÷15 [min]
No
3 [min]
5
Compressor protection
temperature
70÷110 [°C] Yes 95 [°C]
6 Parameter not used 0÷60 [°C]
No
7 [°C]
7 Parameter not used 0/1
No
1
8 Automatic restart 0/1
No
1
9 Operating mode 0/1/2/3
Not
recommended
1
10
Maximum deviation from set
temperature
1÷10 [°C] Yes 3 [°C]
11 Control mode 0/1
No
0
BP-xxWS-B (xx=35, 50) model.
Identification
number
Description.
Admissible value
range.
Editable Default value
0, see previous table
parameter 10
Maximum deviation from set
temperature
1÷10 [°C] Yes 3 [°C]
1, see previous table
parameter 5
Compressor protection
temperature
70÷110 [°C] Yes 95 [°C]
2, see previous table
parameter 8
Automatic restart 0/1
No
1
Parameter
value
Parameter
identification number
