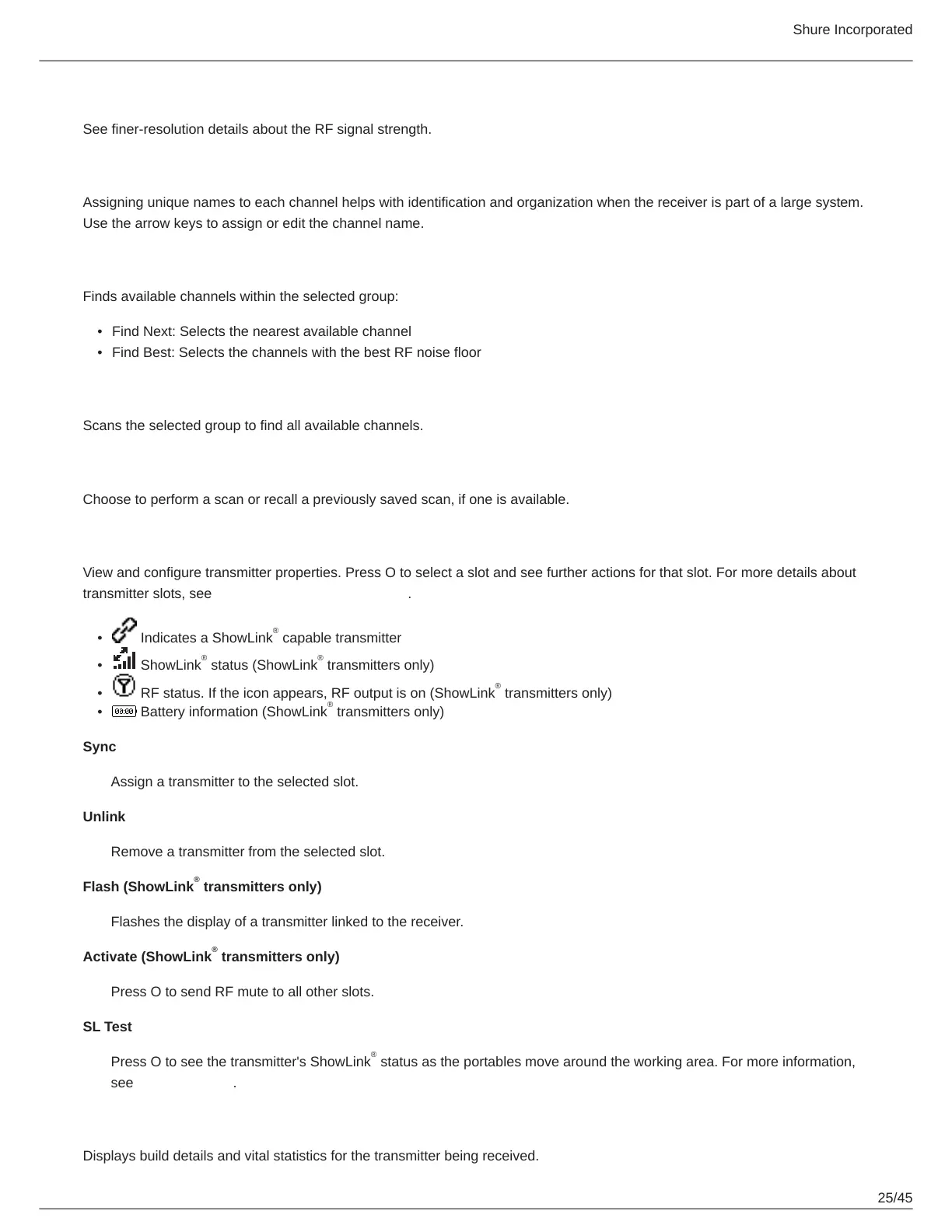

RF Level
See finer-resolution details about the RF signal strength.
Channel Name
Assigning unique names to each channel helps with identification and organization when the receiver is part of a large system.
Use the arrow keys to assign or edit the channel name.
Channel Scan
Finds available channels within the selected group:
Find Next: Selects the nearest available channel
Find Best: Selects the channels with the best RF noise floor
Group Scan
Scans the selected group to find all available channels.
Spectrum Scan
Choose to perform a scan or recall a previously saved scan, if one is available.
Tx Slots
View and configure transmitter properties. Press O to select a slot and see further actions for that slot. For more details about
transmitter slots, see Assigning Transmitters to Slots.
Indicates a ShowLink capable transmitter
ShowLink status (ShowLink transmitters only)
RF status. If the icon appears, RF output is on (ShowLink transmitters only)
Battery information (ShowLink transmitters only)
Sync
Assign a transmitter to the selected slot.
Unlink
Remove a transmitter from the selected slot.
Flash (ShowLink transmitters only)
Flashes the display of a transmitter linked to the receiver.
Activate (ShowLink transmitters only)
Press O to send RF mute to all other slots.
SL Test
Press O to see the transmitter's ShowLink status as the portables move around the working area. For more information,
see ShowLink Test
®
.
Tx Details
Displays build details and vital statistics for the transmitter being received.
®
® ®
®
®
®
®
®
