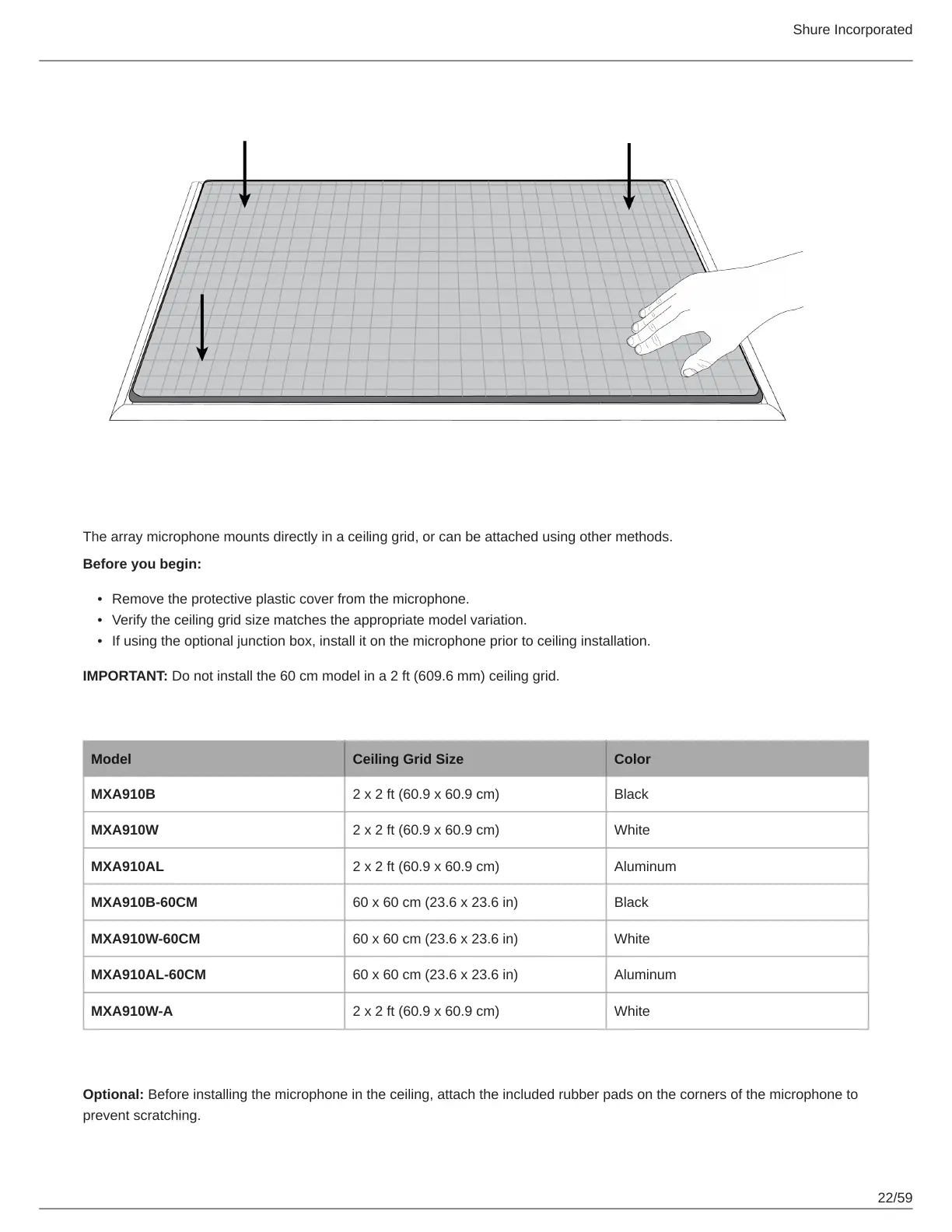

Installing the Array Microphone
The array microphone mounts directly in a ceiling grid, or can be attached using other methods.
Before you begin:
Remove the protective plastic cover from the microphone.
Verify the ceiling grid size matches the appropriate model variation.
If using the optional junction box, install it on the microphone prior to ceiling installation.
IMPORTANT: Do not install the 60 cm model in a 2 ft (609.6 mm) ceiling grid.
Model Variations
Model Ceiling Grid Size Color
MXA910B 2 x 2 ft (60.9 x 60.9 cm) Black
MXA910W 2 x 2 ft (60.9 x 60.9 cm) White
MXA910AL 2 x 2 ft (60.9 x 60.9 cm) Aluminum
MXA910B-60CM 60 x 60 cm (23.6 x 23.6 in) Black
MXA910W-60CM 60 x 60 cm (23.6 x 23.6 in) White
MXA910AL-60CM 60 x 60 cm (23.6 x 23.6 in) Aluminum
MXA910W-A 2 x 2 ft (60.9 x 60.9 cm) White
Rubber Scratch Protectors
Optional: Before installing the microphone in the ceiling, attach the included rubber pads on the corners of the microphone to
prevent scratching.
