Network Connectivity
Discrete audio channels for each lobe and an automix channel are delivered over a single network cable
Dante digital audio coexists safely on the same network as IT and control data, or can be configured to use a dedicated
network
Control strings available for third-party preset controllers including Crestron and AMX
Professional Design
Sleek industrial design blends with contemporary board rooms and meeting spaces
Versatile mounting options for ceilings, pole mounts, suspension cables, and more
Available in white, black, and aluminum finishes (detachable grille can be custom painted)

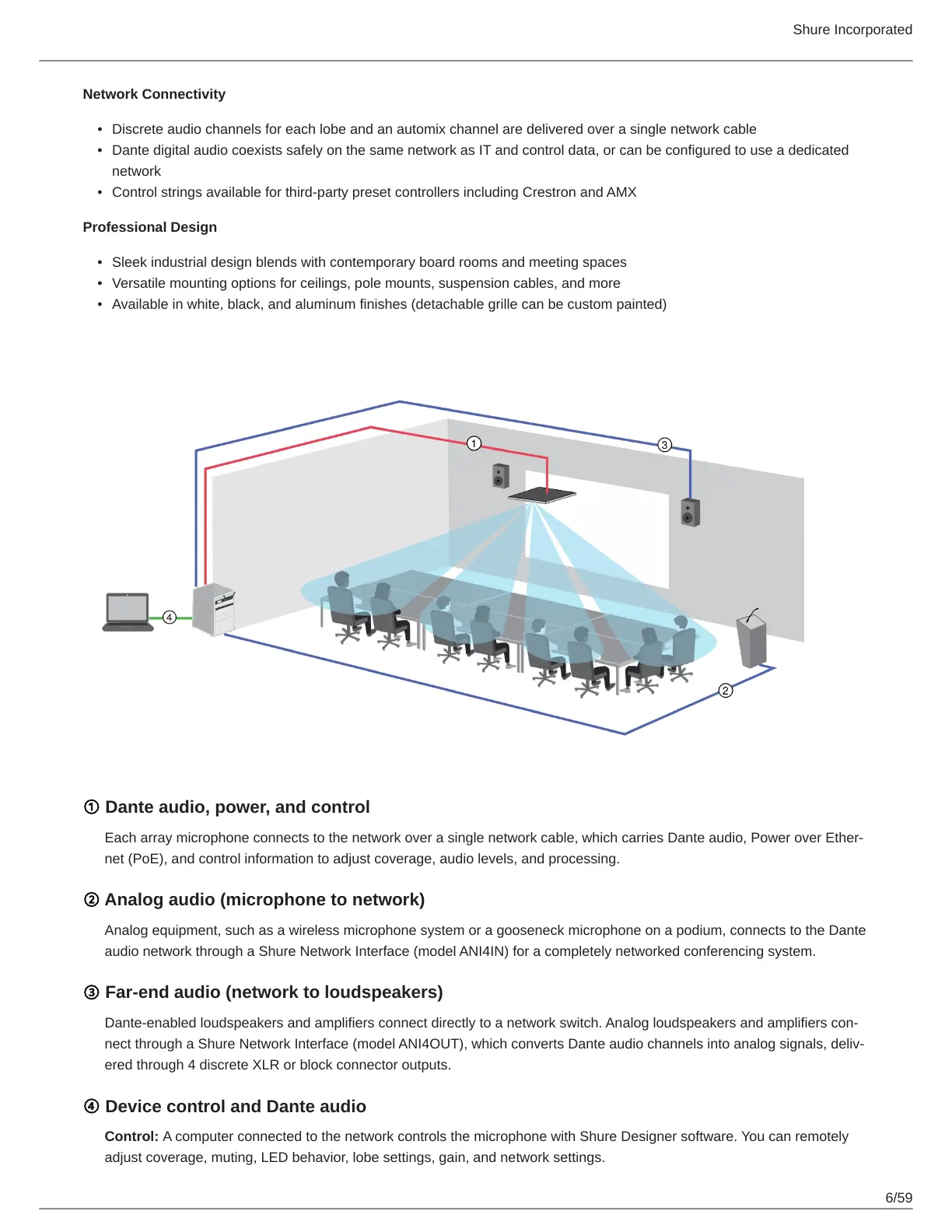

System Overview
① Dante audio, power, and control
Each array microphone connects to the network over a single network cable, which carries Dante audio, Power over Ether
net (PoE), and control information to adjust coverage, audio levels, and processing.
② Analog audio (microphone to network)
Analog equipment, such as a wireless microphone system or a gooseneck microphone on a podium, connects to the Dante
audio network through a Shure Network Interface (model ANI4IN) for a completely networked conferencing system.
③ Far-end audio (network to loudspeakers)
Danteenabled loudspeakers and amplifiers connect directly to a network switch. Analog loudspeakers and amplifiers con
nect through a Shure Network Interface (model ANI4OUT), which converts Dante audio channels into analog signals, deliv
ered through 4 discrete XLR or block connector outputs.
④ Device control and Dante audio
Control: A computer connected to the network controls the microphone with Shure Designer software. You can remotely
adjust coverage, muting, LED behavior, lobe settings, gain, and network settings.
