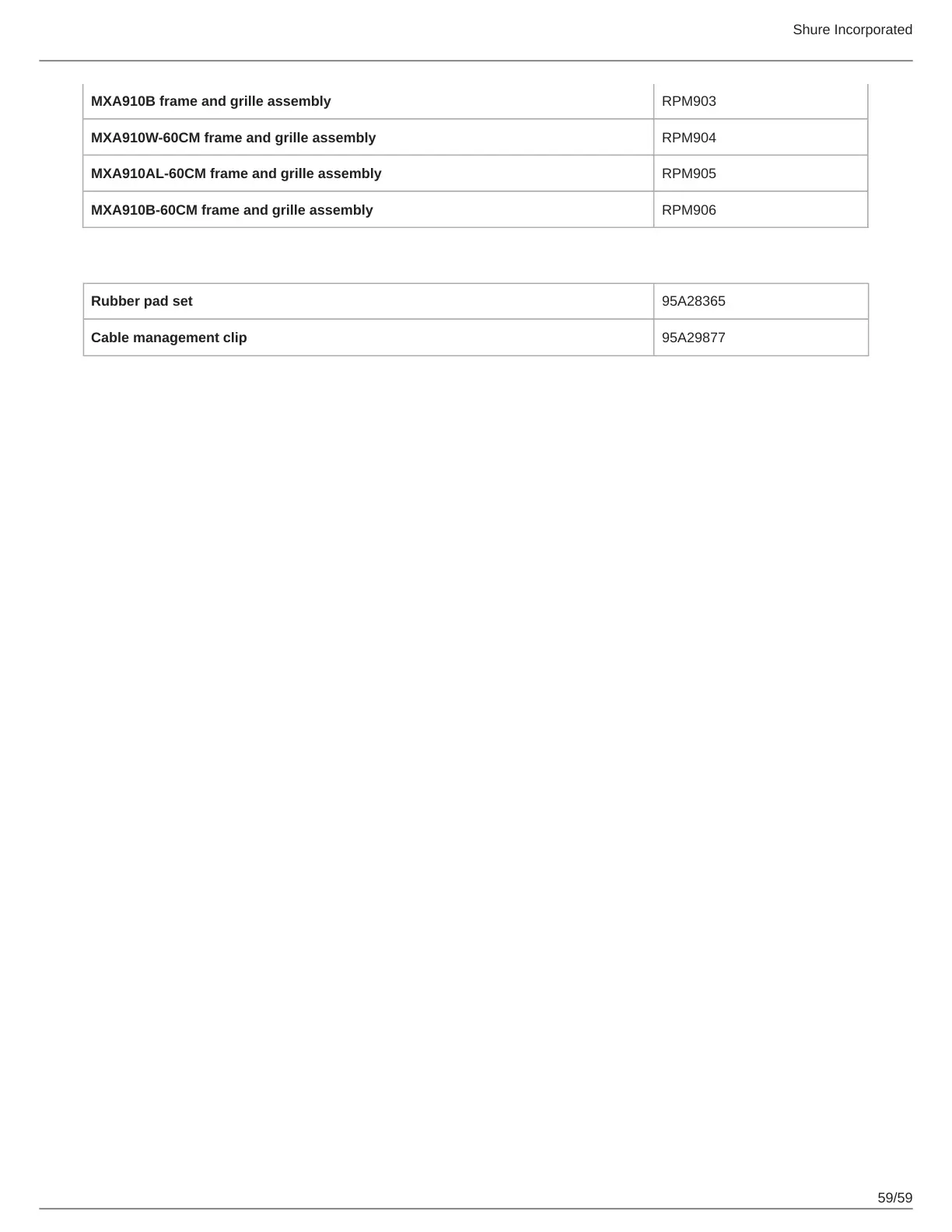

MXA910B frame and grille assembly RPM903

MXA910W-60CM frame and grille assembly RPM904

MXA910AL-60CM frame and grille assembly RPM905

MXA910B-60CM frame and grille assembly RPM906

Furnished Accessories

Rubber pad set 95A28365

Cable management clip 95A29877
