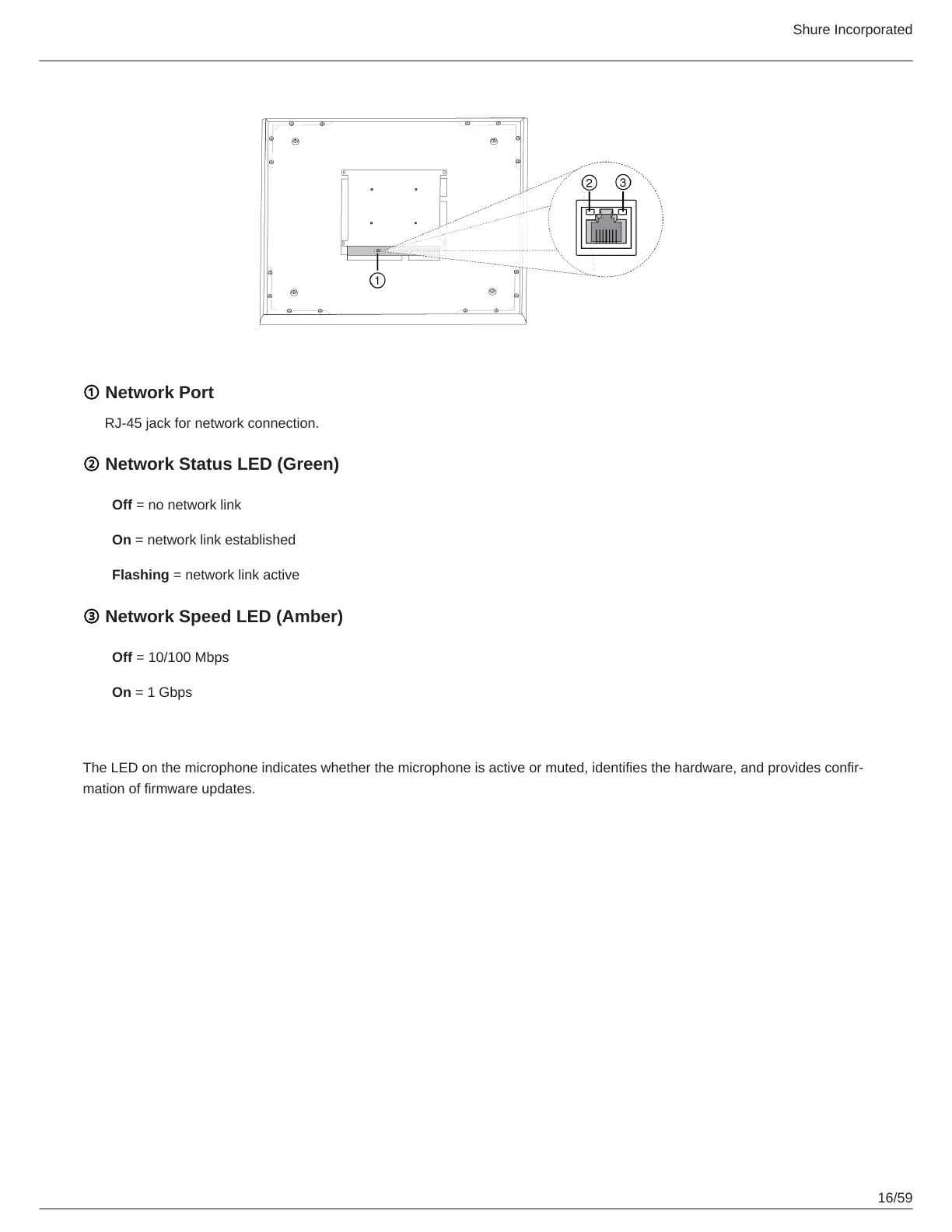

① Network Port
RJ-45 jack for network connection.
② Network Status LED (Green)
Off = no network link
On = network link established
Flashing = network link active
③ Network Speed LED (Amber)
Off = 10/100 Mbps
On = 1 Gbps
LED Light Bar
The LED on the microphone indicates whether the microphone is active or muted, identifies the hardware, and provides confir
mation of firmware updates.
