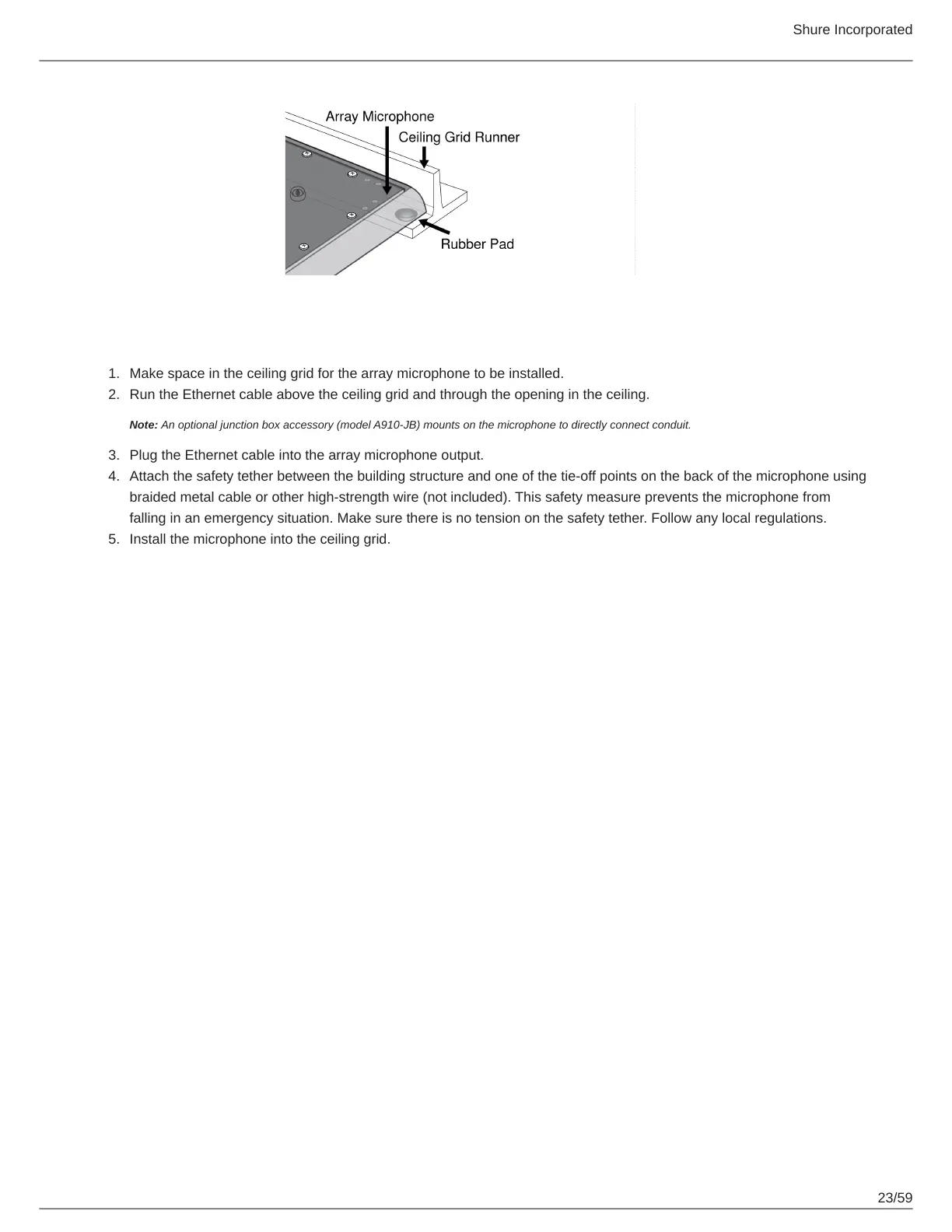

Ceiling Installation
Make space in the ceiling grid for the array microphone to be installed.
Run the Ethernet cable above the ceiling grid and through the opening in the ceiling.
Note: An optional junction box accessory (model A910-JB) mounts on the microphone to directly connect conduit.
Plug the Ethernet cable into the array microphone output.
Attach the safety tether between the building structure and one of the tie-off points on the back of the microphone using
braided metal cable or other high-strength wire (not included). This safety measure prevents the microphone from
falling in an emergency situation. Make sure there is no tension on the safety tether. Follow any local regulations.
Install the microphone into the ceiling grid.
