Shure Incorporated
55/59

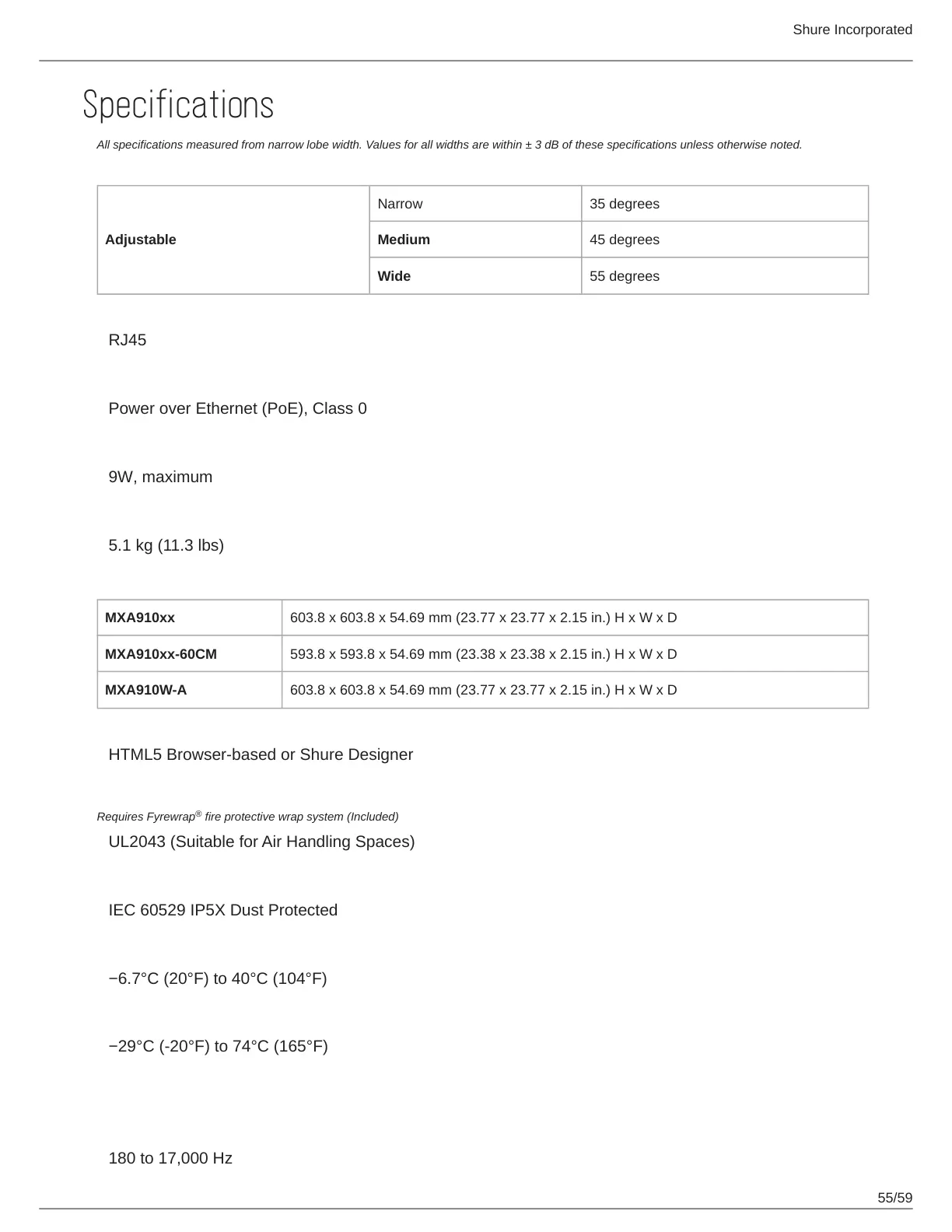

Specifications
All specifications measured from narrow lobe width. Values for all widths are within ± 3 dB of these specifications unless otherwise noted.
Lobe Width
Adjustable
Narrow 35 degrees
Medium 45 degrees
Wide 55 degrees
Connector Type
RJ45
Power Requirements
Power over Ethernet (PoE), Class 0
Power Consumption
9W, maximum
Weight
5.1 kg (11.3 lbs)
Product Dimensions
MXA910xx 603.8 x 603.8 x 54.69 mm (23.77 x 23.77 x 2.15 in.) H x W x D
MXA910xx-60CM 593.8 x 593.8 x 54.69 mm (23.38 x 23.38 x 2.15 in.) H x W x D
MXA910W-A 603.8 x 603.8 x 54.69 mm (23.77 x 23.77 x 2.15 in.) H x W x D
control application
HTML5 Browser-based or Shure Designer
Plenum Rating
Requires Fyrewrap fire protective wrap system
®
(Included)
UL2043 (Suitable for Air Handling Spaces)
Dust Protection
IEC 60529 IP5X Dust Protected
Operating Temperature Range
−6.7°C (20°F) to 40°C (104°F)
Storage Temperature Range
−29°C (20°F) to 74°C (165°F)
Audio
Frequency Response
180 to 17,000 Hz
