Shure Incorporated
13/87

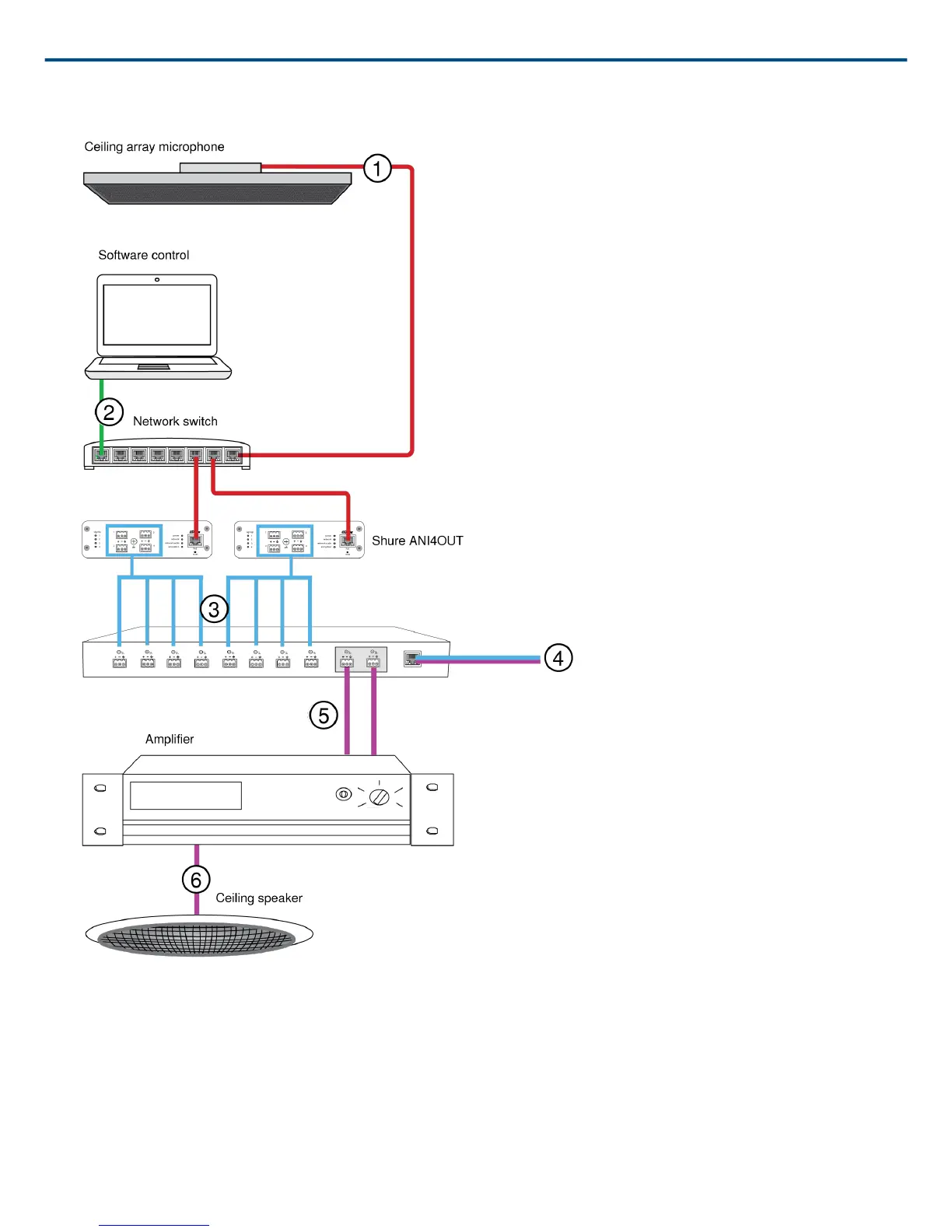

Telephone Conference with Network Interfaces and Audio Processor
① Array microphone to network switch
Connect the array microphone output with a network cable to any port on the switch that supplies power over eth
ernet (PoE).
② Computer to network switch
Connect a computer to the network switch to provide control of the array microphone and other networked compo
nents through the software control panel.
