Si-tex SP-110C - Main Screen Explained; Manual Steer Mode

Main Screen Explained
Manual Steer Mode
The live compass heading is
displayed in the top center, as a
bar-graph below it, and in large
green numbers near the middle
of the screen.
Below the large numbers is the
current steering mode (MANUAL
STEER), or an error in red.
The live supply voltage is displayed
top right side.
If Latitude is received via NMEA
input, it will be displayed top left
If Longitude is received via NMEA
input, it will be displayed top right
If vessel speed is received via NMEA
(SOG), it will be displayed top left.
Rudder Angle is indicated by a bar
and number. The number and bar will
be red when Port side, Green when
Starboard side, and yellow when in
center at 0°

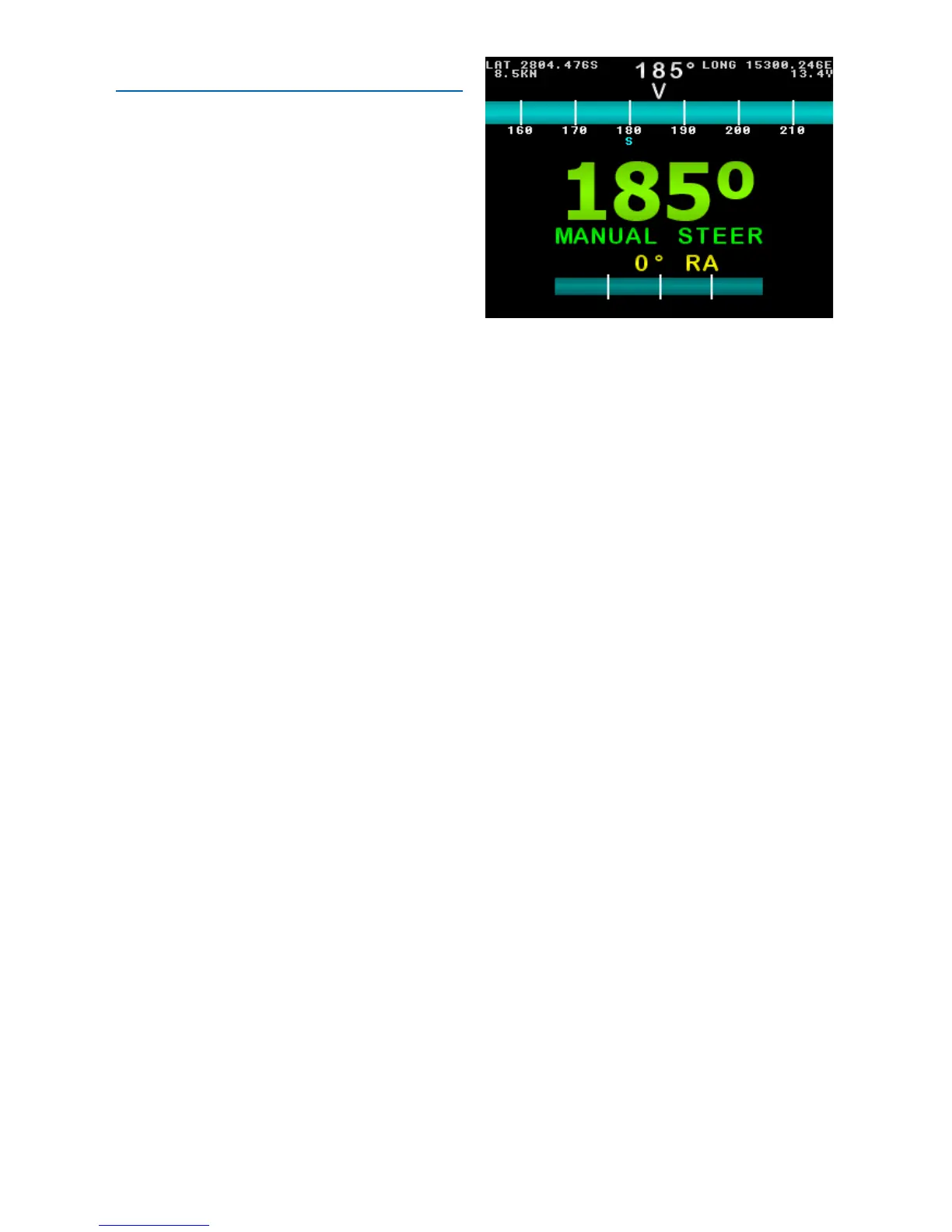

Figure 18: Example Manual Steer
Mode Main Screen. Live Compass
heading is 185°, Rudder is at center.
Press ◄ or ► buttons to move
the rudder.
Hold MODE to enter Settings
Page 1
Press AUTO to enter Auto Steer
Mode
Hold MODE and press AUTO to enter
GPS steer mode.
