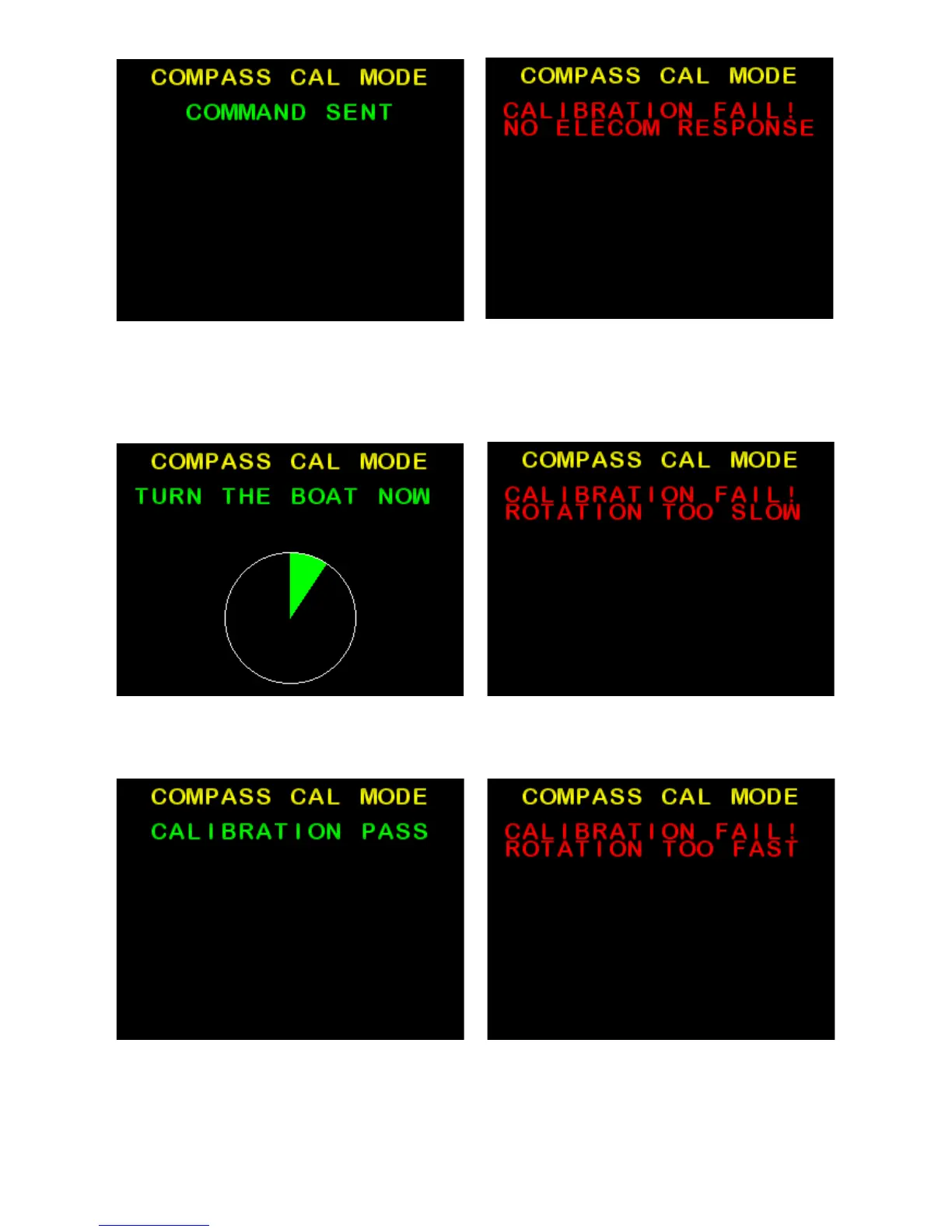

Figure 27: SP-110C sending
calibration command to Elecom, and
waiting for a response
Figure 28: Start turning the boat
clockwise at low speed, hold the turn.
Figure 29: Elecom calibration
successful
Figure 30: Elecom not communicating,
or does not support Calibration mode.
Figure 31: Calibration failed, vessel
Figure 32: Calibration failed, vessel
turning too slow turning too fast.
28 of 35
SI-TEX SP-110C
