NETWORK CONFIGURATION
The CLV can be used as part of a multidrop network of bar code reading stations which communicate with a host device as
shown in Figure 2-6. Using an RS 485 bus consisting of a two-conductor cable, the system can address up to 31 devices. The
SICK CLX 200 Network Controller is used to organize data and control polling.

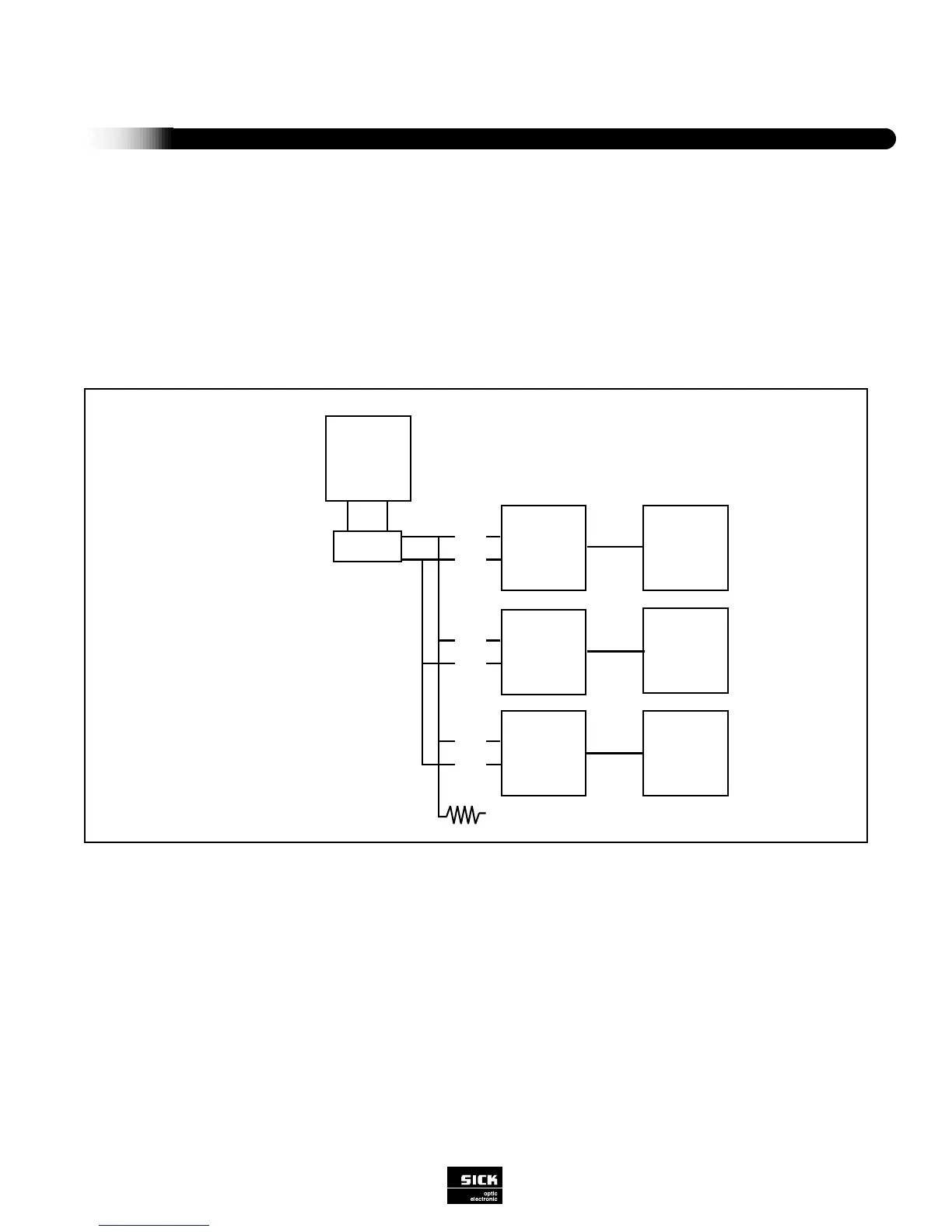

Figure 2-7 RS 485 Network Configuration via CLV Host Port
HOST DEVICE
DISTRIBUTION
UNIT
CLV
CLV
CLV
CLX 200
RS 422 or RS 232
R/T+
DISTRIBUTION
UNIT
DISTRIBUTION
UNIT
R/T-
R/T+
R/T-
R/T+
R/T-
Resistor Terminator
•
•
•
•
•
•
RS 485
RS 485
RS 485
RS 485
