READING CONFIGURATION
This function allows the user to program the CLV to read at selectable frequencies and select the appropriate minimum bar width
of the bar code to be read.

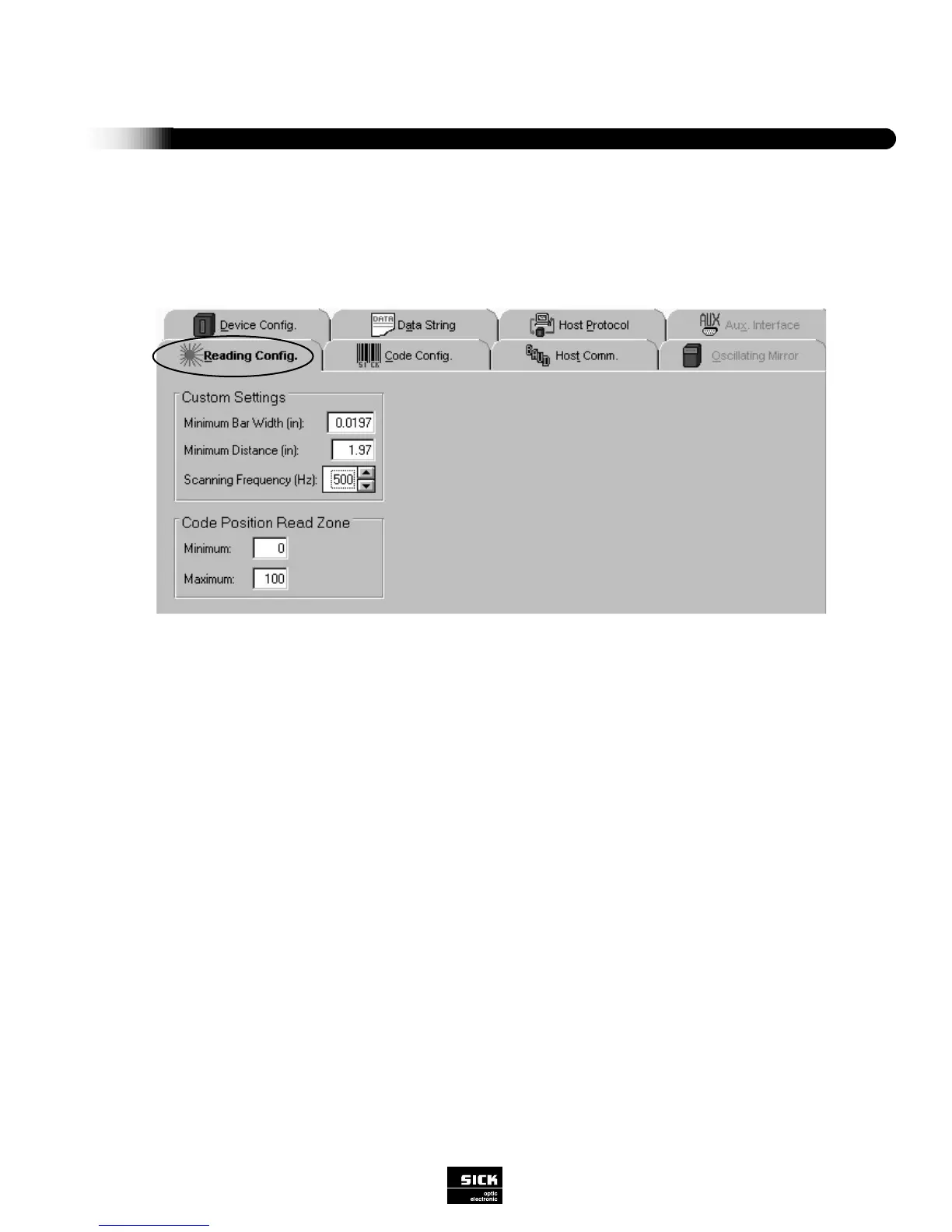

Fig. 3-14 Reading Configuration
Custom Settings (Minimum Bar Width/Minimum Distance/Scanning Frequency)
Minimum Bar Width ...... mm (millimeters)
Minimum bar width is adjustable in steps of 0.004 in (0.01 mm). This refers to the X-dimension (narrowest bar element width), of
the bar code. Set the scanner accordingly. The valid range is listed below..
default
CLV 410 .008 in to .040 in (.2 mm to 1.0 mm) .008 in (.20 mm)
CLV 412 .004 in to .008 in (.1 m to .2 m) .008 in (.20 mm)
Minimum Distance
This represents the closest distance from the scanner that the object will need to be scanned. Valid range listed below in 1 mm
(.04") increments:
default
CLV 410/412 .80 in to 16 in (20 mm to 400 mm) 1.0 in (25 mm)
To Next Page
