SWITCHING OUTPUTS
This is used to condition the three discrete outputs and the beeper of the CLV.

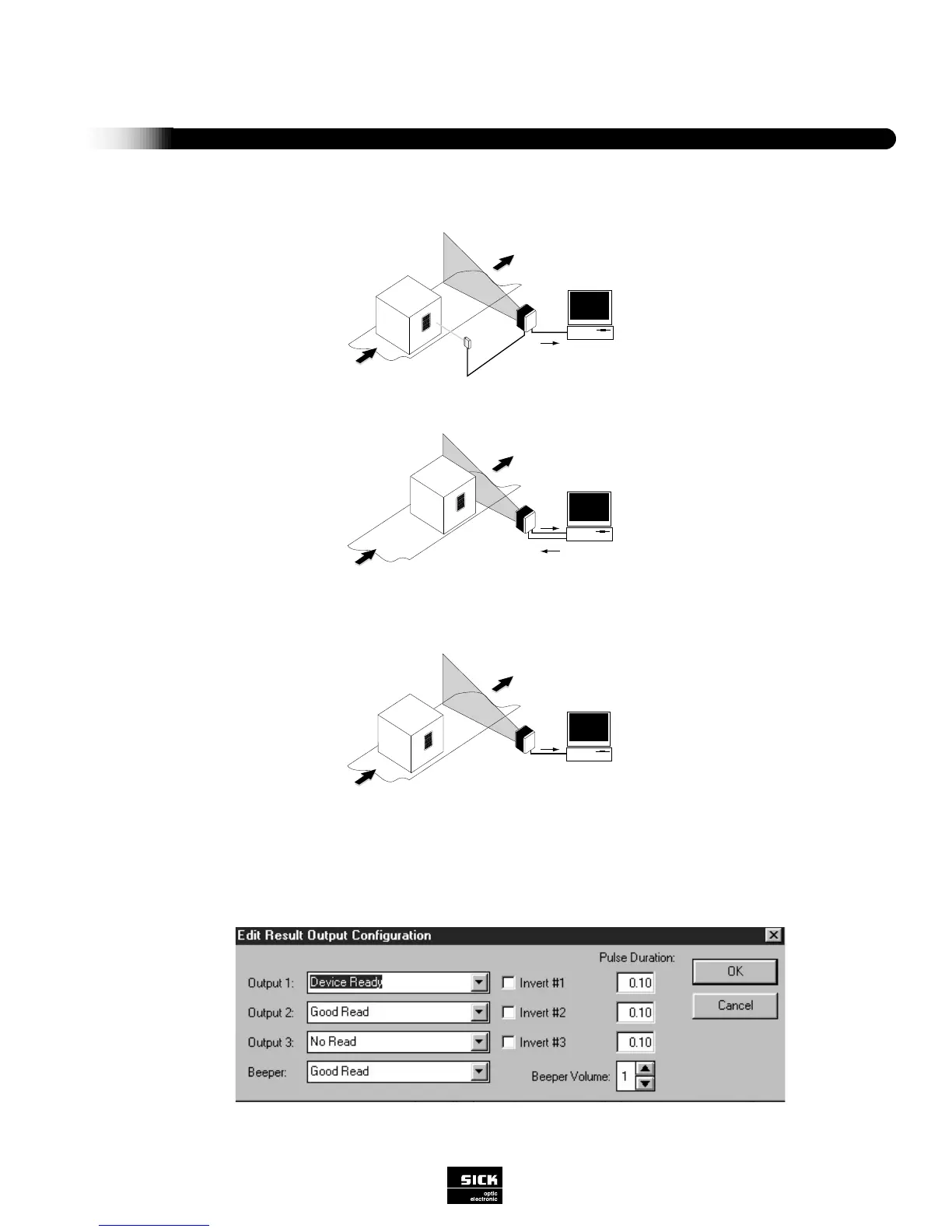

Figure 3-18 Switching Outputs Configuration
Host System
e.g. Computer/PLC/etc.
Host System
e.g. Computer/PLC/etc.
Host System
e.g. Computer/PLC/etc.
Switching input
Photoelectric switch
triggers reading gate
Serial Interface
Serial interface
triggers reading gate
Free-Running / Auto Clock
CLV triggers reading plate.
The beam is always on.
Data
Data
Data
Trigger
Figure 3-19 Trigger/Clocking Methods
