Chapter 3 Technical Information
CLV61x bar code scanner
14 © SICK AG · Germany · All rights reserved · Subject to change without notice 8015592/ZNI9/2017-06-13
Mounting

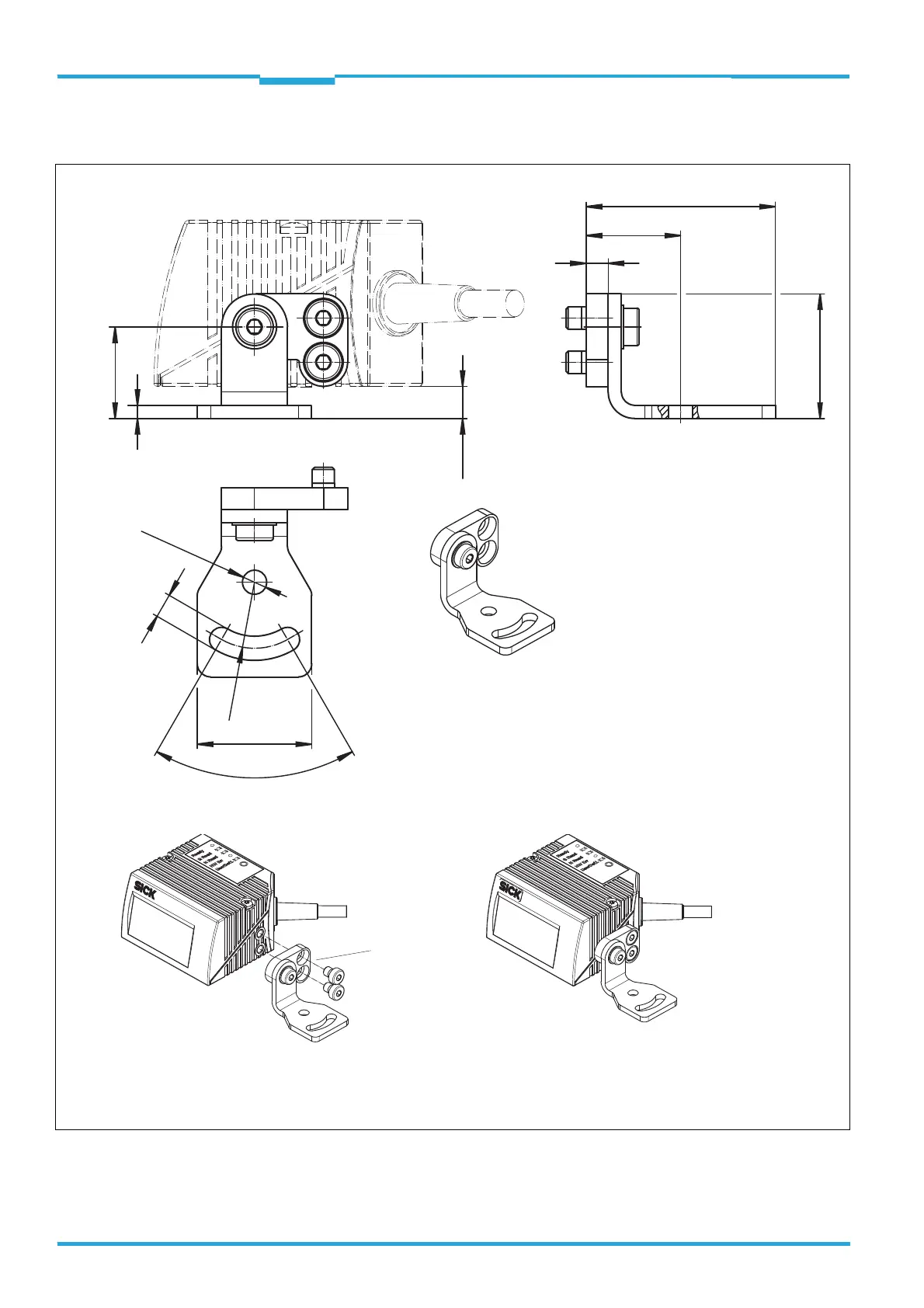

3.2.3 Dimensional Drawing of the Bracket with Adapter Plate No. 2042902
Included to fix the bar code scanner to the adapter plate:
2 x cylinder head screws M5 x 6, with hexagon head (AF3), self-locking
Mounting sample
All length measures in mm
Adapter plate
can be swivelled
and fixed freely
at the angle
20.8
3
(7.3)
43
21.5
5
28.3
26
60°
5.5
Ø 5.5
R 15
