Chapter 3 Operating Instructions
CLV62x Bar Code Scanner
18 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011965/S345/2008-04-16
Quick-Start
3.2 Establishing connection with the bar code scanner
¾ Communicate with the bar code scanner according to the selected data interface (RS-
232 or Ethernet) (see chapter 7.3 Establish communication with the bar code scanner,
page 58) and perform a scan.
TIP To establish a connection quickly and easily via Ethernet, the SOPAS-ET configuration soft-
ware has a C
ONNECTION WIZARD in the TOOLS menu.
3.3 Performing the reading

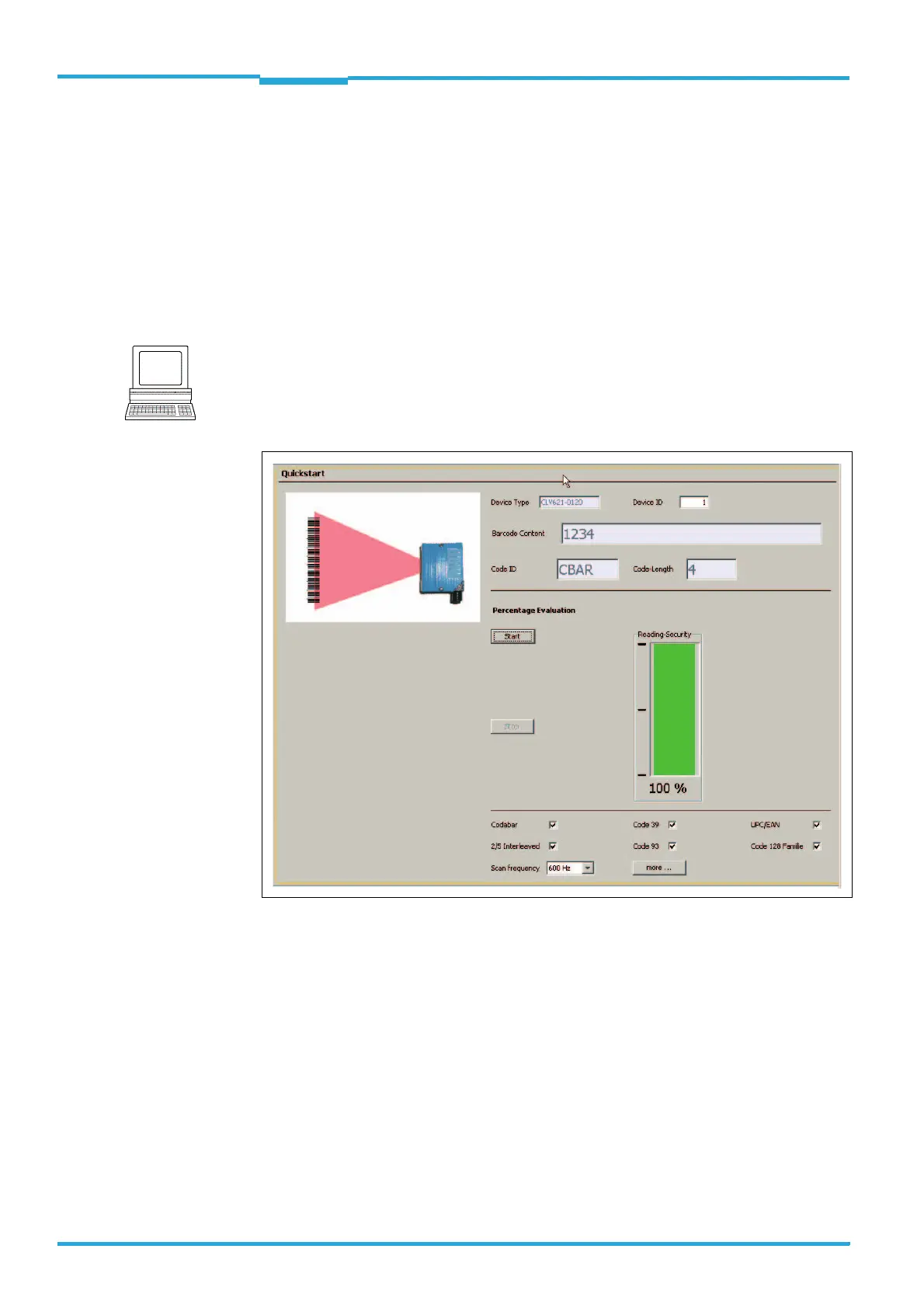

Fig. 3-1: Register tab Quickstart
Perform the reading:
1. Ensure that the relevant code types are activated on the register tab.
2. Carry out a test reading with a test bar code.
To achieve this, hold an object with a bar code in front of the bar code scanner's reading
window and trigger the reading by clicking S
TART. The default setting of the focus posi-
tion is 285 mm (11.2 in). If necessary, observe the bar code scanner's depth of fields
ranges in relation to the resolution (see chapter 10.2 Specification diagrams,
page 73).
The reading result is displayed in the B
ARCODE CONTENT display field.
The code reading reliability is specified in the relevant display field.
Note
With the SOPAS-ET configuration software, the QUICKSTART register tab contains the most im-
portant reading parameters for configuring and performing a bar code reading:
P
ROJECT TREE, CLV62X, QUICKSTART register tab
