Appendix
11.5.2
Dimensional drawing of quick release c
lamp no. 2025526

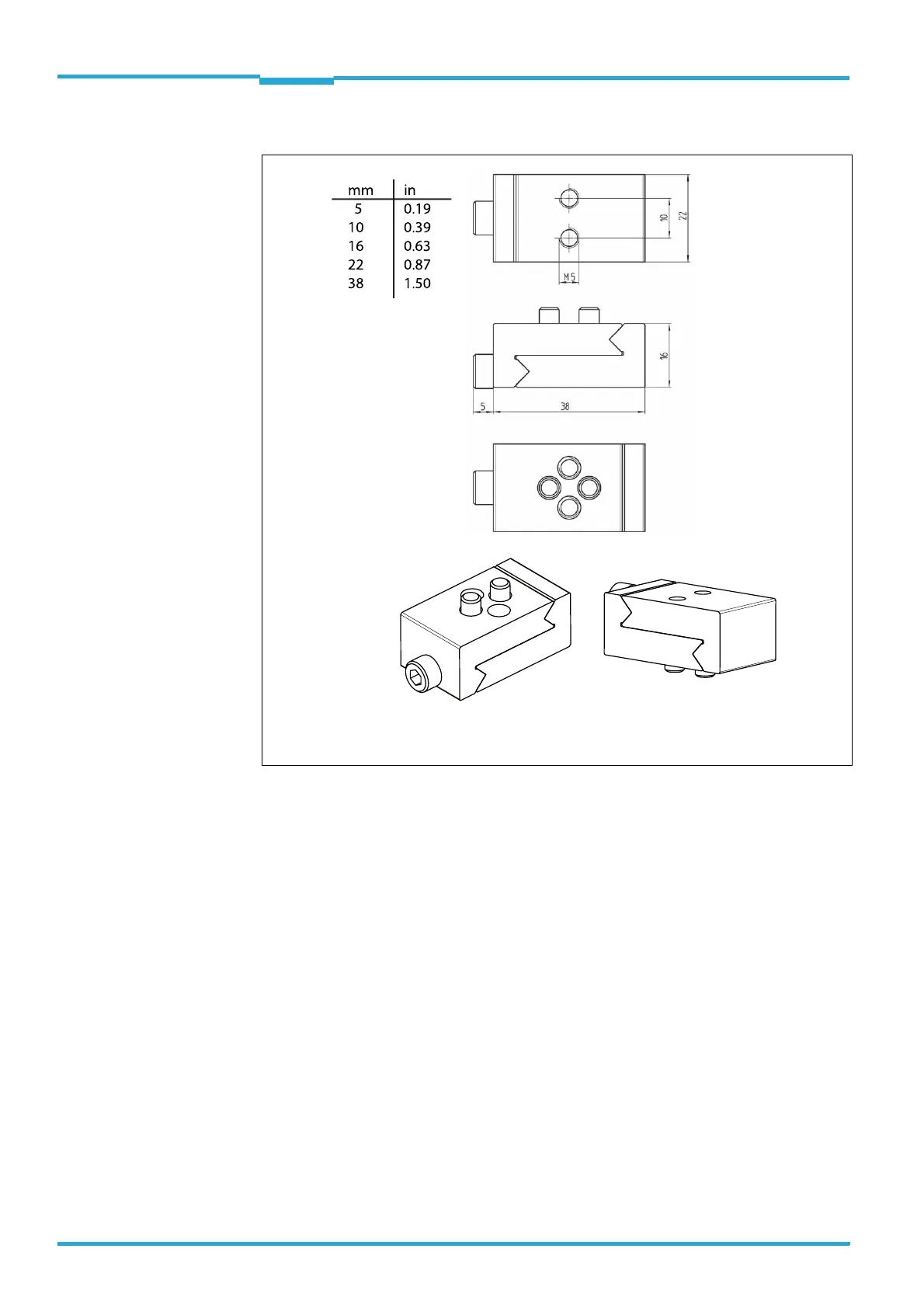

Fig. 11-2:
Dimensions of the
quick release clamp no. 2025526
Included to fix the bar code scanner to
the clamp:
2 x cylinder head screws M5 x 8 mm (0.3
2 in), with hexagon socket, self-locking
93
95
