Operating Instructions Chapter 11
CLV62x Bar Code Scanner
Appendix
8011965/S345/2008-04-16 © SICK AG · Division Auto Ident · Germany · All rights reserved 89

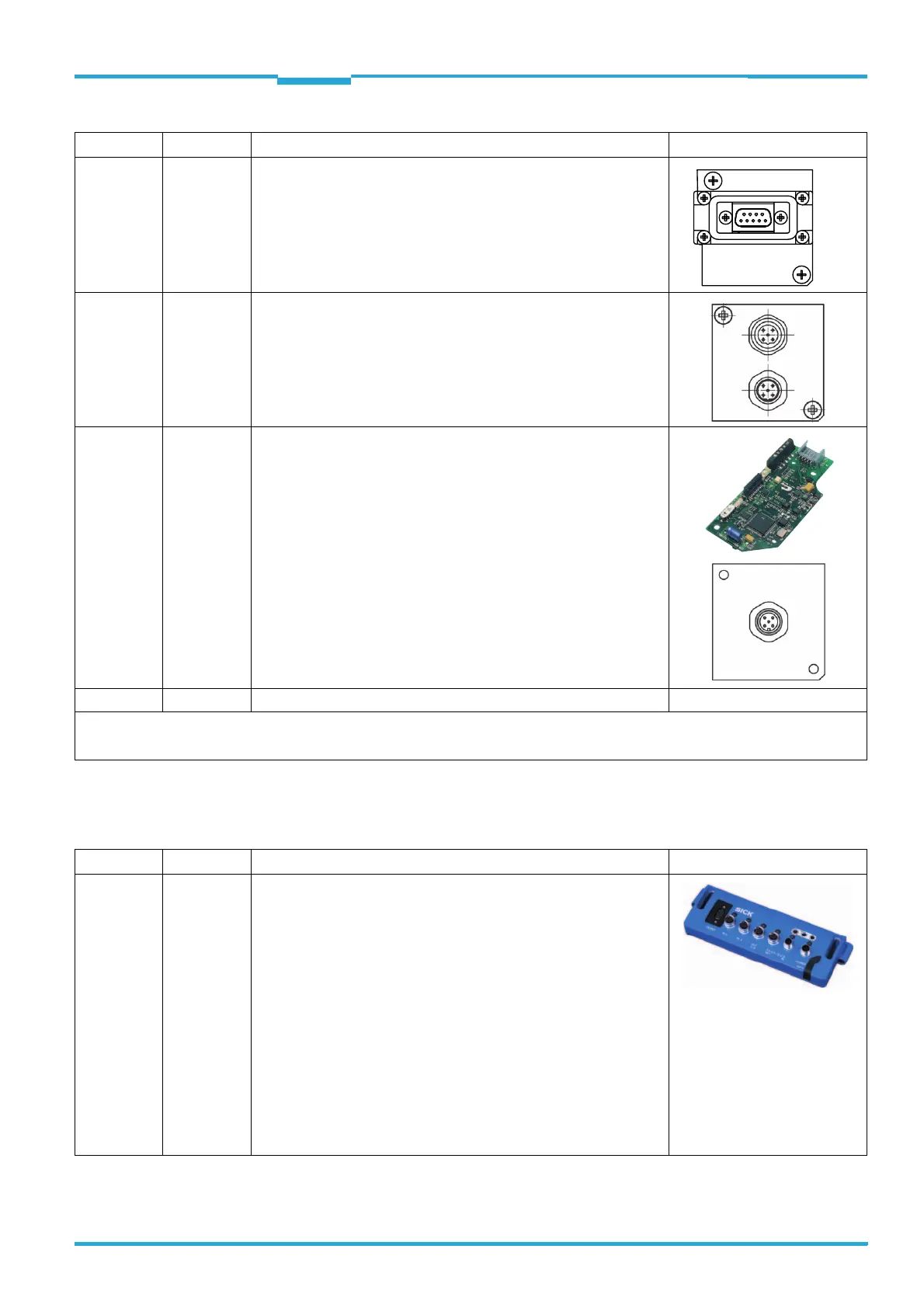

Tab. 11-5: In stock accessories: Extensions for connection modules
11.4.5 Accessories: Separate field bus modules
Tab. 11-6: In stock accessories: Separate field bus modules
1026643 CMF400-
1101
As CMF400-1001, but with:
• Changeable front panel: 9-pole D-Sub socket (bus), enclosure rating
IP65
1028663 CMF400-
1201
As CMF400-1001, but with:
• Changeable front panel: 2 x 5-pole M12 circular connector (1 x plug,
1 x socket) for bus, enclosure rating IP65
1026242 CMF400-
2101
Field bus gateway (connection module field bus)
• Installed in connection module CDM420
• For connecting a CLV62x (from firmware V 1.00) via RS-232 data in-
terface to DeviceNet (slave)
• Changeable front panel: 5-pole M12-plug (bus), enclosure rating
max. IP 65
• On the gateway in the device, 5-pole terminal strip for connecting
two digital inputs and outputs each
• Connection to CDM420 via connector
• Operating voltage 18 ... 30 V DC using CDM490, current consump-
tion 2 W
• Operating temperature 0 ... +40 °C
• Configuration with PC software "ComPro" (included in delivery)
• Configuration with SOPAS-ET from Q4/2007
6029030 - Profibus connector, IP 65, for CMF400-1101 -
1) Simultaneous operation together with power supply module CMP490 not possible
2) Simultaneous operation together with display supply module CMD400 not possible
Order no. Type Description Display
Order no. Type Description Display
1041251 CDF600-
0100
PROFIBUS DP Proxi
• Connection of a CLV62x (from firmware V2.50) via RS-232 data in-
terface to PROFIBUS DP
• 1 x 15-pole D-Sub-HD socket for CLV62x
• 1 x 5-pole M12 plug/socket for bus connection
• 1 x 5-pole M12 plug for operating voltage
• 1 x 4-pole M8 socket for configuration (Aux, RS-232)
• 6 x LED (status indicators)
• Operating voltage 24 V DC ± 20 %, current consumption type 5 W
• Aluminium die casting housing, enclosure rating IP 65
• Operating temperature 0 ... + 40 °C (32 ... 104 °F)
• Dimensions 225 mm (8.6 in) x 76,5 mm (3.03 in) x 47 mm (1.9 in)
(without direct connections)
• Weight approx. 590 g (9.17oz)
• Configuration: via 3 x rotary switches and SOPAS-ET
