Operating
Instruc
tions
Chapter
11
CLV62x Bar Code Scanner
Appendix
8011965/S345/200
8-04-16
©
SICK AG · Division
Auto Ident · Germany
· All ri
ghts reserved
93
11.5
Dimensional drawing accessories
11.5.1
Dimensional drawing fixing bracket no. 20
20410

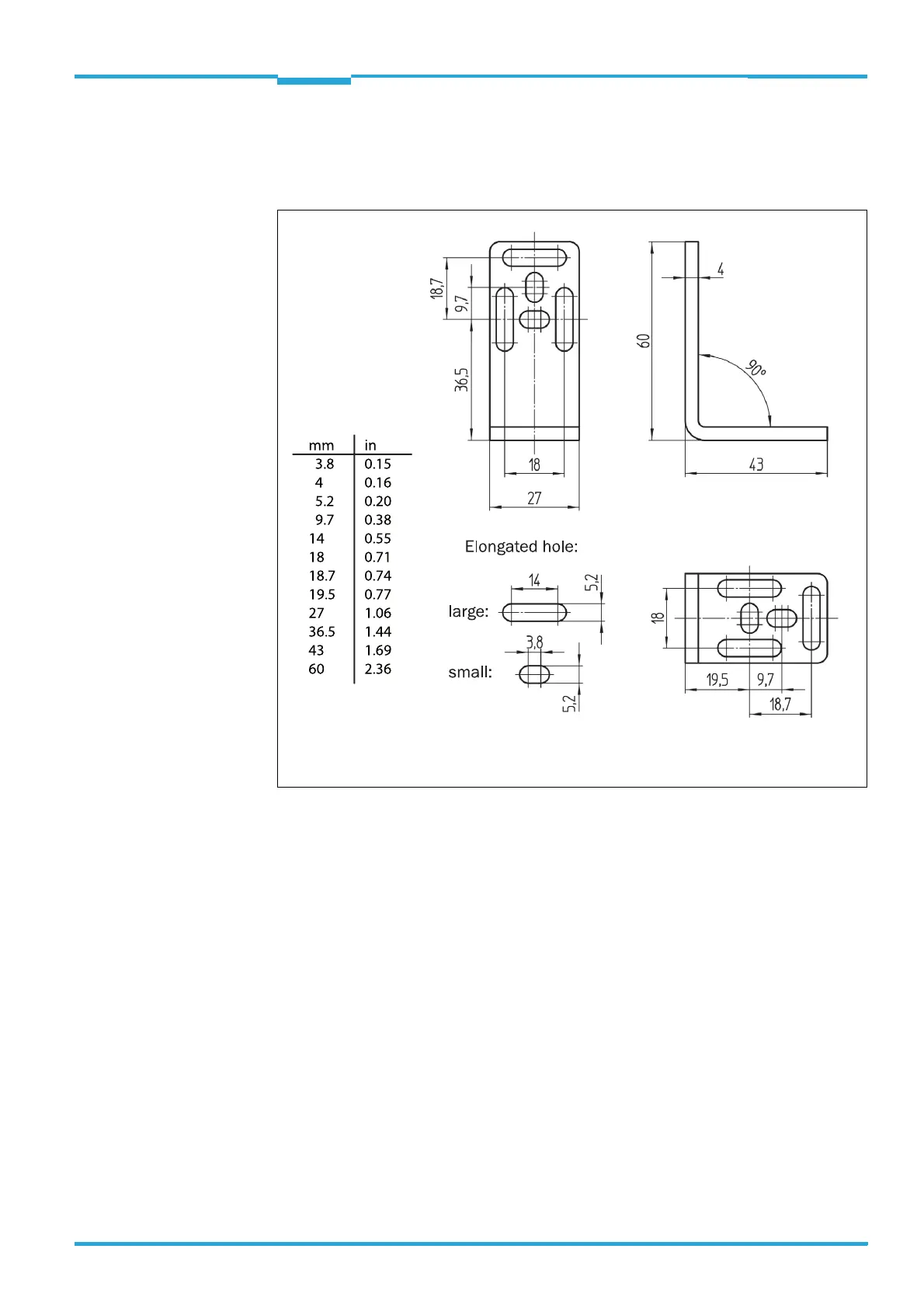

Fig. 11-1:
Dimensions of th
e fixing bracket no. 2020410
Included to fix the bar code scanner to
the bracket:
2 x cylinder head screws
M5 x 8 mm (0.32 in),
with hexagon socket,
self-locking
92
94
