Chapter 11 Operating Instructions
CLV62x Bar Code Scanner
86 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011965/S345/2008-04-16
Appendix
11.4.2 Accessories: Mounting devices

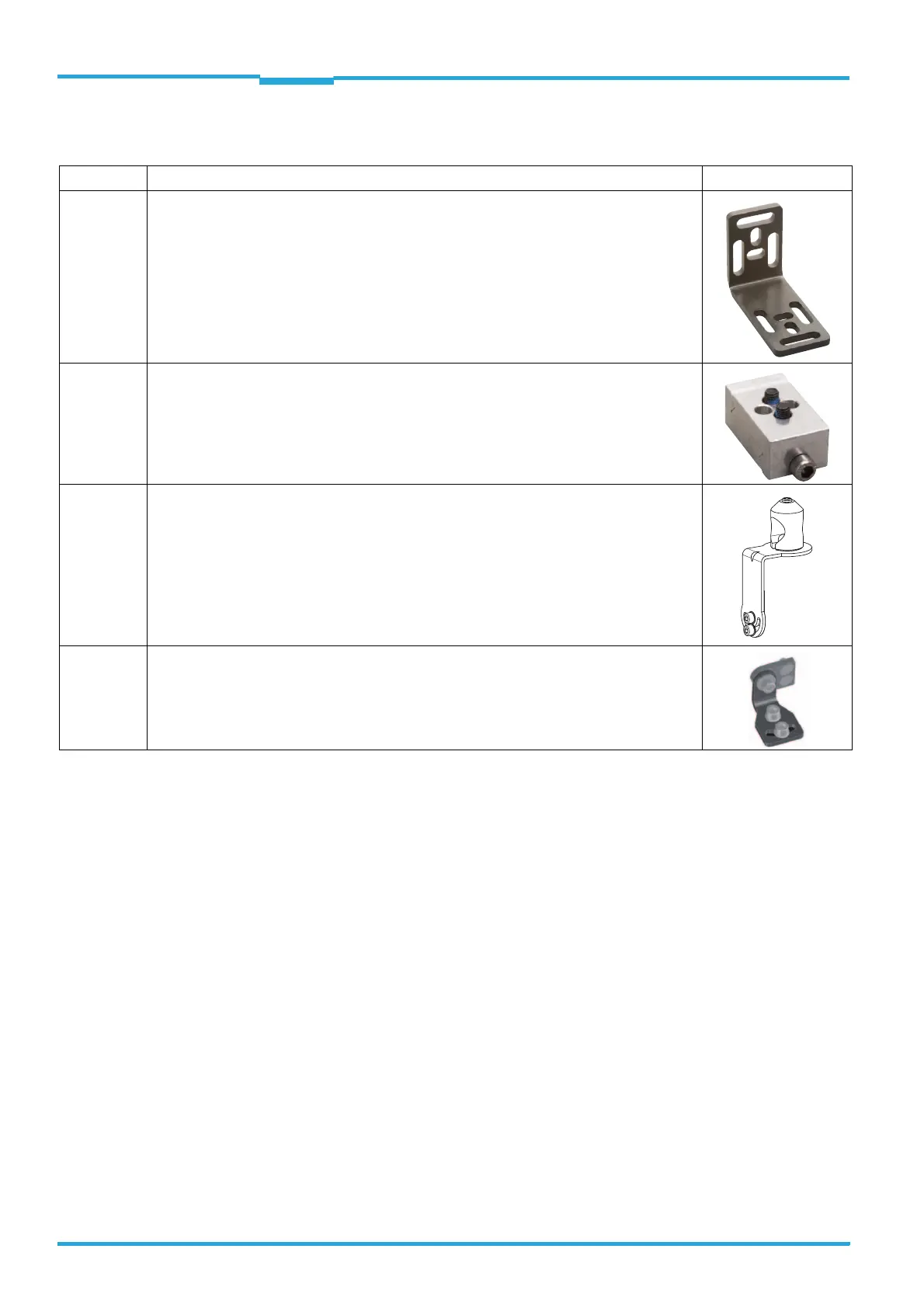

Tab. 11-3: In stock accessories: Installation accessories
Order no. Description Fig.
2020410 Fixing bracket incl. installation material.
For dimensional drawing, see chapter 11.5.1 Dimensional drawing fixing bracket no.
2020410, page 93
2025526 Quick release clamp incl. installation material.
For dimensional drawing, see chapter 11.5.2 Dimensional drawing of quick release clamp
no. 2025526, page 94
2042802 Round rod holders for round rods and tubes with an outer diameter of 12...20 mm (0.47 ...
0.8 in), incl. installation material.
For dimensional drawing, see chapter 11.5.3 Dimensional drawing of round rod holder no.
2042802, page 95
2042902 Angle with adapter plate incl. installation material.
For dimensional drawing, see chapter 11.5.4 Dimensional drawing of bracket with adapter
plate no. 2042902, page 95
