Operating
Instruc
tions
Chapter
6
CLV62x Bar Code Scanner
Electrical installation
8011965/S345/200
8-04-16
©
SICK AG · Division
Auto Ident · Germany
· All ri
ghts reserved
51
6.4.5
Wiring switching inputs
If the bar code scanner's reading process should be triggered by an external sensor, the
reading pulse sensor is connected to the "
Sensor 1
" swit
ching input.

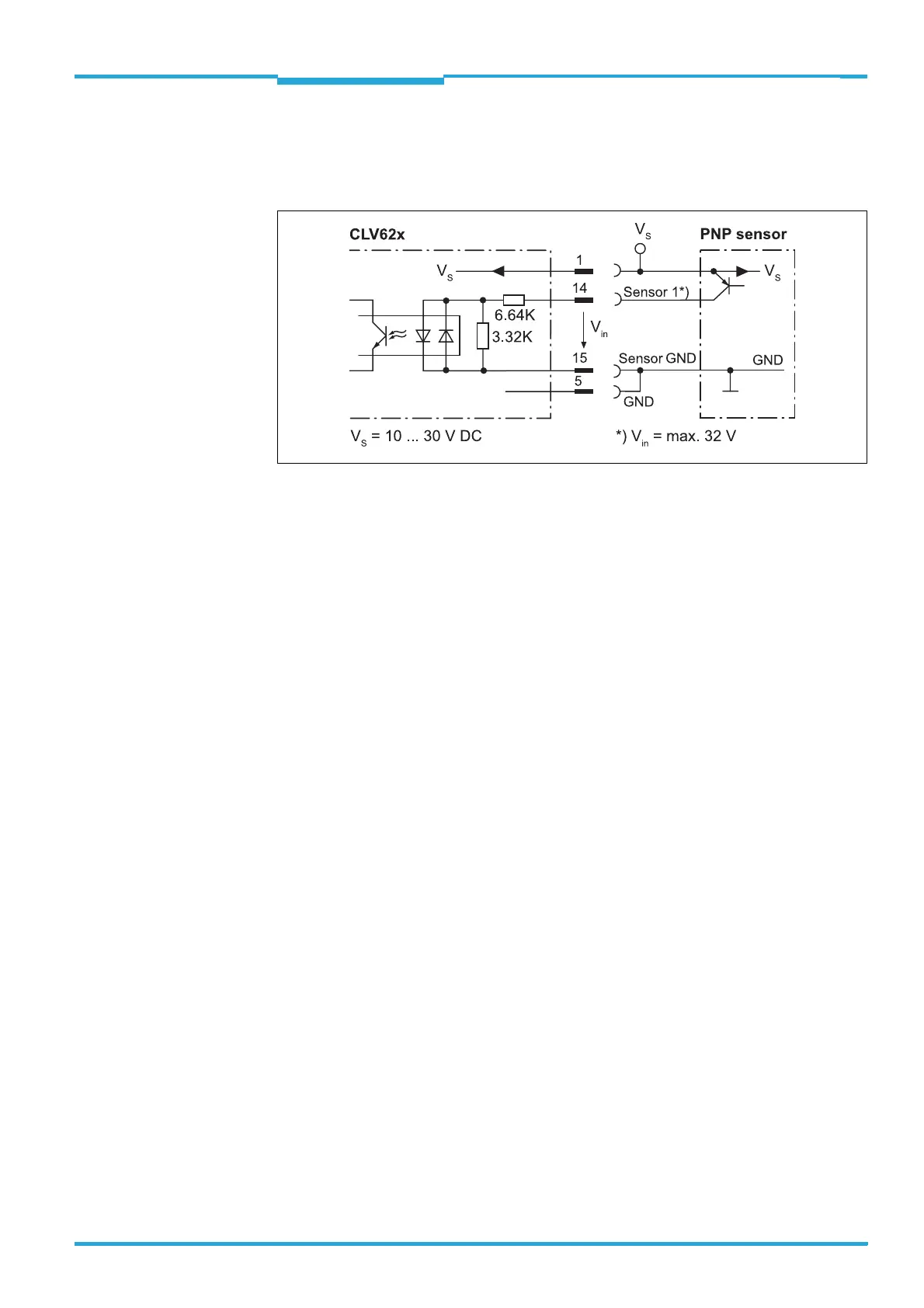

Fig. 6-6:
Wiring the “Sensor 1“ switch
in
g input on the 15-pole D-Sub-HD plug
50
