10.3.4 Deflection range of line scanner with oscillating mirror

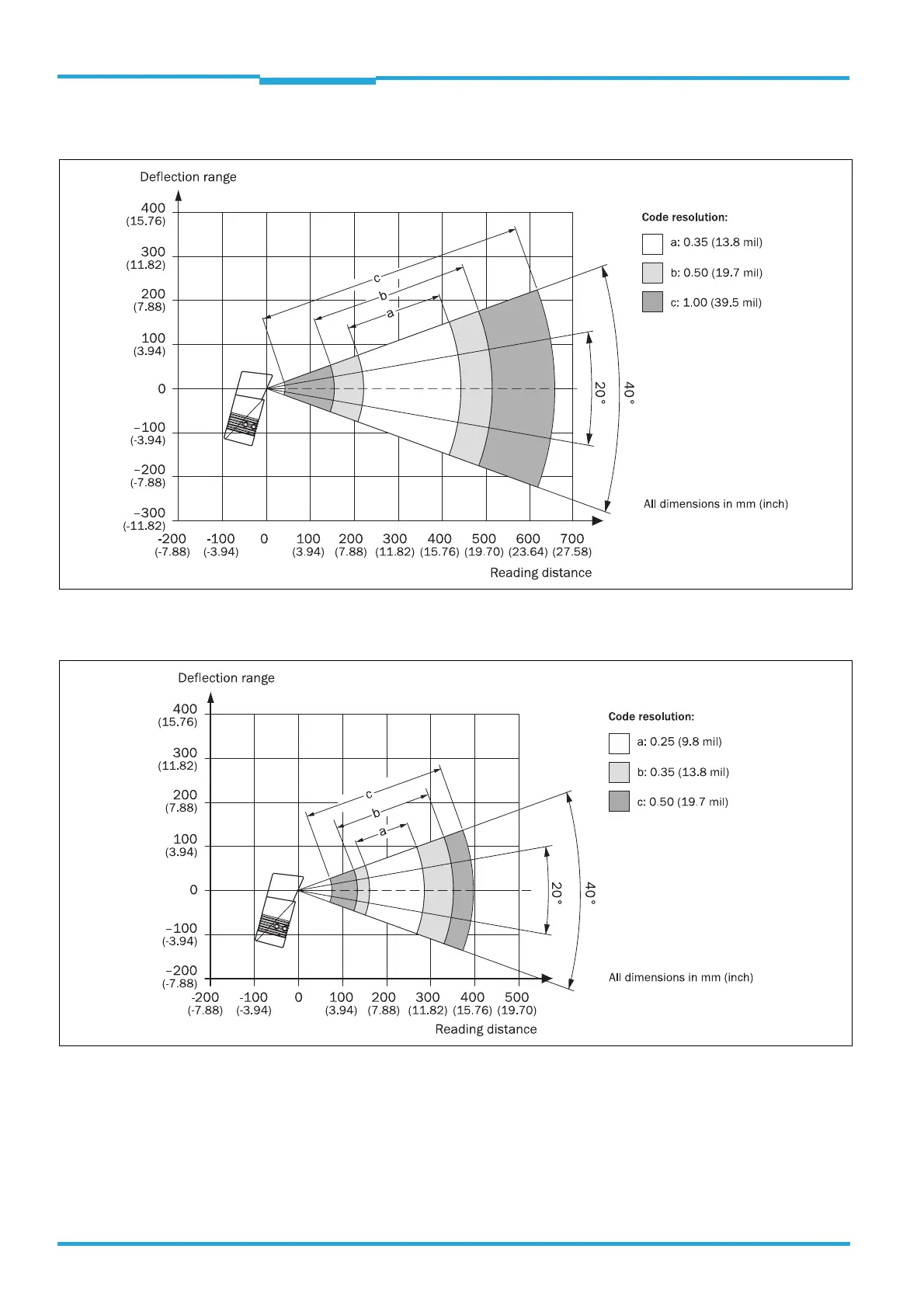

Fig. 10-17: Deflection range depending on the reading distance, angle of deflection and resolution with a focus position F = 280 mm
(11 in)
Fig. 10-18: Deflection range depending on the reading distance, angle of deflection and resolution with a focus position F = 215 mm
(8 in)
