Operating
Instruct
ions
Chapter
10
CLV640 Bar Code Scanner
Technical data
8011975/0000/2008-04-14
©
SICK AG · Division
Auto Ident · Germany
· All ri
ghts reserved
105
10.4.4

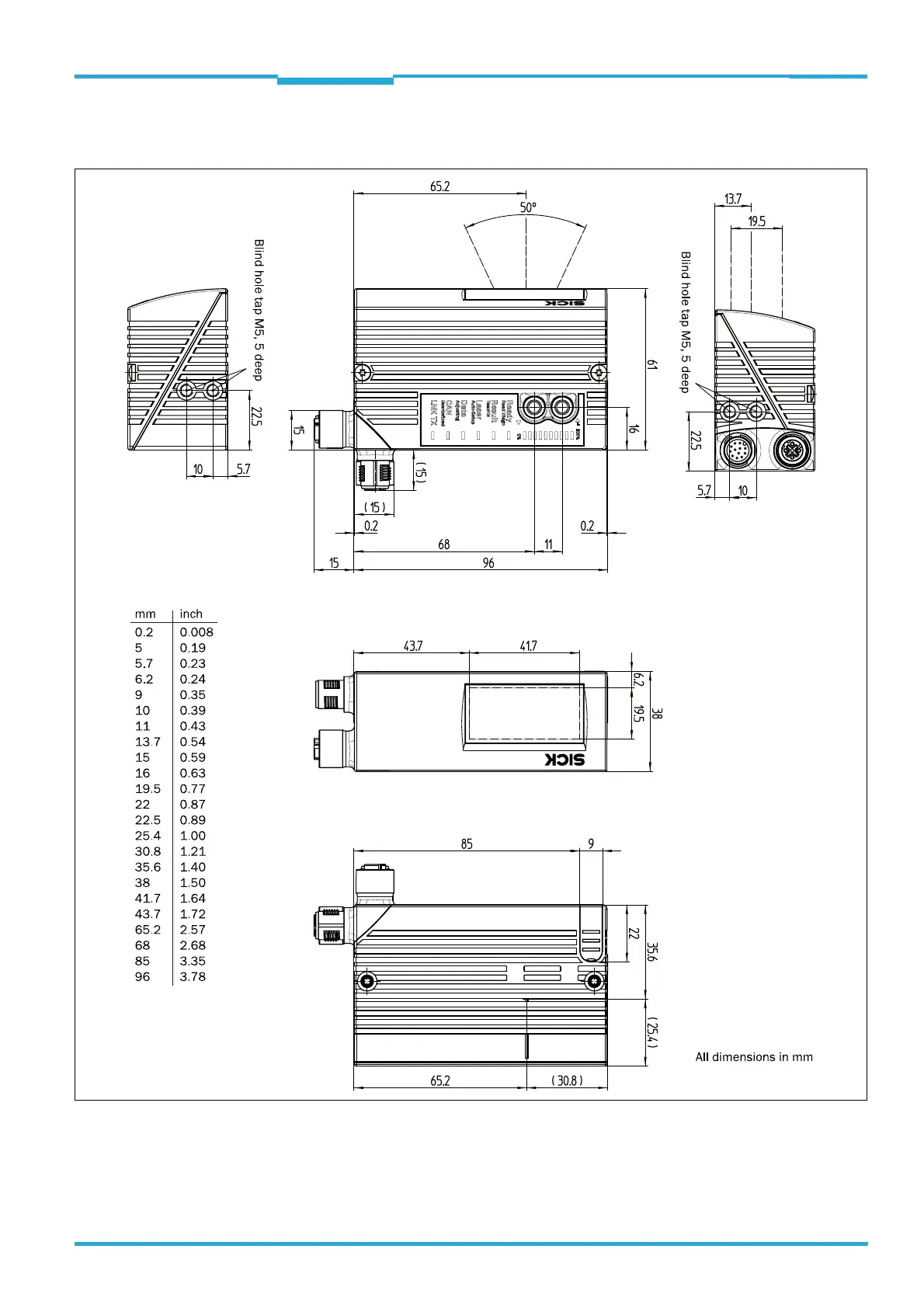

CLV640-0120 and CLV640-1120 Bar Code Scanner dimensional d
rawing
Fig. 10-23:
Ethernet version:
Dimensions of the
bar code sc
anner with front reading wind
o
w (CLV640-0120 and CLV640-1120)
104
106
