Operating Instructio
ns
CLV640 Bar Code Scanner
118
©
SICK AG · Division Auto Ident · German
y
· All rights reserved
8011975/0000/2008-04-1
4
Appendix
11.5.2

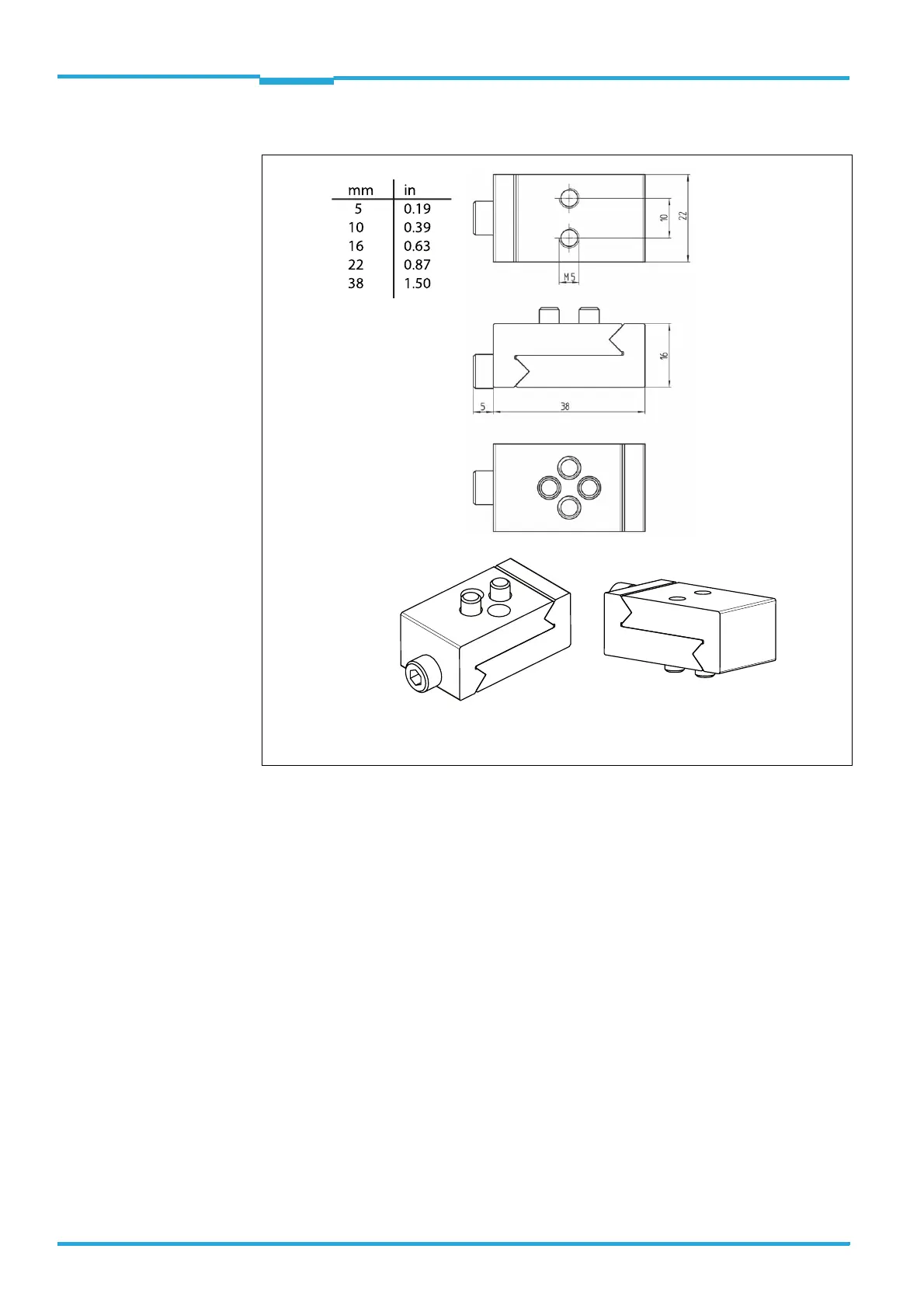

Dimensional drawing of quick release clamp no. 2025526
Fig. 11-2:
Dimensions of the
quick release clamp no. 2025526
Included to fix the bar code scanner to
the clamp:
2 x cylinder head screws M5 x 8 mm (0.3
2 in), with hexagon socket, self-locking
117
119
